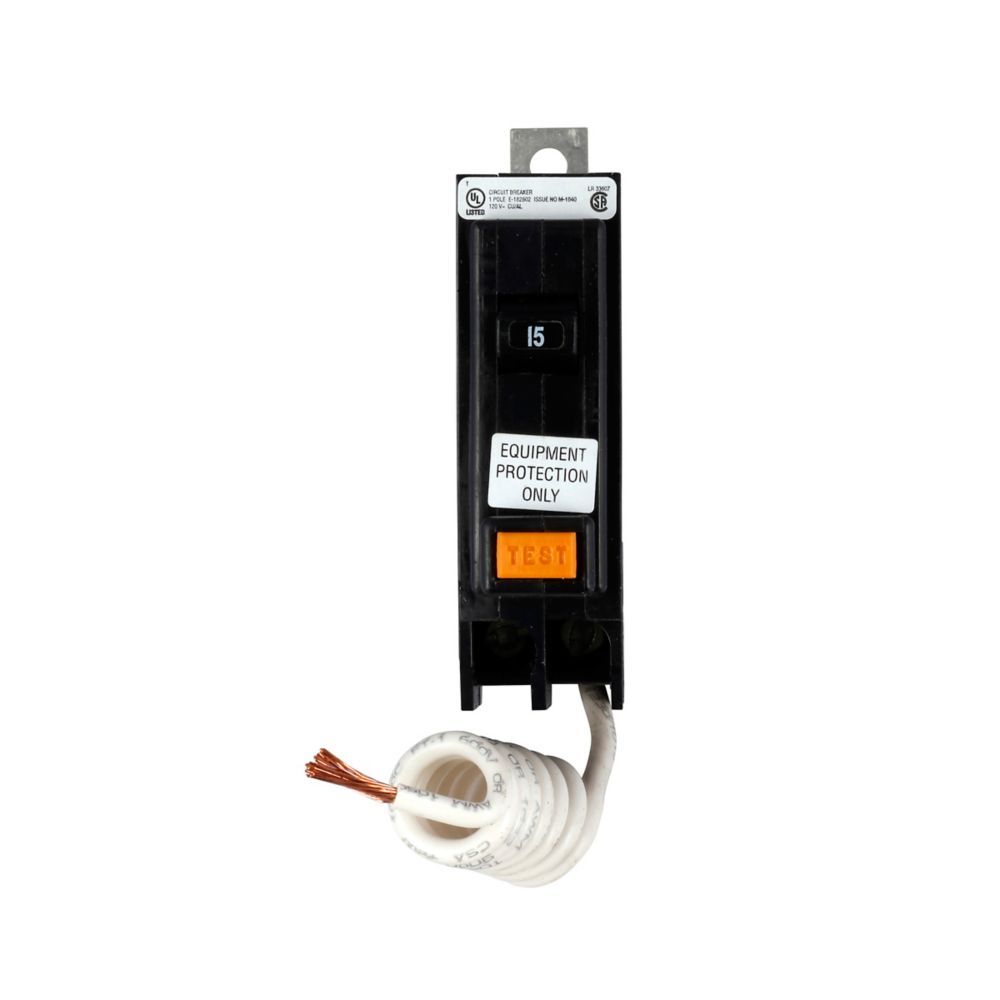

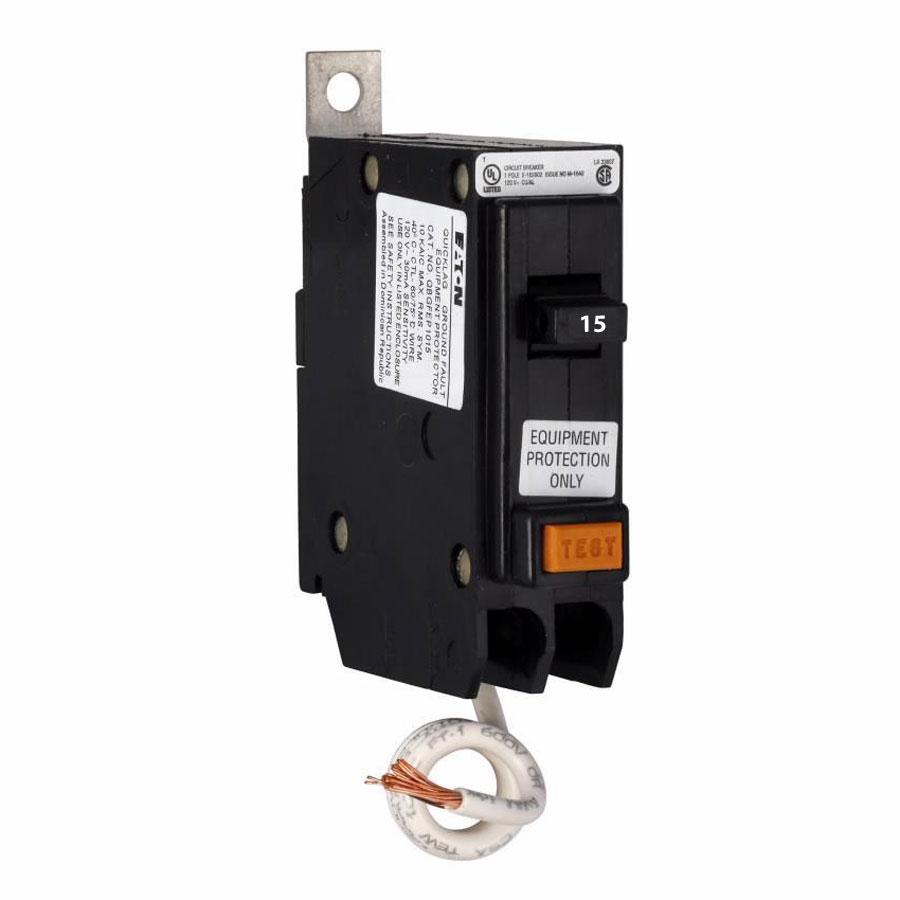

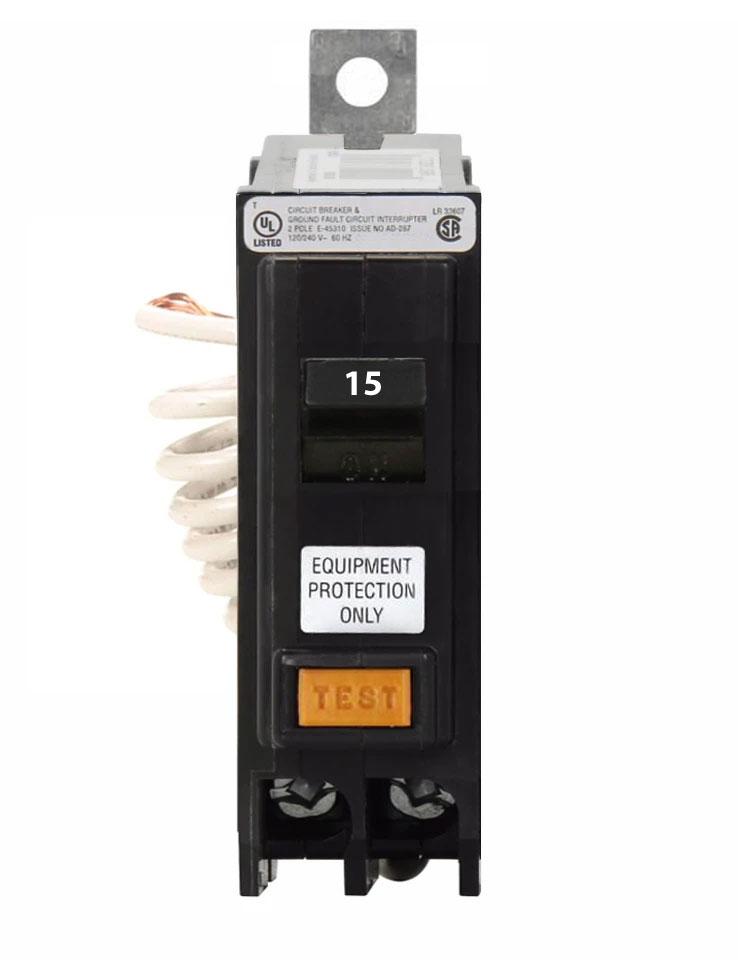

QBGFEP1015 | Cutler Hammer 15 A 1-Pole 120 V Molded Case GFEP Circuit Breaker
- Regular price
- $295.00
- Sale price
- $295.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBGFEP1015
Description
The Cutler Hammer QBGFEP1015 is a single-pole molded case circuit breaker engineered for reliable ground fault equipment protection. Designed for 120-volt systems with a 15-amp current rating, this breaker offers both thermal-magnetic trip performance and 30 mA ground fault protection. The QBGFEP1015 is ideal for protecting sensitive electrical equipment from damaging line-to-ground faults in residential, commercial, and industrial installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cutler Hammer (Eaton) |
| Category | Circuit Breaker |
| Part Number | QBGFEP1015 |
| Subcategory | Molded Case |
| Family | QUICKLAG GFEP |
| Type | QBGFEP |
| Poles | 1 |
| Amperage | 15 A |
| Voltage Rating | 120 V AC |
| Trip Sensitivity | 30 mA Ground Fault |
| Interrupting Capacity (AIC) | 10 kA @ 120 V |
| Trip Function | Thermal Magnetic (Long-Time & Instantaneous) |
| Mounting Style | Bolt-On |
| Phase | Single-Phase |
| Temperature Range | -13 °F to 158 °F (-25 °C to 70 °C) |
| Certifications | UL 943, CSA Approved |
| Country of Origin | Dominican Republic |
| Dimensions (H × W × L) | 3.5″ × 1″ × 3″ |
| Weight | 0.4 lb |
Information About QBGFEP1015
The QBGFEP1015 is part of Eaton’s QUICKLAG GFEP (Ground Fault Equipment Protection) series, developed to deliver dependable overcurrent and ground-fault protection in compact bolt-on configurations. This model combines a thermal-magnetic trip unit for long-time and instantaneous response with a 30 mA ground-fault trip threshold, preventing nuisance tripping while safeguarding connected equipment. It is UL 943 and CSA approved, ensuring compliance with safety standards for heat trace and specialty applications. Its bolt-on design enables secure mounting in compatible load centers and panels, simplifying installation and maintenance.
Key Features:
- Ground Fault Protection: Provides 30 mA equipment protection against line-to-ground faults.
- Thermal-Magnetic Trip Unit: Ensures both overload and short-circuit protection with precise response.
- Compact Bolt-On Design: Simplifies panel installation and maintenance with a secure fit.
- High Interrupting Capacity: Rated 10 kA at 120 V AC for dependable fault interruption.
- Single-Pole Configuration: Ideal for dedicated 120-volt branch circuits.
- Durable Construction: Built for demanding environments with wide operating temperature tolerance (-25 °C to 70 °C).
- Certified Safety Compliance: UL 943 and CSA listings ensure tested performance and safety.
- Eaton QUICKLAG Family: CompatibleAG Family:** Compatible with a broad range of Eaton and Cutler-Hammer load centers.
The QBGFEP1015 delivers the reliability and precision required for safe, efficient electrical protection in equipment-sensitive and heat-trace circuit applications.
