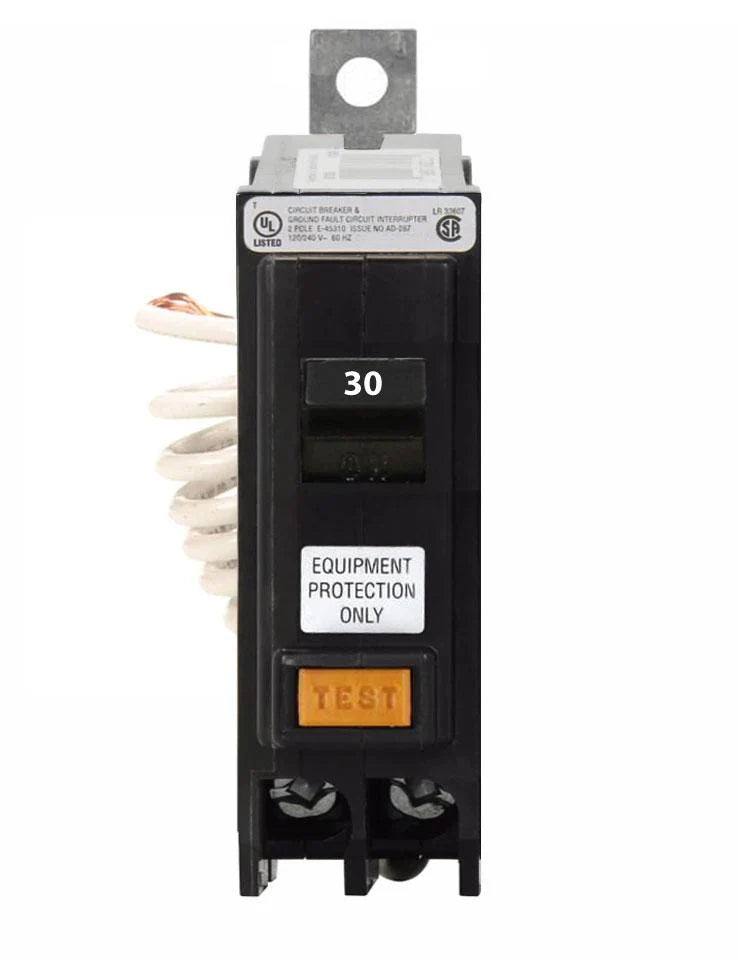

QBGFEP1030 | Eaton Quicklag QBGFEP 1-Pole 30A 120V GFEP Thermal Magnetic Circuit Breaker
- Regular price
- $242.00
- Sale price
- $242.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QBGFEP1030
Description
The Eaton QBGFEP1030 is a molded case circuit breaker designed to provide overcurrent protection and Ground Fault Equipment Protection (GFEP) in single-phase electrical systems. Rated for 120-volt operation with a 30-amp capacity, it enhances equipment safety while ensuring reliable power distribution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | QBGFEP1030 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Quicklag |
| Type | QBGFEP |
| Voltage | 120 V |
| Amperage | 30 A |
| Phase | 1 |
| Poles | 1 |
| Protection | Thermal Magnetic |
| Additional Protection | GFEP – Ground Fault Equipment Protection |
| Functions | LI – Long-Time and Instantaneous |
| Connection | Bolt-On |
| AIC Rating | 10 kA @ 120 V |
| Application | Residential and commercial distribution |
| Breaker Type | GFEP Molded Case Breaker |
Information About QBGFEP1030
The QBGFEP1030 is part of Eaton’s Quicklag series and is engineered to provide equipment-level ground fault protection alongside traditional overcurrent protection. Designed for 120-volt single-phase circuits, it supports a 30-amp load and is well suited for applications such as heating equipment, outdoor circuits, and specialized installations where GFEP is required rather than Class A personnel protection. Its bolt-on mounting configuration ensures secure installation in compatible panelboards, maintaining stable electrical performance. With LI trip characteristics and a thermal magnetic mechanism, the breaker responds effectively to overloads, short circuits, and equipment-level ground fault conditions.
Key Features
- GFEP protection: Helps prevent equipment damage by detecting hazardous ground faults.
- Single-pole configuration: Supports standard 120V branch circuits.
- 30-amp rating: Suitable for moderate-load residential and commercial applications.
- Thermal magnetic trip: Provides overload and instantaneous fault protection.
- 10 kA interrupt rating: Safely clears typical residential and commercial fault levels.
- Bolt-on connection: Ensures secure mechanical and electrical installation.
- LI trip functionality: Supports reliable long-time overload and rapid short-circuit response.
- Quicklag family design: Ensures consistent performance and compatibility.
The QBGFEP1030 delivers the reliability and precision required for safeguarding electrical equipment while maintaining stable and safe circuit operation.
