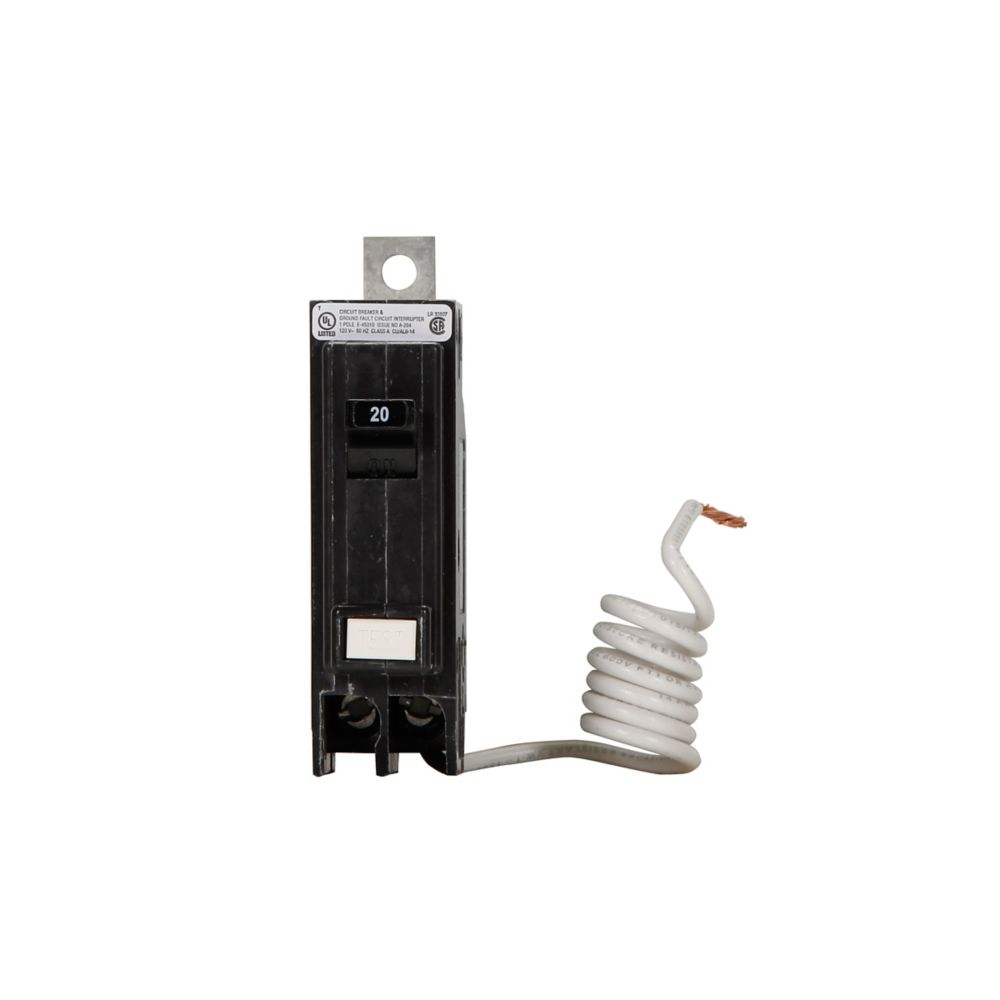

QBGFT1020 | Eaton QB GFCI Circuit Breaker
- Regular price
- $137.00
- Sale price
- $137.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QBGFT1020
Description
The QBGFT1020 is an Eaton QB GFCI circuit breaker designed for ground fault protection. It features a 20A current rating and a 10 kAIC interrupting capacity. This single-pole circuit breaker operates at 120/240V and is non-interchangeable. It has a trip sensitivity of 5 mA and supports wire sizes of #14–10 Cu and #12–10 Al. The product model is QBGF.
Technical Specifications
|
PRODUCT NAME |
Eaton QB GFCI circuit breaker |
|
CATALOG NUMBER |
QBGFT1020 |
|
PRODUCT LENGTH/DEPTH |
1 in |
|
PRODUCT HEIGHT |
1 in |
|
PRODUCT WIDTH |
1 in |
|
PRODUCT WEIGHT |
0.4 lb |
|
CIRCUIT BREAKER TYPE |
QBGF |
|
MOUNTING METHOD |
Bolt-on |
|
NUMBER OF POLES |
Single-pole |
|
TYPE |
Ground fault circuit breaker |
|
AMPERAGE RATING |
20 A |
|
INTERRUPT RATING |
10 kAIC |
|
TRIP TYPE |
Non-Interchangeable |
|
TRIP RATING |
5 mA trip sensitivity |
|
VOLTAGE RATING |
120/240 V |
Information About QBGFT1020
The QBGFT1020 is an Eaton QB GFCI circuit breaker designed for applications requiring ground fault protection. This circuit breaker, part of Eaton's QB series, is classified as a ground fault circuit breaker (GFCI). The unit has an amperage rating of 20A, making it suitable for circuits requiring this current rating. It features an interrupt rating of 10 kAIC, providing adequate protection against fault currents.
The QBGFT1020 is a single-pole circuit breaker, designed to handle electrical connections for one circuit. It operates on a voltage rating of 120/240V, allowing it to be used in a variety of residential and commercial applications. The breaker is non-interchangeable, meaning it cannot be substituted with another type within the panel, ensuring specific application use.
One of the critical features of the QBGFT1020 is its trip sensitivity, rated at 5 mA. This sensitivity level ensures the breaker will trip and cut off the electrical supply when a ground fault of 5 milliamperes or greater is detected, providing essential protection against electric shock hazards. This makes it particularly suitable for use in areas where safety is a priority, such as bathrooms, kitchens, and outdoor spaces.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
