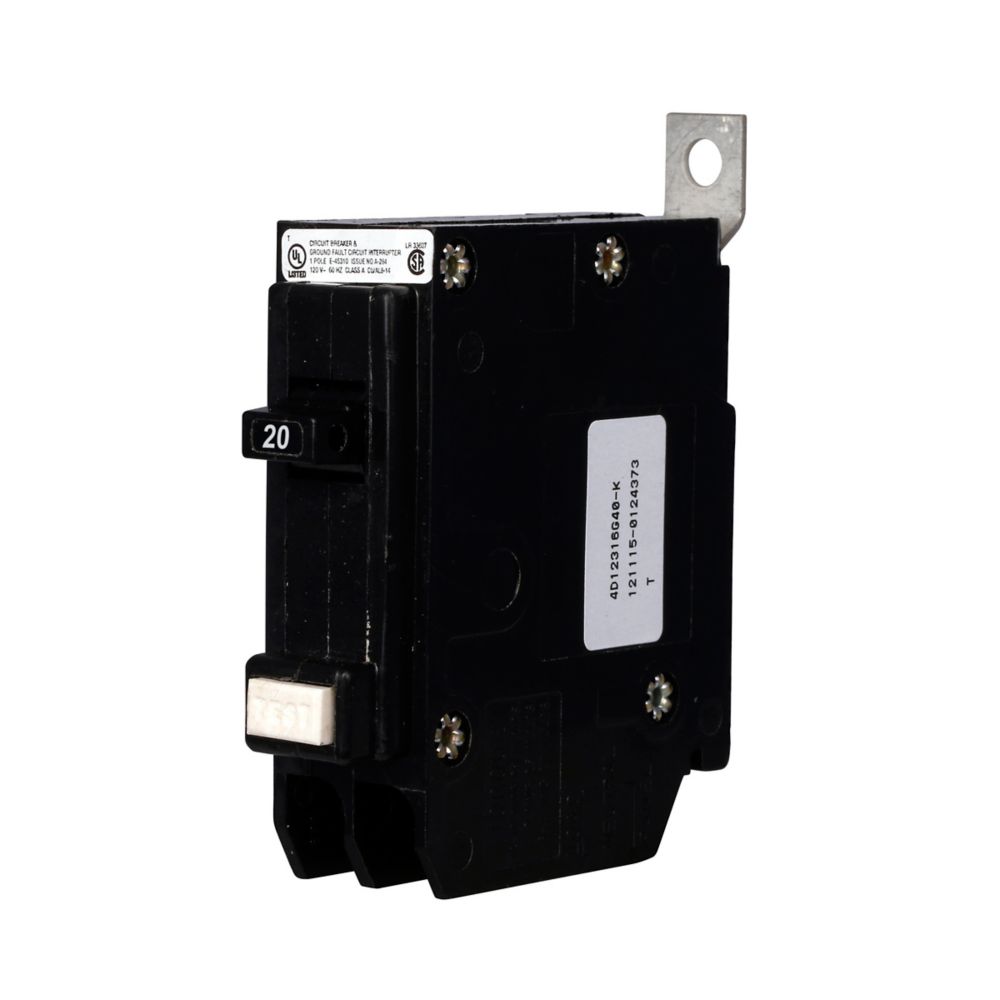

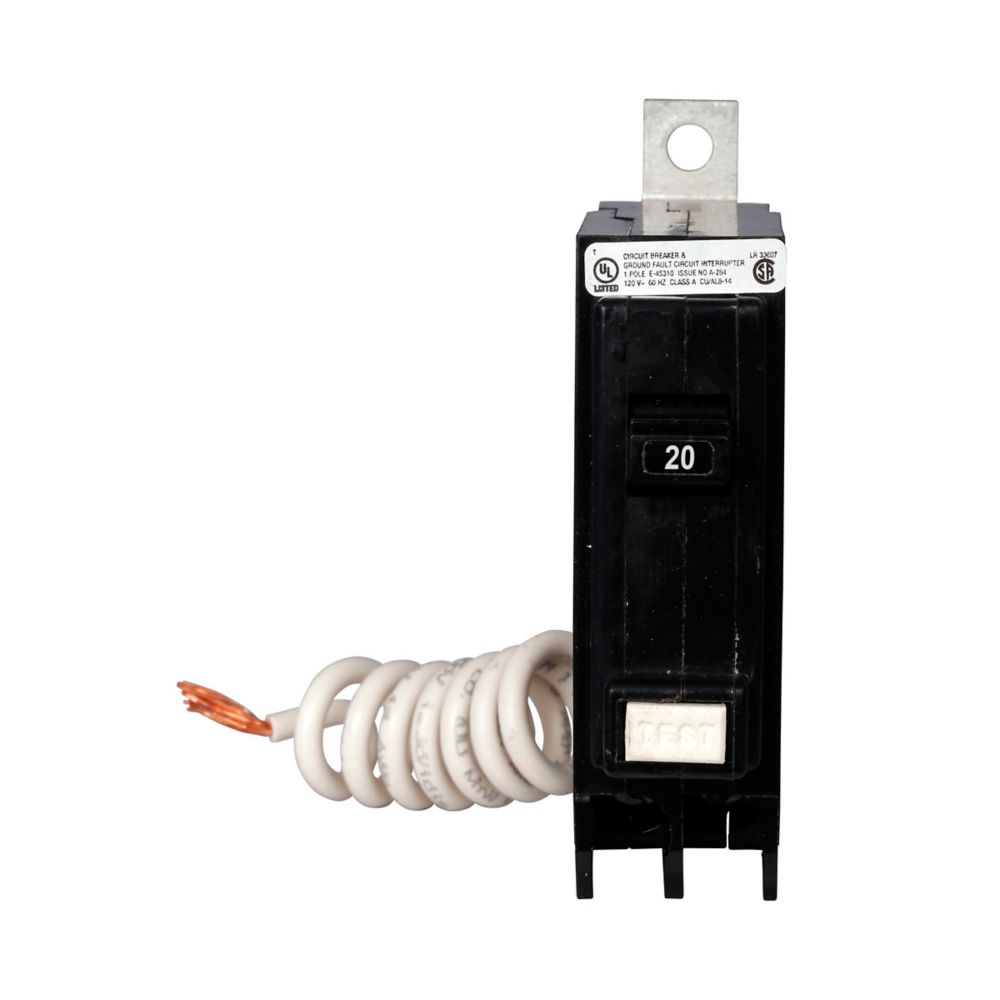

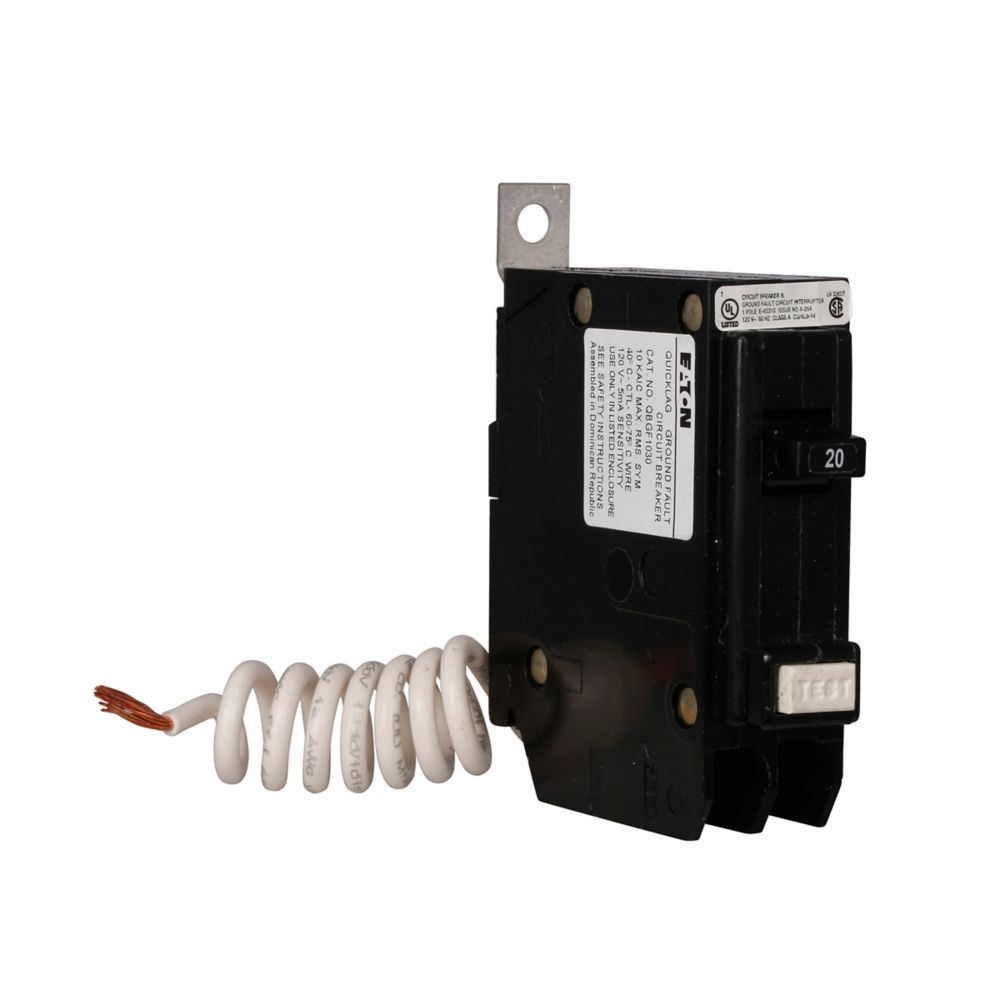

QBHGF1020 | Eaton 20A 1-Pole 120V GFCI Molded Case Circuit Breaker, Bolt-On Mount
- Regular price
- $318.00
- Sale price
- $318.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBHGF1020
Description
The Eaton QBHGF1020 is a single-pole ground fault circuit breaker designed for reliable protection of electrical circuits rated at 20 amps and 120 volts. This molded case breaker provides 5 mA trip sensitivity to prevent ground faults and ensures safety in both residential and commercial panelboard applications. With its bolt-on mounting and thermal magnetic protection, the QBHGF1020 delivers dependable performance and easy installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | QBHGF1020 |
| Subcategory | Molded Case |
| Series | Quicklag (QB) |
| Type | QBHGF |
| Amperage | 20A |
| Voltage Rating | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Trip Sensitivity | 5 mA Ground Fault |
| Interrupting Rating | 22kAIC at 120V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Mounting Style | Bolt-On |
| Terminal Type | Load Side Lug |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Approvals | UL, CSA |
| Dimensions (HxWxD) | 5.1 x 1.2 x 3.3 in |
| Weight | 0.45 lb |
Information About QBHGF1020
The QBHGF1020 is part of Eaton’s Quicklag™ (QB) Series of molded case circuit breakers, known for precision protection and consistent reliability. It features a bolt-on connection for secure installation and is built for compatibility with standard panelboards. This circuit breaker integrates both long-time and instantaneous trip functions, ensuring fast response to overloads and short circuits. Designed with a 5 mA ground fault protection threshold, it meets modern safety standards for personnel and equipment protection in 120V systems.
Key Features:
- Rated Current: 20A current capacity for single-phase circuit protection.
- Voltage Rating: Supports 120VAC operation for residential and light commercial systems.
- Ground Fault Protection: 5 mA trip sensitivity for enhanced safety.
- Interrupting Capacity: 22kAIC at 120V for dependable fault interruption.
- Trip Functions: Long-time and instantaneous trip mechanisms for effective fault management.
- Mounting Type: Bolt-on connection for secure, vibration-resistant installation.
- Thermal Magnetic Design: Combines thermal overload and magnetic short-circuit protection.
- Certified Quality: UL and CSA approved for compliance with safety standards.
The QBHGF1020 delivers the reliability and precision required for high-performance ground fault protection in modern electrical systems.
