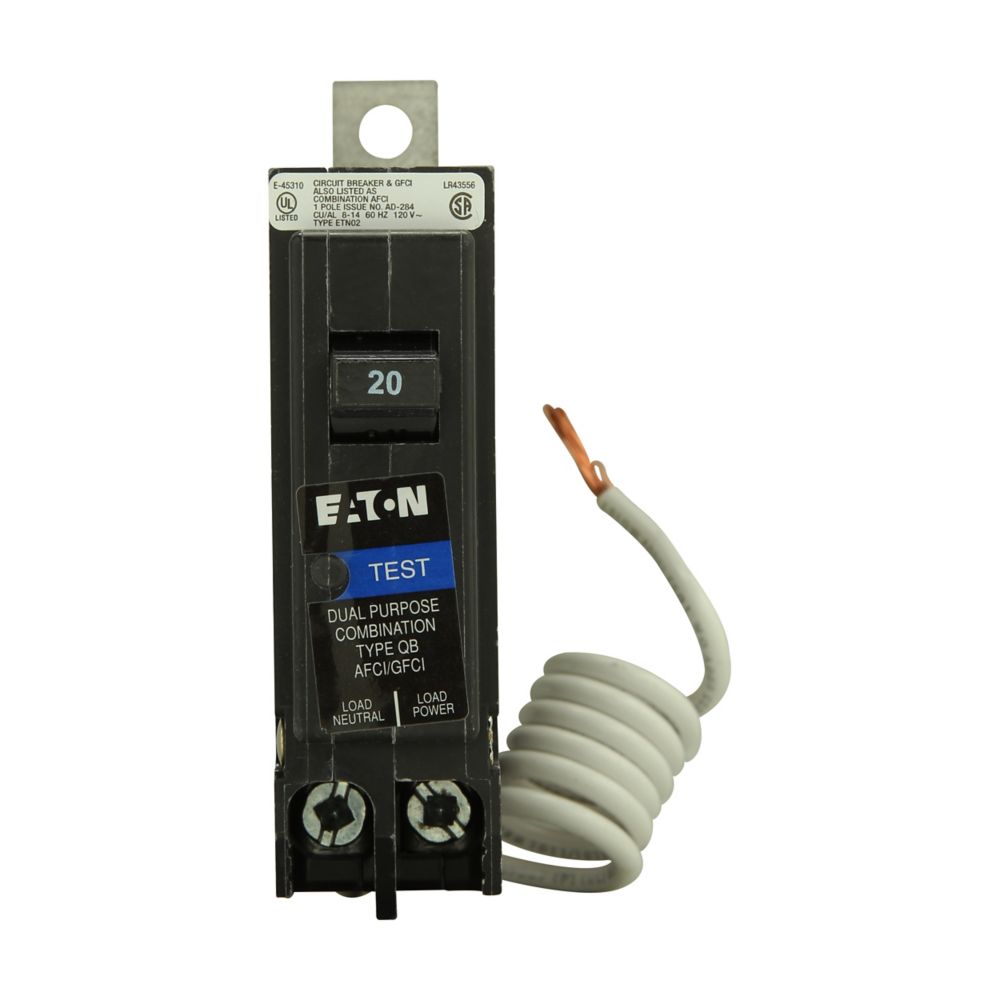

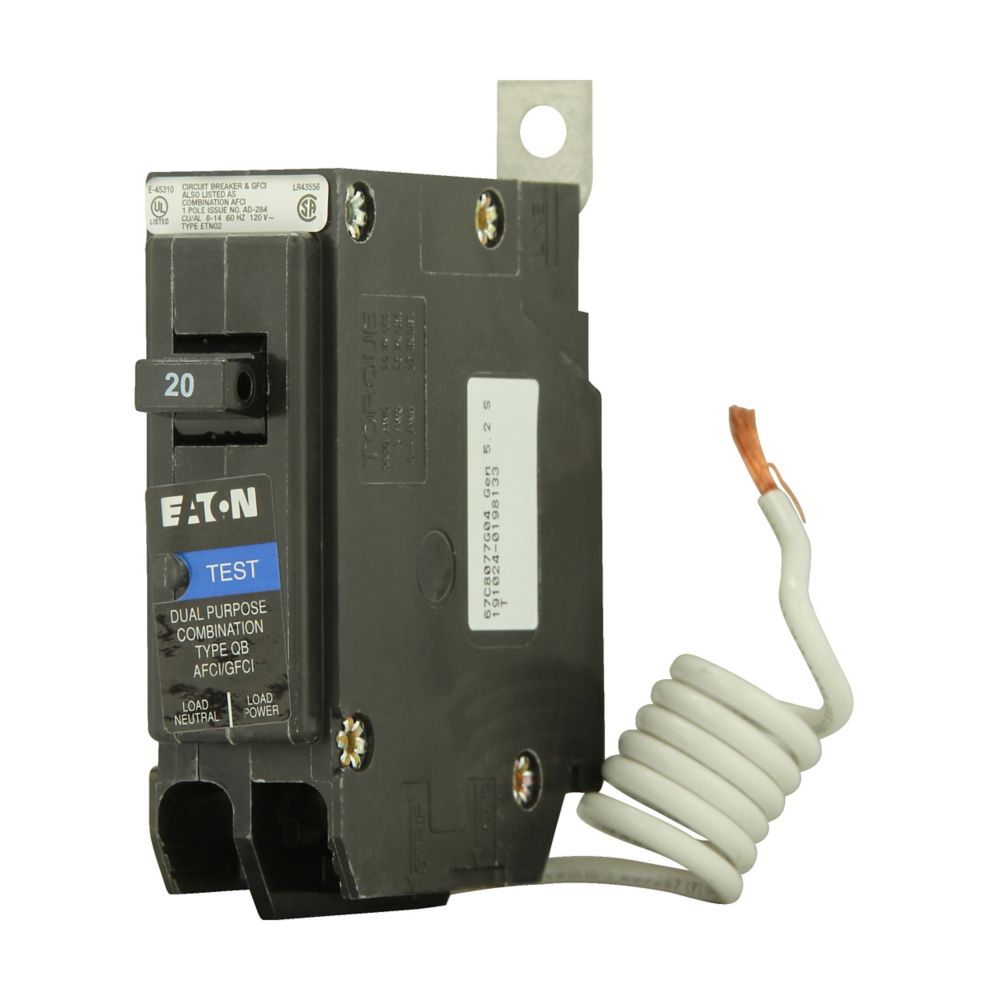

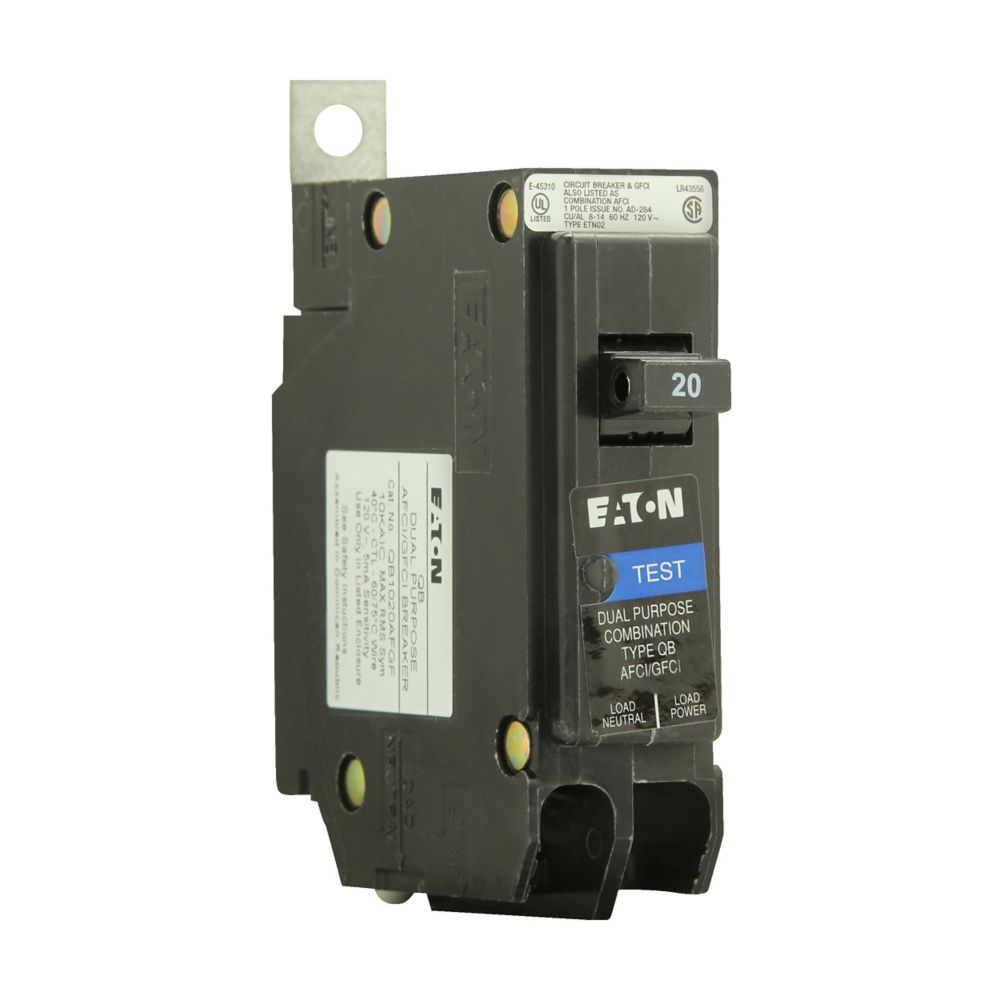

QB1020AFGF | Eaton Cutler-Hammer 1-Pole 20A 240V Molded Case Circuit Breaker
- Regular price
- $295.00
- Sale price
- $295.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QB1020AFGF
Description
The Eaton Cutler-Hammer QB1020AFGF is a molded case circuit breaker engineered for dependable overcurrent and ground fault protection in residential and commercial systems. Featuring a 1-pole configuration with a 20A current rating and 240V operating voltage, the QB1020AFGF ensures safe and efficient power distribution. Its robust thermal-magnetic mechanism provides precise protection against overloads and short circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton - Cutler Hammer |
| Category | Circuit Breaker |
| Part Number | QB1020AFGF |
| Subcategory | Molded Case |
| Series | Quicklag™ |
| Type | QBAFGF |
| Poles | 1 |
| Voltage Rating | 240 V AC |
| Current Rating | 20 A |
| Phase | Single Phase |
| Interrupt Rating (AIC) | 10 kA @ 120V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Fault Protection | Arc Fault and Ground Fault |
| Connection Type | Bolt-On |
| Standards | UL Listed, CSA Approved |
| Dimensions (HxWxD) | 6.1 x 1.25 x 3.5 in |
| Country of Origin | Dominican Republic |
| Weight | 0.45 lb |
Information About QB1020AFGF
The QB1020AFGF is part of Eaton’s Quicklag™ series, known for its high reliability and consistent trip performance. This circuit breaker features a bolt-on connection design for secure installation within loadcenters and panelboards. Built with thermal-magnetic trip technology, it provides both long-time and instantaneous protection. Ideal for branch circuit applications, the QB1020AFGF combines AFCI and GFCI functionality to safeguard both wiring systems and connected devices from arc and ground faults.
Key Features:
- Series Design: Part of Eaton’s Quicklag™ series for reliable molded case performance.
- Current Rating: Rated for 20 amps to handle standard residential and light commercial loads.
- Voltage Rating: Operates at 240 volts AC for consistent circuit protection.
- Trip Mechanism: Thermal-magnetic design ensures precise response to overloads and short circuits.
- Fault Protection: Dual function AF/GF (Arc Fault and Ground Fault) protection enhances electrical safety.
- Mounting Type: Bolt-on connection for firm, vibration-resistant installation.
- Compliance: Meets UL and CSA standards for performance and safety.
- Compact Form: Slim 1-pole design simplifies installation in tight spaces.
The QB1020AFGF delivers the reliability and precision required for dependable circuit protection in residential and light commercial electrical systems.
