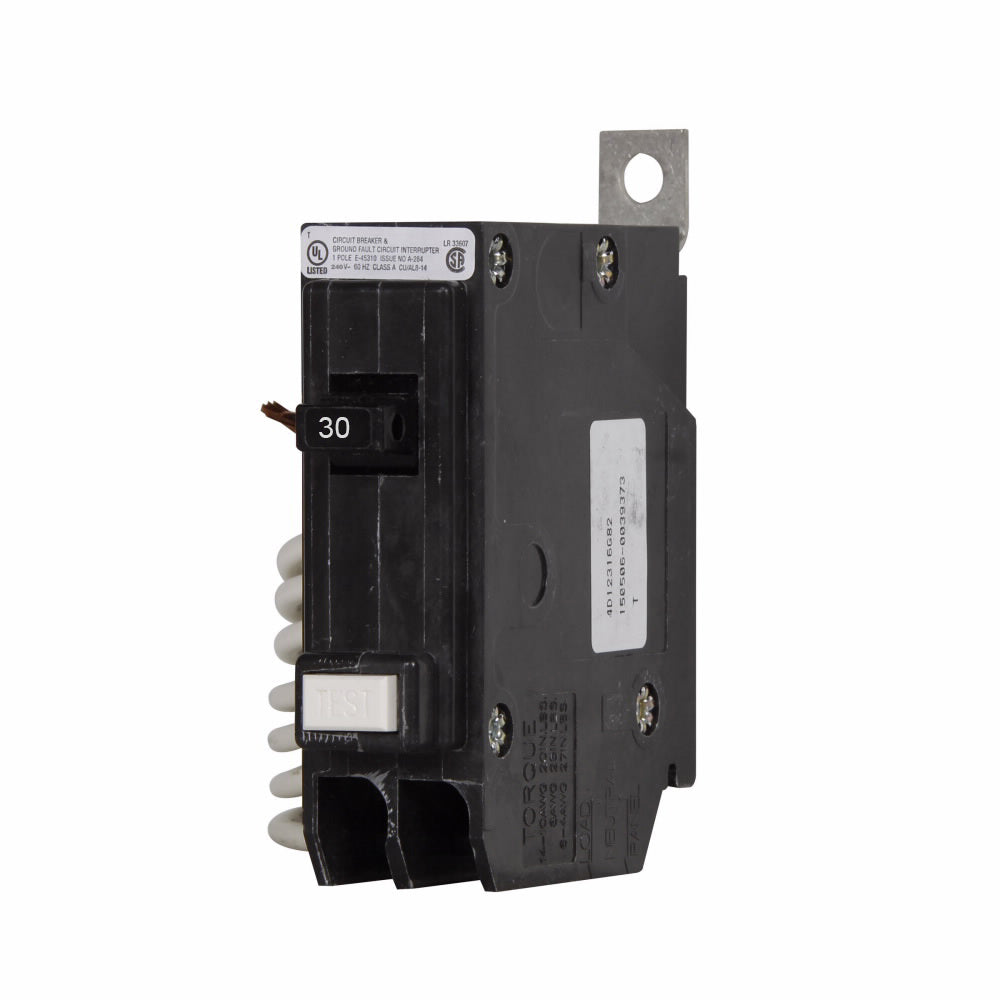

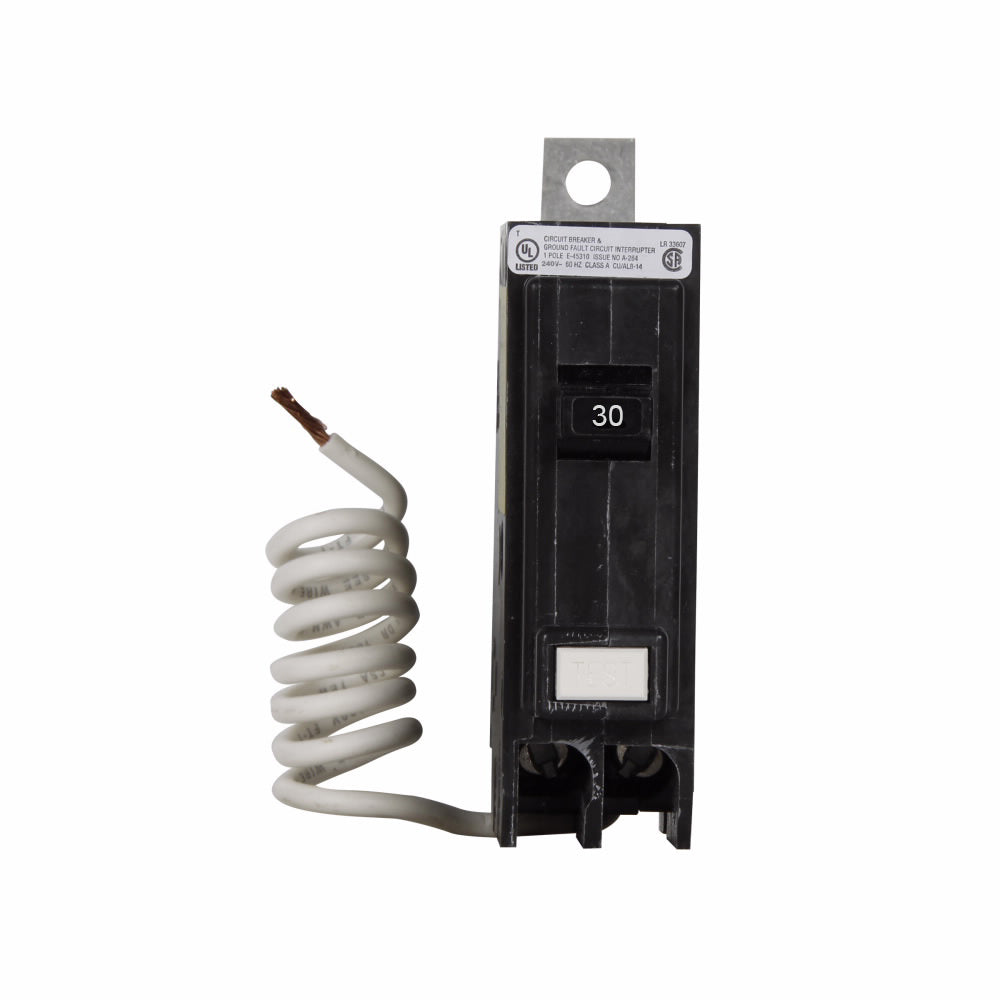

QBHGFT1030 | Eaton Cutler-Hammer 1-Pole 30A 120/240V Ground Fault Molded Case Circuit Breaker
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBHGFT1030
Description
The Eaton Cutler-Hammer QBHGFT1030 is a molded case ground fault circuit breaker designed to provide advanced electrical protection in residential and commercial applications. Rated at 30 amps and 120/240 volts, this single-pole breaker combines ground fault detection with thermal-magnetic trip technology to safeguard circuits from overloads, short circuits, and ground faults. The QBHGFT1030 ensures reliable performance and secure bolt-on installation in loadcenters and panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton - Cutler Hammer |
| Category | Circuit Breaker |
| Part Number | QBHGFT1030 |
| Subcategory | Molded Case |
| Series | Quicklag™ |
| Breaker Type | Ground Fault (GFCI) |
| Type | QBHGF |
| Poles | 1 |
| Voltage Rating | 120/240 VAC |
| Current Rating | 30 A |
| Interrupt Rating (AIC) | 22 kA @ 240V |
| Trip Sensitivity | 5 mA |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Protection Type | Thermal Magnetic |
| Mounting Method | Bolt-On |
| Certifications | UL 489 Listed |
| Temperature Range | -25°C to +70°C (-13°F to +158°F) |
| Connection Type | Load Side Lug |
| Phase | Single Phase |
| Country of Origin | Dominican Republic |
| Weight | 0.5 lb |
Information About QBHGFT1030
The QBHGFT1030 is part of Eaton’s Quicklag™ series, known for its precision-engineered molded case breakers with superior trip accuracy and robust construction. This QBHGF-type breaker incorporates ground fault protection with 5 mA trip sensitivity to prevent electrical shock hazards and equipment damage. It is UL 489 certified and designed for bolt-on mounting, ensuring a secure and stable connection in demanding environments. With its long-time and instantaneous trip functions, the QBHGFT1030 offers dependable protection for both residential and light industrial electrical systems.
Key Features:
- Series: Part of Eaton’s Quicklag™ family for consistent and durable circuit protection.
- Ground Fault Protection: 5 mA trip sensitivity ensures rapid response to ground faults for enhanced safety.
- Thermal-Magnetic Trip: Provides accurate overload and short-circuit protection.
- Voltage and Current Rating: Operates at 120/240 VAC with a 30-amp capacity for standard branch circuits.
- Interrupt Rating: 22 kAIC at 240V delivers reliable fault interruption in high-energy systems.
- Mounting Type: Bolt-on design ensures secure and vibration-resistant installation.
- Certifications: UL 489 approved for compliance with safety and performance standards.
- Temperature Rating: Suitable for environments ranging from -25°C to +70°C.
The QBHGFT1030 delivers the reliability and precision required for effective overcurrent and ground fault protection in residential, commercial, and light industrial power systems.
