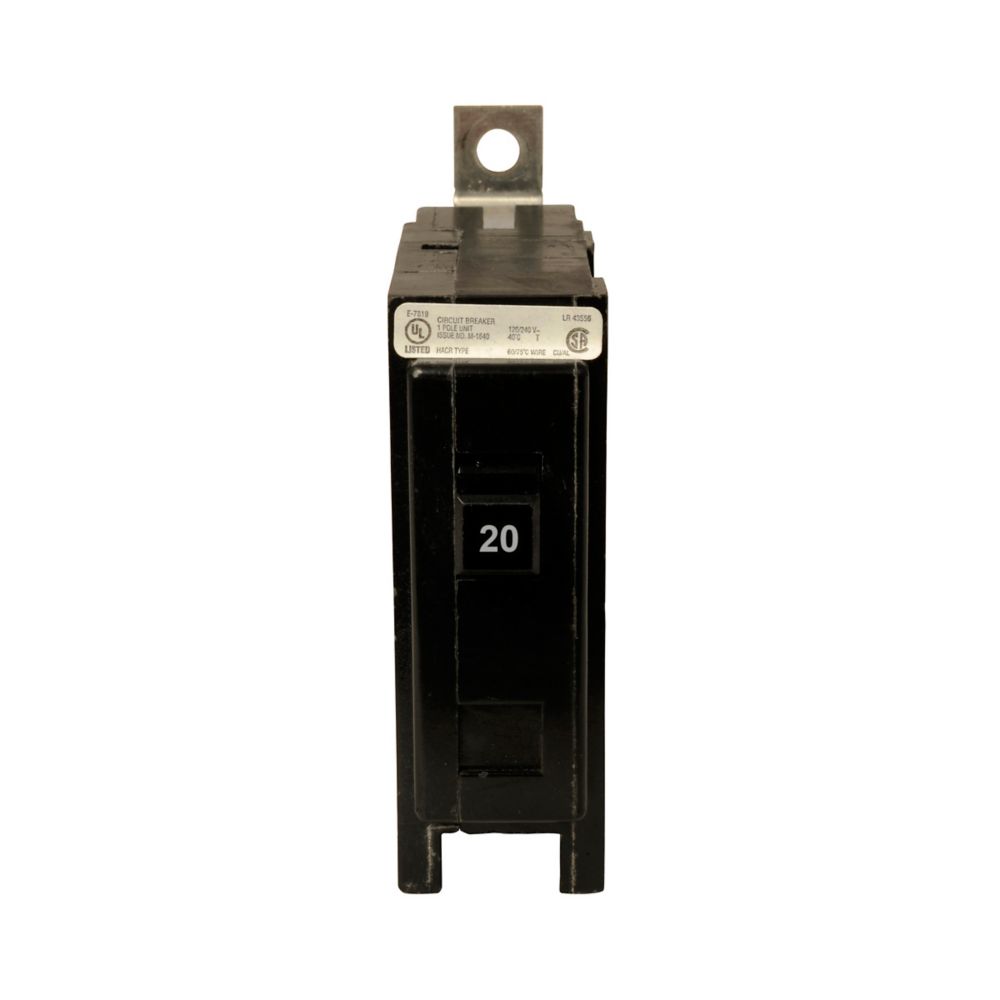

Part #: QBHW1020 Manufactured by: Eaton
Regular price
$42.00
Sale price
$42.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The QBHW1020 is an Eaton Quicklag industrial thermal-magnetic circuit breaker. It features a single-pole configuration and...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: QBHW1020
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Eaton
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: QBHW1020

Description / Specifications

Description

The QBHW1020 is an Eaton Quicklag industrial thermal-magnetic circuit breaker. This single-pole breaker is non-interchangeable and rated for 20A. It has a 22 kAIC interrupting capacity and is designed for operation at 120/240V. This circuit breaker is suitable for industrial applications requiring reliable thermal-magnetic protection.



Technical Specifications

Brand

EATON

Type

Type QBHW

Voltage Rating

120/240 VAC

Amperage Rating

20 A

Interrupt Rating

22 kA

Trip Type

Non-Interchangeable/Thermal Magnetic

Number of Poles

1

Phase

1 ph

Wire Size

14 to 4 AWG

Mounting Type

Bolted-On

Temperature Rating

40 deg C

Dimensions (L x W x H)

3.9 x 1.2 x 4.7 in



Information About QBHW1020

The QBHW1020 is an Eaton Quicklag industrial thermal-magnetic circuit breaker. This circuit breaker is designed for industrial applications where reliable overcurrent protection is required. It features a single-pole configuration and operates with a voltage rating of 120/240 VAC. The QBHW1020 has an amperage rating of 20A, making it suitable for circuits requiring this specific current capacity.

The interrupt rating of this circuit breaker is 22 kAIC, which denotes its ability to interrupt fault currents up to 22,000 amperes. This high interrupting capacity ensures that the breaker can safely handle short-circuit conditions without sustaining damage, thereby providing robust protection for electrical systems.

The QBHW1020 utilizes a thermal-magnetic trip mechanism. This mechanism combines the advantages of thermal and magnetic tripping methods. The thermal component provides protection against overloads by utilizing a bimetallic strip that bends and trips the breaker when excessive current causes it to heat up. The magnetic component provides instantaneous protection against short circuits by using an electromagnet that trips the breaker when a sudden surge of current is detected. This dual-function trip mechanism ensures comprehensive protection against both overloads and short circuits.





Manufacturer information

Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The QBHW1020 is an Eaton Quicklag industrial thermal-magnetic circuit breaker. This single-pole breaker is non-interchangeable and rated for 20A. It has a 22 kAIC interrupting capacity and is designed for operation at 120/240V. This circuit breaker is suitable for industrial applications requiring reliable thermal-magnetic protection.



Technical Specifications

Brand

EATON

Type

Type QBHW

Voltage Rating

120/240 VAC

Amperage Rating

20 A

Interrupt Rating

22 kA

Trip Type

Non-Interchangeable/Thermal Magnetic

Number of Poles

1

Phase

1 ph

Wire Size

14 to 4 AWG

Mounting Type

Bolted-On

Temperature Rating

40 deg C

Dimensions (L x W x H)

3.9 x 1.2 x 4.7 in



Information About QBHW1020

The QBHW1020 is an Eaton Quicklag industrial thermal-magnetic circuit breaker. This circuit breaker is designed for industrial applications where reliable overcurrent protection is required. It features a single-pole configuration and operates with a voltage rating of 120/240 VAC. The QBHW1020 has an amperage rating of 20A, making it suitable for circuits requiring this specific current capacity.

The interrupt rating of this circuit breaker is 22 kAIC, which denotes its ability to interrupt fault currents up to 22,000 amperes. This high interrupting capacity ensures that the breaker can safely handle short-circuit conditions without sustaining damage, thereby providing robust protection for electrical systems.

The QBHW1020 utilizes a thermal-magnetic trip mechanism. This mechanism combines the advantages of thermal and magnetic tripping methods. The thermal component provides protection against overloads by utilizing a bimetallic strip that bends and trips the breaker when excessive current causes it to heat up. The magnetic component provides instantaneous protection against short circuits by using an electromagnet that trips the breaker when a sudden surge of current is detected. This dual-function trip mechanism ensures comprehensive protection against both overloads and short circuits.





Manufacturer information

Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
