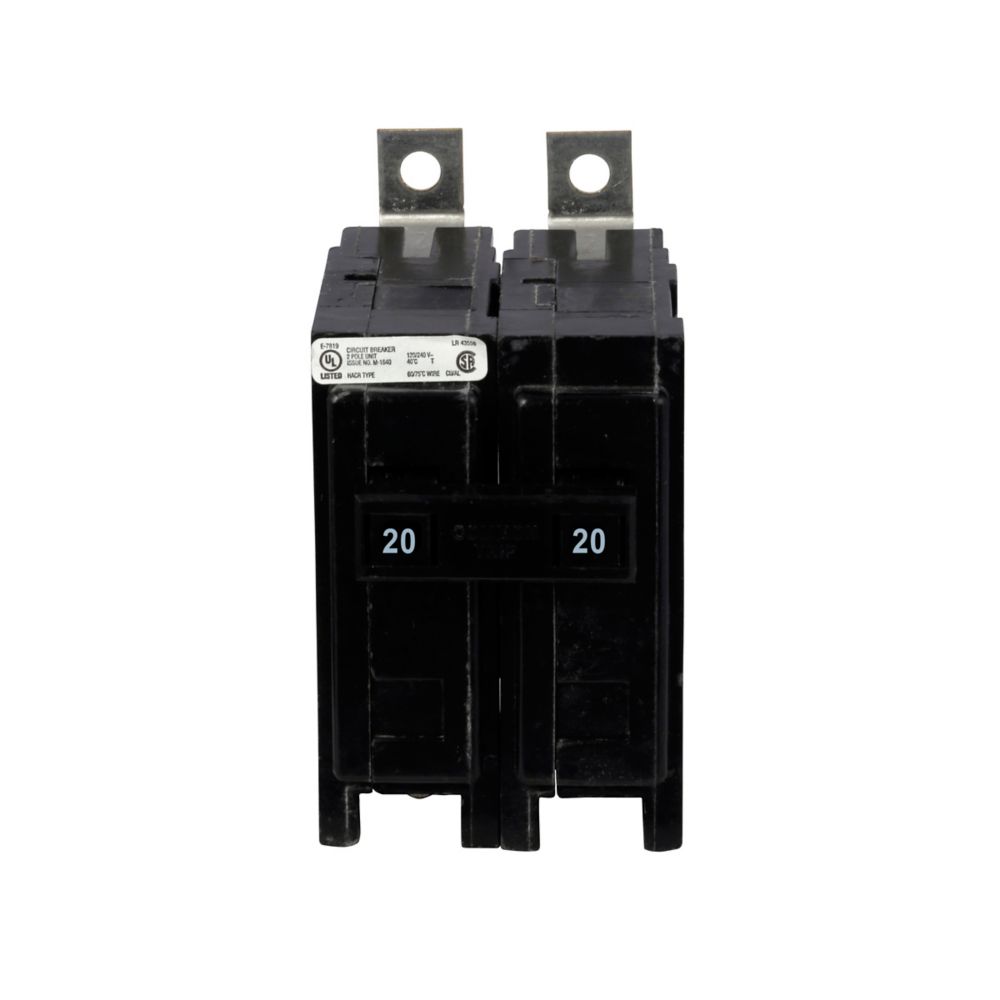

QBHW2020 | Eaton QB Thermal Magnetic Circuit Breaker
- Regular price
- $80.00
- Sale price
- $80.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QBHW2020
Description
The QBHW2020 is an Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker. This circuit breaker features a 20-ampere rating and is of the QBHW type. It has a 22 kAIC interrupt rating and is designed with two poles. The breaker operates at a voltage rating of 120/240V and is non-interchangeable. It provides reliable circuit protection through its thermal-magnetic trip mechanism.
Technical Specifications
|
Product Name |
Quicklag Industrial Thermal-Magnetic Circuit Breaker |
|
Product Length |
3.7 IN |
|
Product Height |
4.8 IN |
|
Product Width |
2.2 IN |
|
Product Weight |
0.55 LB |
|
Certifications |
CSA Certified, UL Listed |
|
Catalog Notes |
HACR rated |
|
Mounting |
Bolt-on |
|
Interrupt Rating |
22 kAIC |
|
Type |
Quicklag |
|
Circuit Breaker Type |
QBHW |
|
Quantity |
Q7 |
|
Voltage Rating |
120/240V |
|
Amperage Rating |
20A |
|
Trip Type |
Non-Interchangeable |
|
Number Of Poles |
Two-pole |
|
Dimensions (H x W x L) |
4.8" x 2.2" x 3.7" |
|
Authentic Product |
Eaton/Cutler-Hammer |
Information About QBHW2020
The Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker, catalog number QBHW2020, is a two-pole device designed for industrial applications. This circuit breaker operates with a thermal-magnetic trip mechanism, providing both instantaneous and long-term protection against overcurrent conditions. The breaker has a current rating of 20 amperes and can operate within a voltage range of 120/240 volts.
This specific model is characterized by its high interrupting capacity, rated at 22 kiloamperes interrupting capacity (kAIC). The high interrupting capacity ensures that the breaker can safely interrupt high fault currents, providing enhanced protection in industrial environments.
The QBHW2020 circuit breaker is non-interchangeable, meaning the trip unit is fixed and cannot be replaced or adjusted. This feature ensures consistent performance and reliability throughout the breaker’s operational life. The unit is designed for bolt-on mounting, ensuring a secure and stable installation within electrical panels.
With dimensions of 4.8 inches in height, 2.2 inches in width, and 3.7 inches in length, and a weight of 0.55 pounds, the QBHW2020 is compact and lightweight, making it suitable for use in a variety of industrial settings. The breaker is certified by both CSA and UL, ensuring compliance with North American safety standards. It is also HACR (Heating, Air Conditioning, and Refrigeration) rated, indicating its suitability for use in HVAC applications.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
