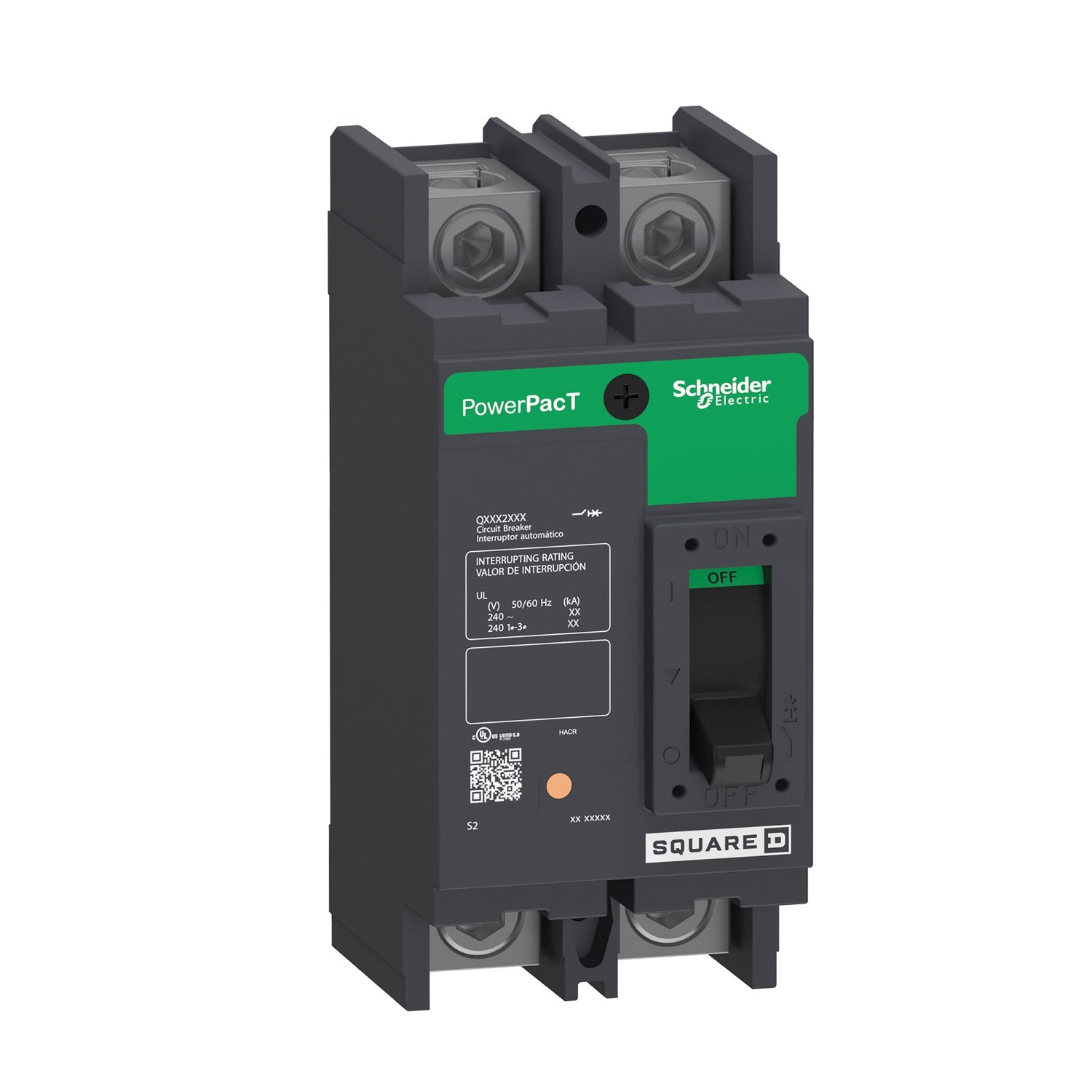

QBL22100 | Schneider Electric Molded Case Circuit Breaker 240V
- Regular price
- $342.00
- Sale price
- $342.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBL22100
Description
The QBL22100 is a Molded Case Circuit Breaker designed for use in 240VAC systems, belonging to the PowerPacT Q-Frame series. It offers overcurrent protection and switching capabilities with a rated operational voltage of 240VAC. Equipped with thermal magnetic trip protection, it ensures reliable performance in various applications. This circuit breaker is available in 2 and 3-pole unit mount as well as I-Line constructions.
Technical Specifications
|
Part # |
QBL22100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
100 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
B |
|
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV UL |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2400 A |
|
Magnetic hold current |
1200 A |
|
Continuous current rating |
80 % |
|
Utilisation category |
Category A |
|
Local signalling |
1 trip indicator (green) |
|
Mounting mode |
Unit mount |
|
Mounting Support |
Lug |
|
Tightening torque |
247.82 lbf.in (28 N.m) |
|
Power wire stripping length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit breaker application |
HACR rated |
|
Ambient air temperature for operation |
104…158 °F (40…70 °C) |
Information About QBL22100
The QBL22100 is a molded case circuit breaker designed for use in 240VAC systems, providing overcurrent protection and switching capabilities. Part of the PowerPacT Q-Frame series, these circuit breakers offer thermal magnetic trip protection. They are specifically rated for 240VAC operational voltage.
Available in both 2 and 3-pole configurations, the PowerPacT Q circuit breakers come in unit mount and I-Line constructions. Featuring an integral push-to-trip button in the cover, they allow for manual tripping when necessary. The QBL22100 model is equipped with lugs on both the line and load sides for easy installation.
This PowerPacT Q circuit breaker is a 100A, 2-pole unit with a interrupting rating of 10kA at 208Y/120VAC and 240VAC. Additionally, it has a continuous current rating of 80%, ensuring reliable performance under varying load conditions.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
