QBL22125 | Schneider Electric Molded Case Circuit Breaker
- Regular price
- $489.00
- Sale price
- $489.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

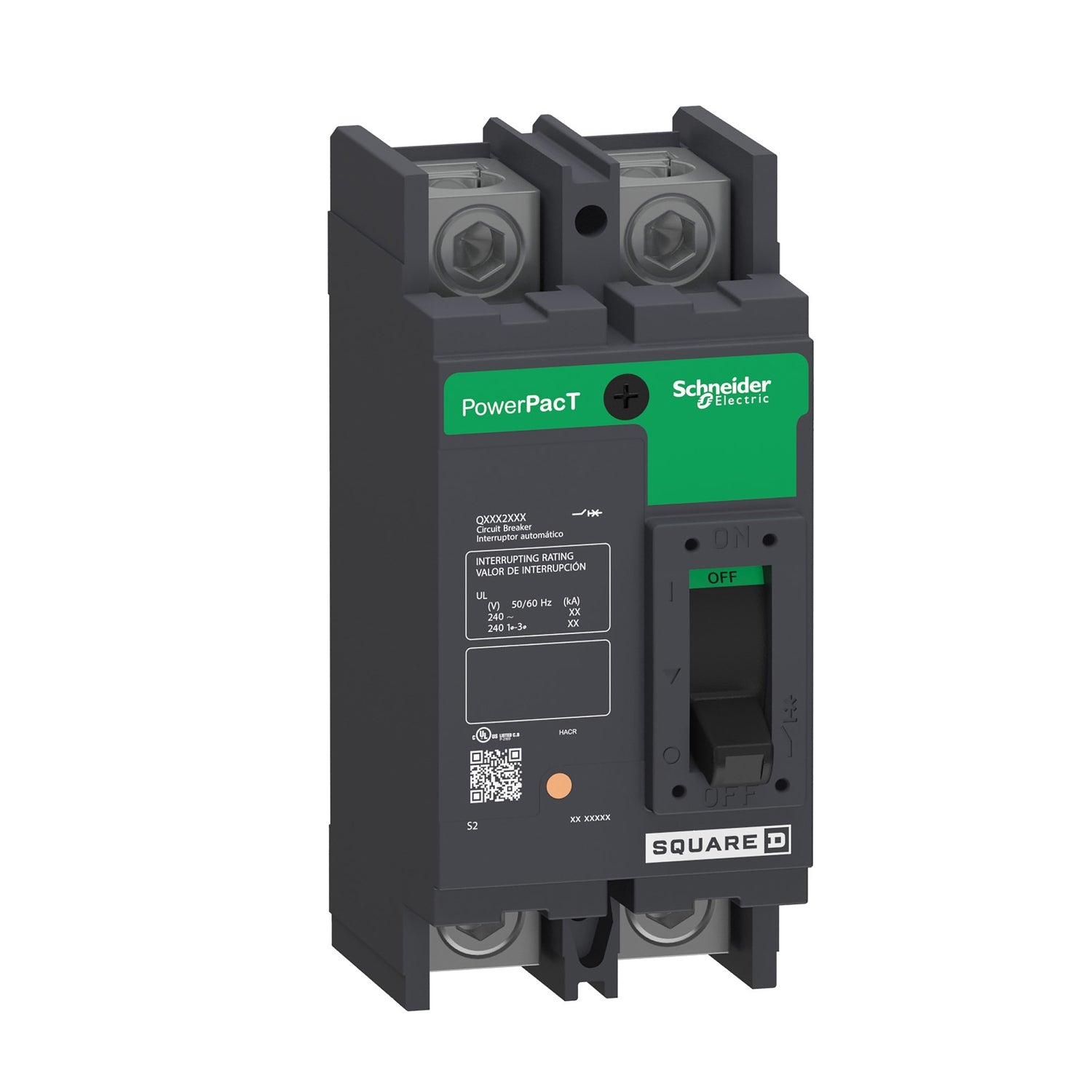

Product Description P/N: QBL22125
Description
The QBL22125 is a PowerPacT Q-Frame Molded Case Circuit Breaker, designed for overcurrent protection and switching in 240VAC systems. It operates at a nominal voltage of 240VAC and features thermal magnetic trip protection.
Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, PowerPacT Q circuit breakers offer versatile installation options.
Equipped with an integral push-to-trip button in the cover, users can manually trip the circuit breaker when needed.
Technical Specifications
|
Part # |
QBL22125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact Q |
|
Product or Component Type |
Circuit Breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
125 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Tightening Torque |
247.82 lbf.in (28 N.m) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit Breaker Application |
HACR rated |
|
Ambient Air Temperature for Operation |
104…158 °F (40…70 °C) |
Information About QBL22125
The QBL22125 is a molded case circuit breaker from the PowerPacT Q-Frame series designed for overcurrent protection and switching applications in 240VAC systems. This circuit breaker is specifically engineered to operate at a rated operational voltage of 240VAC and offers thermal magnetic trip protection.
PowerPacT Q circuit breakers are versatile, available in both 2 and 3-pole unit mount configurations as well as I-Line constructions, providing flexibility for various installation requirements. Equipped with an integral push-to-trip button located in the cover, all PowerPacT circuit breakers offer manual tripping capability for added convenience and safety.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The QBL22125 is a PowerPacT Q-Frame Molded Case Circuit Breaker, designed for overcurrent protection and switching in 240VAC systems. It operates at a nominal voltage of 240VAC and features thermal magnetic trip protection.
Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, PowerPacT Q circuit breakers offer versatile installation options.
Equipped with an integral push-to-trip button in the cover, users can manually trip the circuit breaker when needed.
Technical Specifications
|
Part # |
QBL22125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact Q |
|
Product or Component Type |
Circuit Breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
125 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Tightening Torque |
247.82 lbf.in (28 N.m) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit Breaker Application |
HACR rated |
|
Ambient Air Temperature for Operation |
104…158 °F (40…70 °C) |
Information About QBL22125
The QBL22125 is a molded case circuit breaker from the PowerPacT Q-Frame series designed for overcurrent protection and switching applications in 240VAC systems. This circuit breaker is specifically engineered to operate at a rated operational voltage of 240VAC and offers thermal magnetic trip protection.
PowerPacT Q circuit breakers are versatile, available in both 2 and 3-pole unit mount configurations as well as I-Line constructions, providing flexibility for various installation requirements. Equipped with an integral push-to-trip button located in the cover, all PowerPacT circuit breakers offer manual tripping capability for added convenience and safety.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
