QBL22150 | Schneider Electric Circuit Breaker
- Regular price
- $337.00
- Sale price
- $337.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

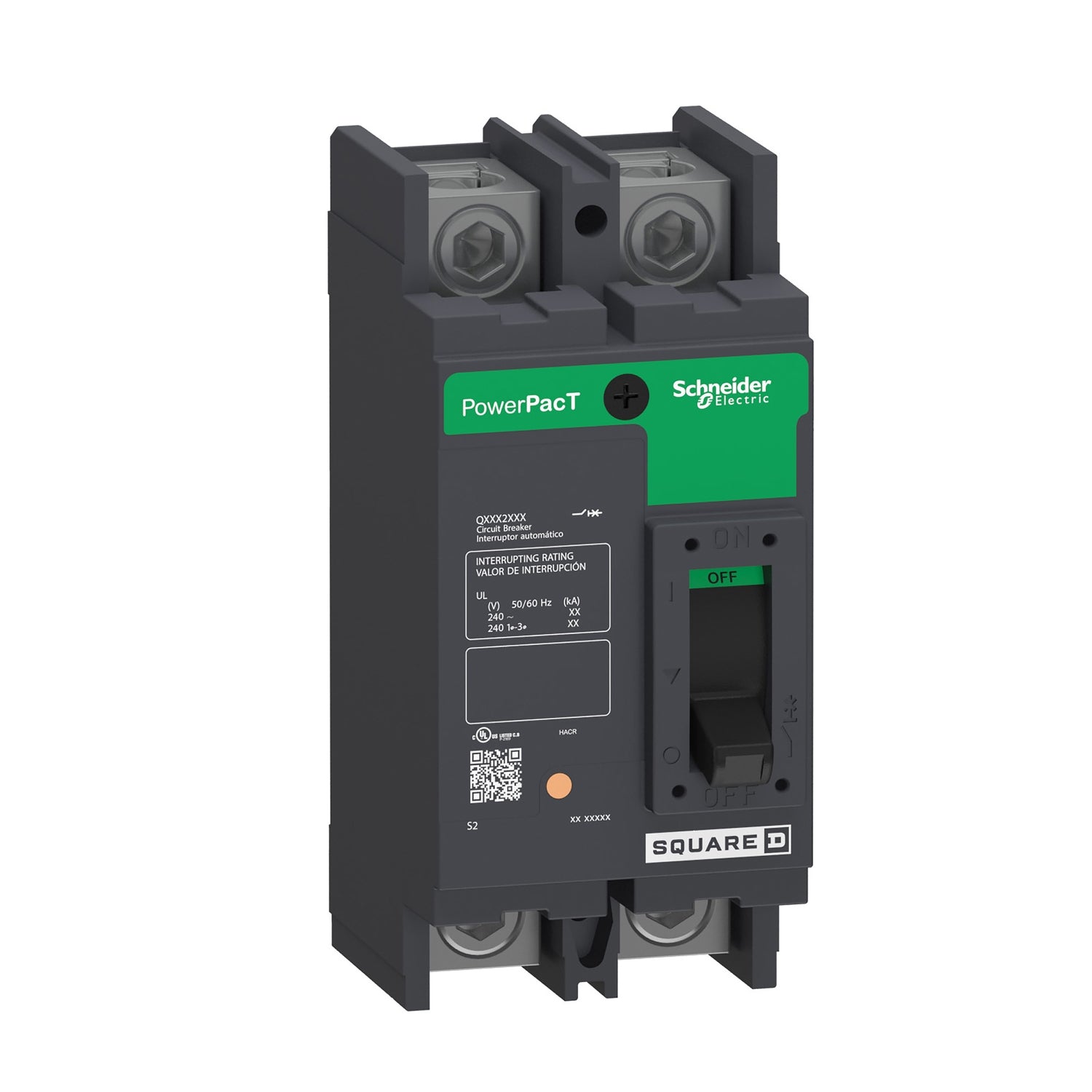

Product Description P/N: QBL22150
Description
The QBL22150 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. Featuring thermal magnetic trip protection, it operates at 240VAC operational voltage. Available in both 2 and 3-pole configurations, including I-Line constructions, PowerPacT Q circuit breakers are equipped with an integral push-to-trip button for manual tripping. This unit features lugs on both the line and load sides. Rated at 150A, it offers an interrupting rating of 10kA at 208Y/120VAC and 240VAC, with a continuous current rating of 80%.
Technical Specifications
|
Part Number |
QBL22150 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
150 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
Breaking Capacity |
10 kA 120/208 V AC 50/60 Hz UL<br>10 kA 240 V AC 50/60 Hz UL |
|
[Ue] Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Mechanical Durability |
1000 cycles loaded<br>5000 cycles no load |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount (lug) |
|
Mounting Support |
Lug |
Information About QBL22150
The QBL22150 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching on 240VAC systems. This circuit breaker operates at a rated operational voltage of 240VAC and features thermal magnetic trip protection technology. The device is categorized under the PowerPact range and is a molded case circuit breaker specifically tailored for distribution applications.
The QBL22150 circuit breaker has a line-rated current of 150A and includes 2 poles. It employs an operating handle as its control type. The breaking capacity code for this device is B, and it has a breaking capacity of 10kA at both 120/208V AC and 240V AC with a frequency of 50/60 Hz, as per UL standards. The rated impulse withstand voltage ([Uimp]) is 8kV according to UL specifications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The QBL22150 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. Featuring thermal magnetic trip protection, it operates at 240VAC operational voltage. Available in both 2 and 3-pole configurations, including I-Line constructions, PowerPacT Q circuit breakers are equipped with an integral push-to-trip button for manual tripping. This unit features lugs on both the line and load sides. Rated at 150A, it offers an interrupting rating of 10kA at 208Y/120VAC and 240VAC, with a continuous current rating of 80%.
Technical Specifications
|
Part Number |
QBL22150 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
150 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
Breaking Capacity |
10 kA 120/208 V AC 50/60 Hz UL<br>10 kA 240 V AC 50/60 Hz UL |
|
[Ue] Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Mechanical Durability |
1000 cycles loaded<br>5000 cycles no load |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount (lug) |
|
Mounting Support |
Lug |
Information About QBL22150
The QBL22150 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching on 240VAC systems. This circuit breaker operates at a rated operational voltage of 240VAC and features thermal magnetic trip protection technology. The device is categorized under the PowerPact range and is a molded case circuit breaker specifically tailored for distribution applications.
The QBL22150 circuit breaker has a line-rated current of 150A and includes 2 poles. It employs an operating handle as its control type. The breaking capacity code for this device is B, and it has a breaking capacity of 10kA at both 120/208V AC and 240V AC with a frequency of 50/60 Hz, as per UL standards. The rated impulse withstand voltage ([Uimp]) is 8kV according to UL specifications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
