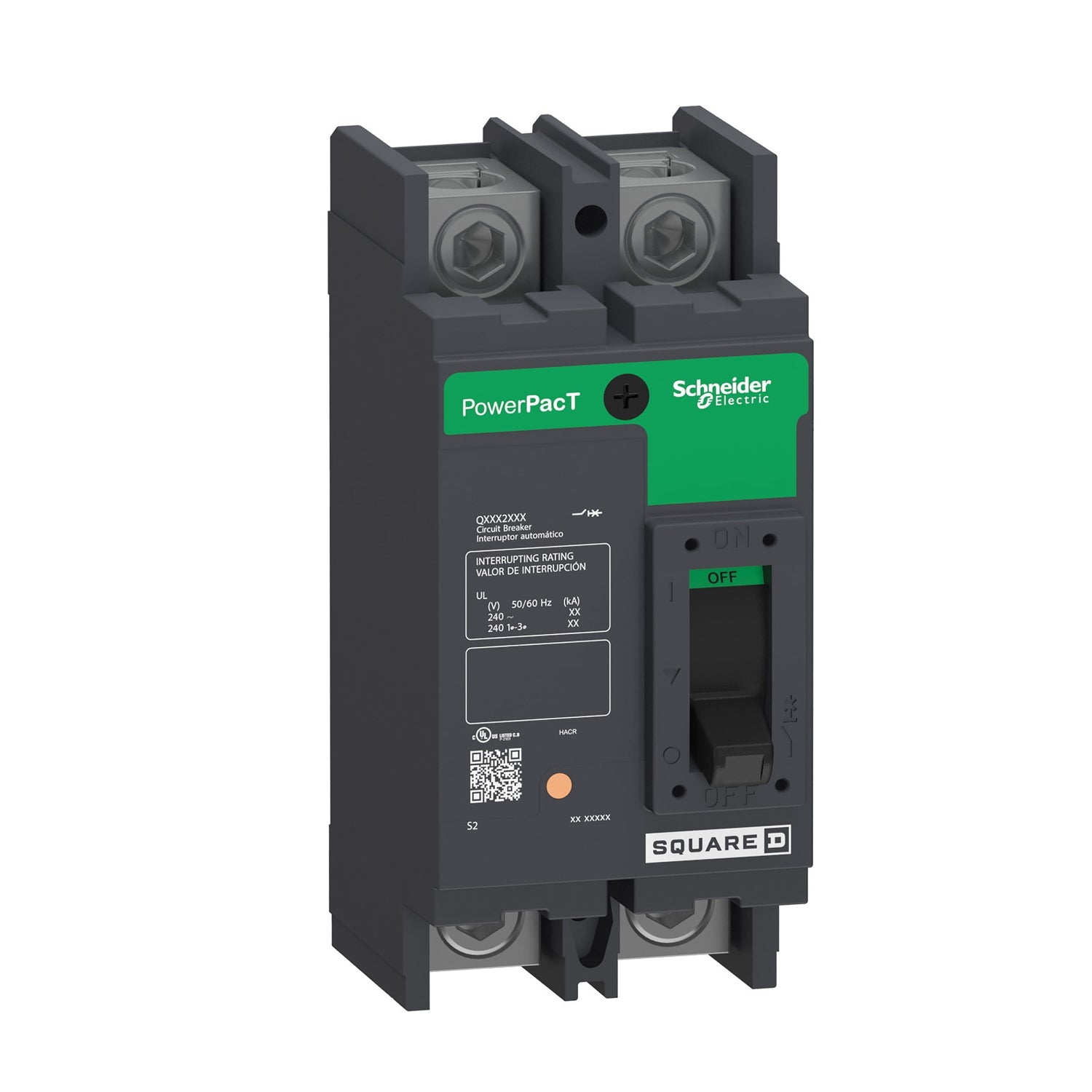

QBL22175 | Schneider Electric Circuit Breaker
- Regular price
- $373.00
- Sale price
- $373.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBL22175
Description
QBL22175, Square D,Schneider Electric, Powerpact, type QBL, 2P, 1PH, 175A, 240V, 10kA@240V, UL listed, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QBL22175 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | QBL |
| Voltage | 240 |
| Amperage | 175 |
| AIC Rating | 10kA@240V |
| Poles | 2 |
| Protection | Thermal Magnetic |
| Frame Type | Q Frame |
| Connection | Feed-Thru |
| Phase | 1 |
| Functions | LI - Long-Time and Instantaneous |
Information About QBL22175
The QBL22175 Schneider Electric Circuit Breaker is a high-performance protection device designed for industrial and commercial electrical systems. Part of the Powerpact family, this breaker ensures reliable and efficient power management.
Operating at a voltage of 240V and an amperage of 175A, the QBL22175 is suitable for handling substantial electrical loads in single-phase systems. Its two-pole configuration provides effective power distribution and circuit protection across the system.
The QBL22175 employs a Thermal Magnetic protection mechanism, offering dual protection by combining thermal protection for long-time overload conditions and magnetic protection for instantaneous short-circuit response. This comprehensive protection ensures the safety and reliability of electrical circuits. With an interrupting capacity (AIC) of 10kA at 240V, the breaker can handle significant fault currents, providing robust protection against electrical faults.
Designed for ease of installation and maintenance, the QBL22175 features a feed-thru connection, facilitating straightforward integration into existing electrical systems. The Q Frame type enhances its durability and reliability, making it suitable for demanding environments.
The primary functions of the QBL22175 include Long-Time and Instantaneous protection, ensuring continuous operation under normal conditions and rapid disconnection during fault conditions to prevent damage and enhance safety.
Overall, the QBL22175 Schneider Electric Circuit Breaker is a dependable and efficient solution for protecting electrical circuits from overloads and short circuits. Its high amperage rating, robust protection features, and reliable performance make it ideal for various industrial and commercial applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
