QBL22225 | Schneider Electric Circuit Breaker
- Regular price
- $459.00
- Sale price
- $459.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

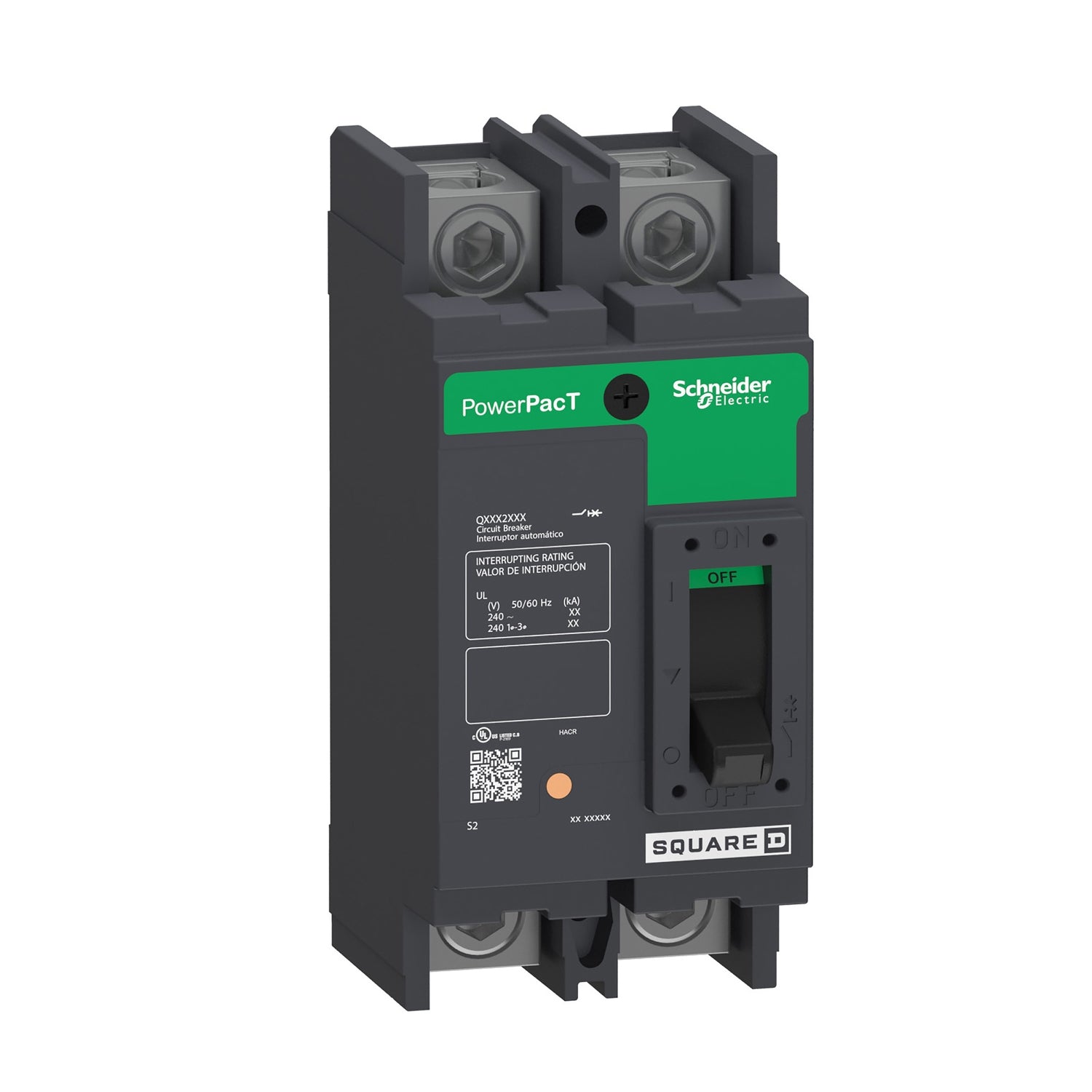

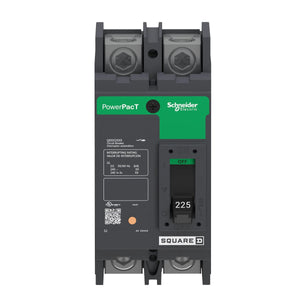

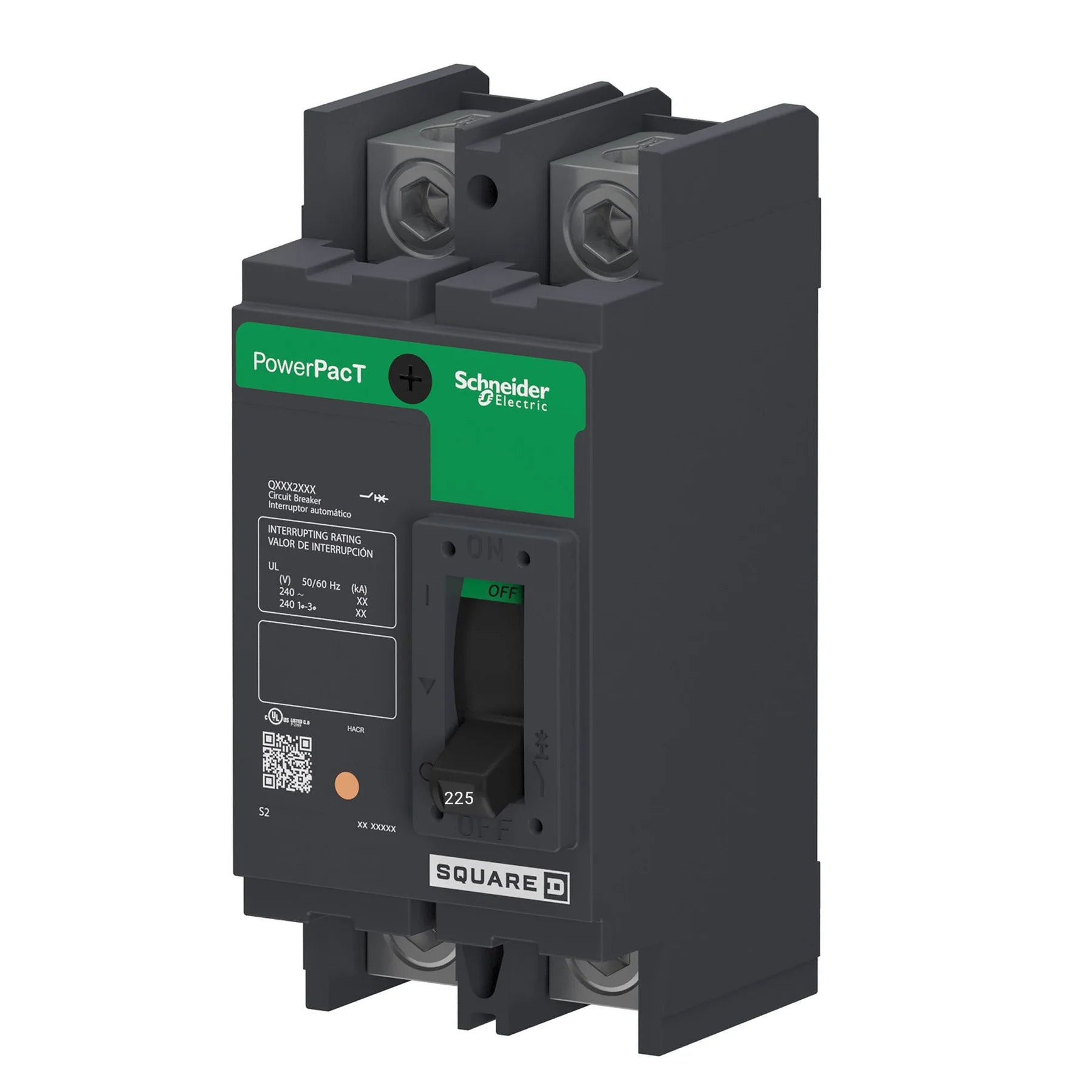

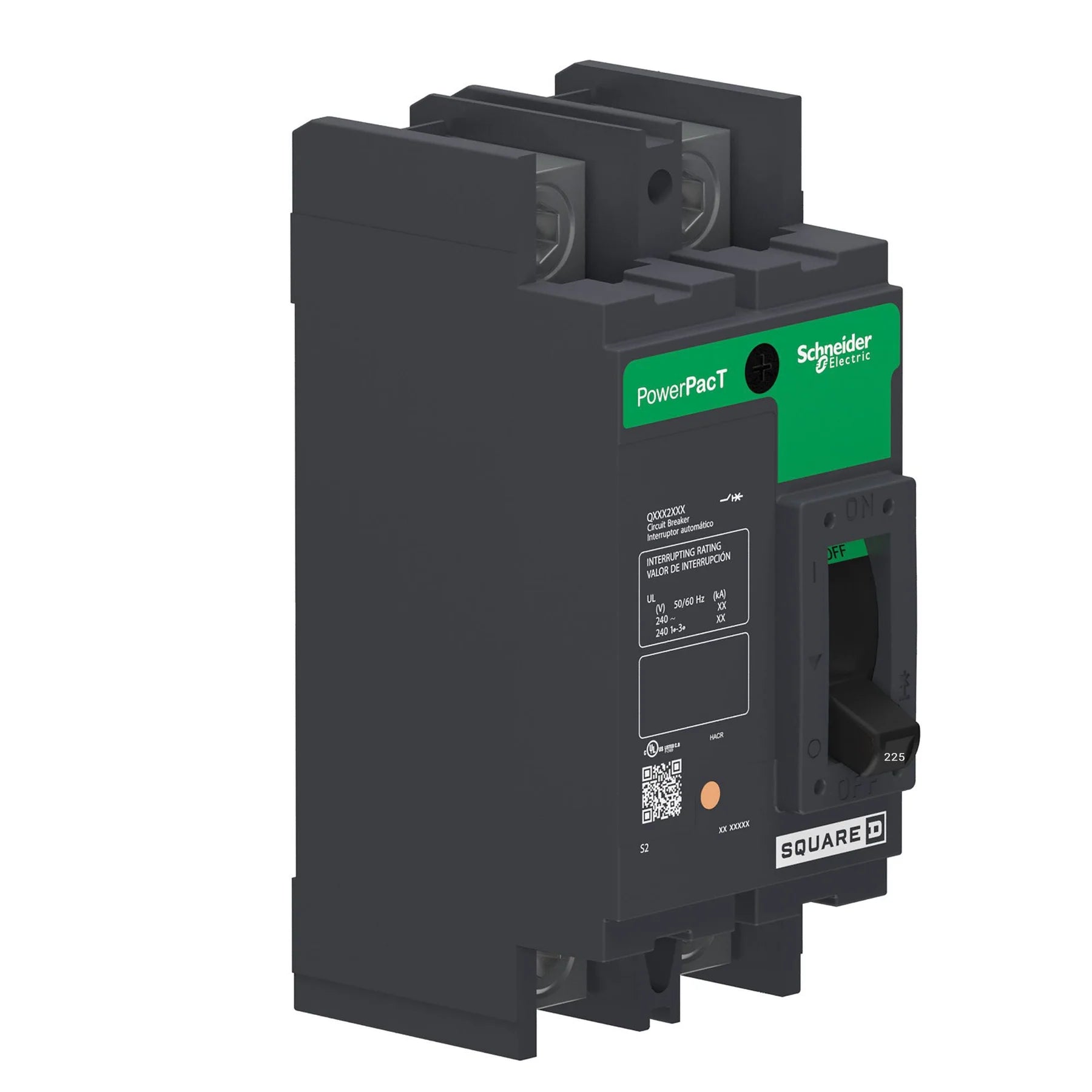

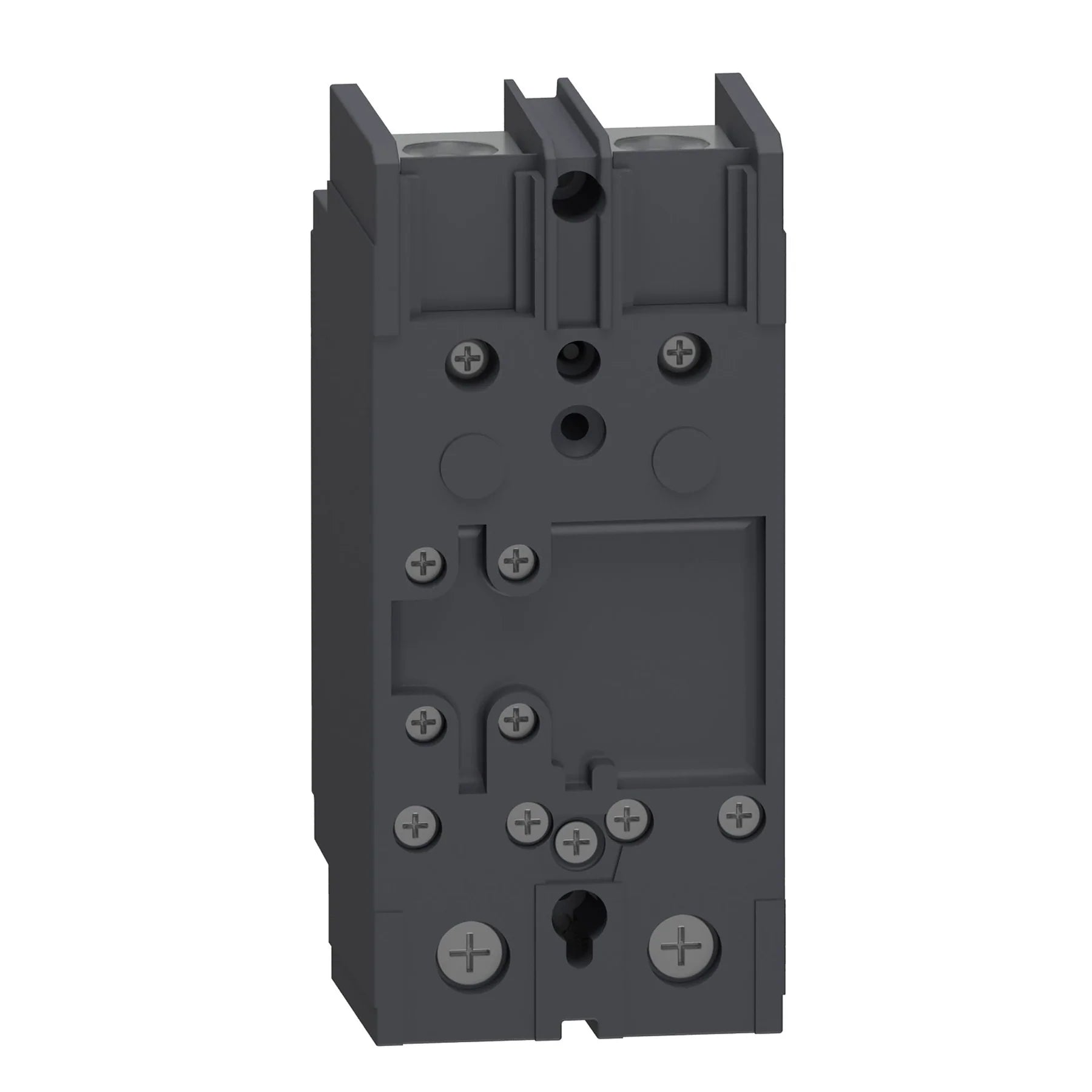

Product Description P/N: QBL22225
Description
The QBL22225 is a PowerPacT Q-Frame circuit breaker by Schneider Electric, designed for overcurrent protection and switching in 240VAC systems. This breaker has a 225A current rating, 2 poles, and operates at 240VAC with a 10kA interrupting rating at 208Y/120VAC and 240VAC. It features thermal magnetic trip protection and includes lugs on both the line and load sides for electrical connections.
Technical Specifications
|
Part # |
QBL22225 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Range |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
225 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
B |
|
Breaking capacity |
10 kA 120/208 V AC 50/60 Hz UL |
|
|
10 kA 240 V AC 50/60 Hz UL |
|
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV UL |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2400 A |
|
Magnetic hold current |
1200 A |
|
Continuous current rating |
80 % |
|
Utilisation category |
Category A |
|
Mechanical durability |
1000 cycles loaded |
|
|
5000 cycles no load |
|
Local signalling |
1 trip indicator (green) |
|
Mounting mode |
Unit mount (lug) |
|
Mounting Support |
Lug |
|
Tightening torque |
247.82 lbf.in (28 N.m) |
|
|
0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power wire stripping length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
Information About QBL22225
The QBL22225 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. This circuit breaker is rated for an operational voltage of 240VAC and provides thermal magnetic trip protection. The PowerPacT Q-Frame circuit breakers are available in both 2-pole and 3-pole unit mount and I-Line constructions.
This specific model, the QBL22225, is a 2-pole circuit breaker with a line rated current of 225A. It has an interrupting rating of 10kA at both 208Y/120VAC and 240VAC. The circuit breaker includes lugs on both the line and load sides, ensuring secure connections. The control type for this circuit breaker is an operating handle, and it features an integral push-to-trip button on the cover, which allows for manual tripping of the circuit breaker.
The QBL22225 circuit breaker employs thermal magnetic trip unit technology. The magnetic tripping current is set at 2400A, while the magnetic hold current is 1200A. The continuous current rating for this unit is 80%, ensuring efficient operation under consistent loads. The rated impulse withstand voltage is 8kV as per UL standards, providing robust protection against voltage spikes.
