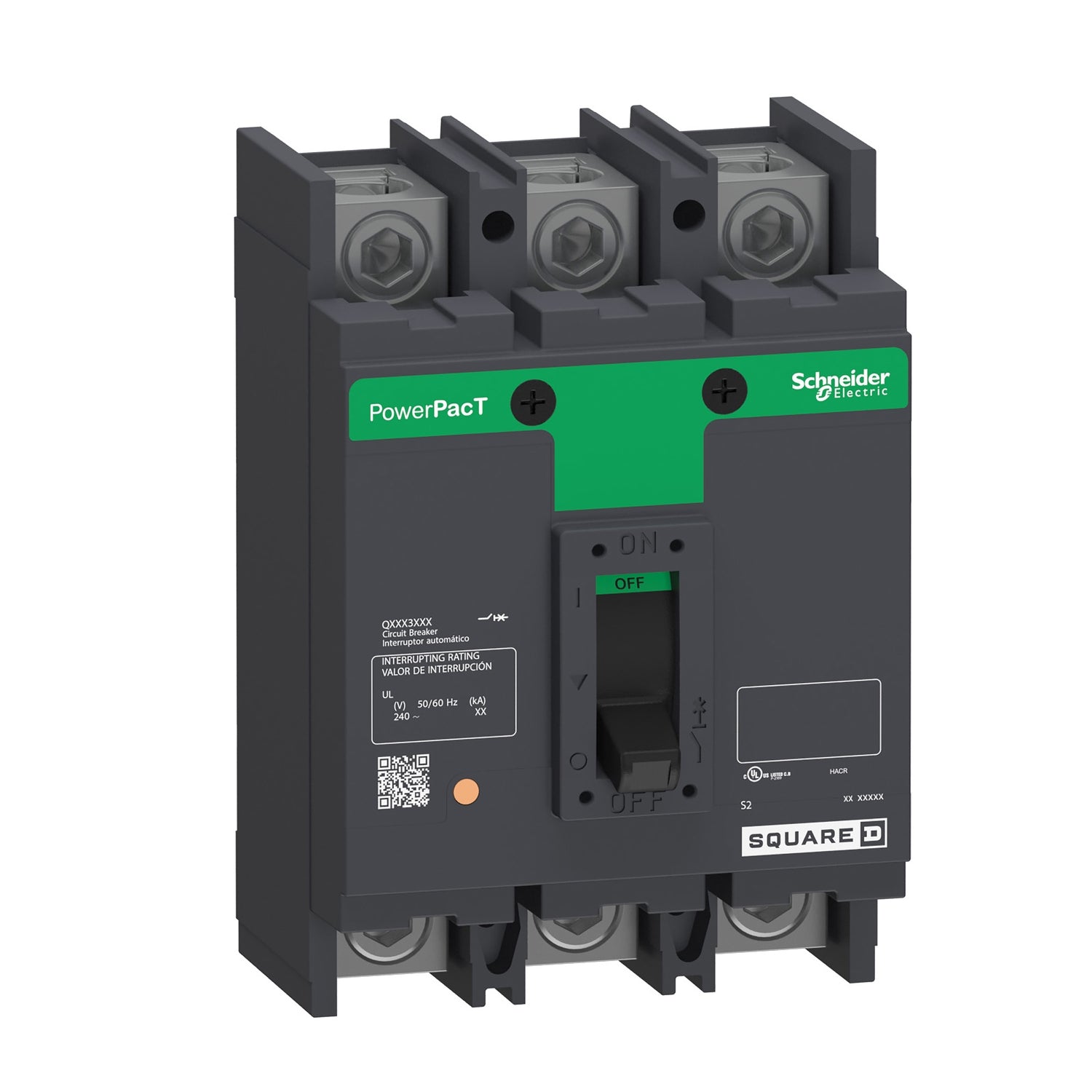

QBL32100 | Schneider Electric Circuit Breaker, PowerPacT Q
- Regular price
- $285.00
- Sale price
- $285.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBL32100
Description
The QBL32100 is a PowerPacT Q-Series circuit breaker designed for overcurrent protection and switching tasks in 240VAC systems. With a thermal magnetic trip mechanism, it ensures effective protection against overloads and short circuits.
This 3-pole circuit breaker is suitable for various installations and is available in both unit mount and I-Line configurations. Featuring an integral push-to-trip button in the cover, it allows for manual tripping when necessary.
Equipped with lugs on both the line and load sides, this unit facilitates secure connections. With an interrupting rating of 10kA at 208Y/120VAC and 240VAC, it ensures reliable performance under varying load conditions.
The QBL32100 circuit breaker has a continuous current rating of 100A, providing ample capacity for electrical systems. Compliant with UL, CSA, and NOM standards, and IEC certified, it meets stringent industry requirements for quality and safety.
Technical Specifications
|
Part # |
QBL32100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit Breaker |
|
Device Application |
Distribution |
|
[In] Rated Current |
100 A |
|
Number of Poles |
3P |
|
Control Type |
Operating Handle |
|
Breaking Capacity Code |
B |
|
[Ue] Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Mechanical Durability |
1000 cycles loaded, 5000 cycles no load |
|
Local Signalling |
1 trip indicator green |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Electrical Connection |
Lugs, Load; Lugs, Line |
|
Tightening Torque |
247.82 lbf.in (28 N.m) AWG 4...300 kcmil |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About QBL32100
The QBL32100 circuit breaker, belonging to the PowerPacT Q series, is engineered to deliver overcurrent protection and facilitate switching operations within 240VAC systems. Its primary function is to safeguard electrical circuits from excessive currents and to ensure uninterrupted power flow. Operating at an operational voltage of 240VAC, this circuit breaker employs a thermal magnetic trip mechanism to provide reliable protection against overloads and short circuits.
Designed for versatility, PowerPacT Q circuit breakers come in both 2 and 3-pole configurations and are compatible with unit mount and I-Line constructions, catering to various installation requirements. An integral push-to-trip button integrated into the cover allows for manual circuit interruption when necessary, enhancing operational flexibility.
The QBL32100 features lugs on both the line and load sides, enabling secure electrical connections. With a rating of 100A and three poles, this circuit breaker is suitable for a wide range of applications requiring robust overcurrent protection. It boasts an interrupting rating of 10kA at 208Y/120VAC and 240VAC, ensuring efficient circuit interruption under fault conditions.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
