QBL32125 | Schneider Electric Circuit Breaker
- Regular price
- $679.00
- Sale price
- $679.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBL32125
Description

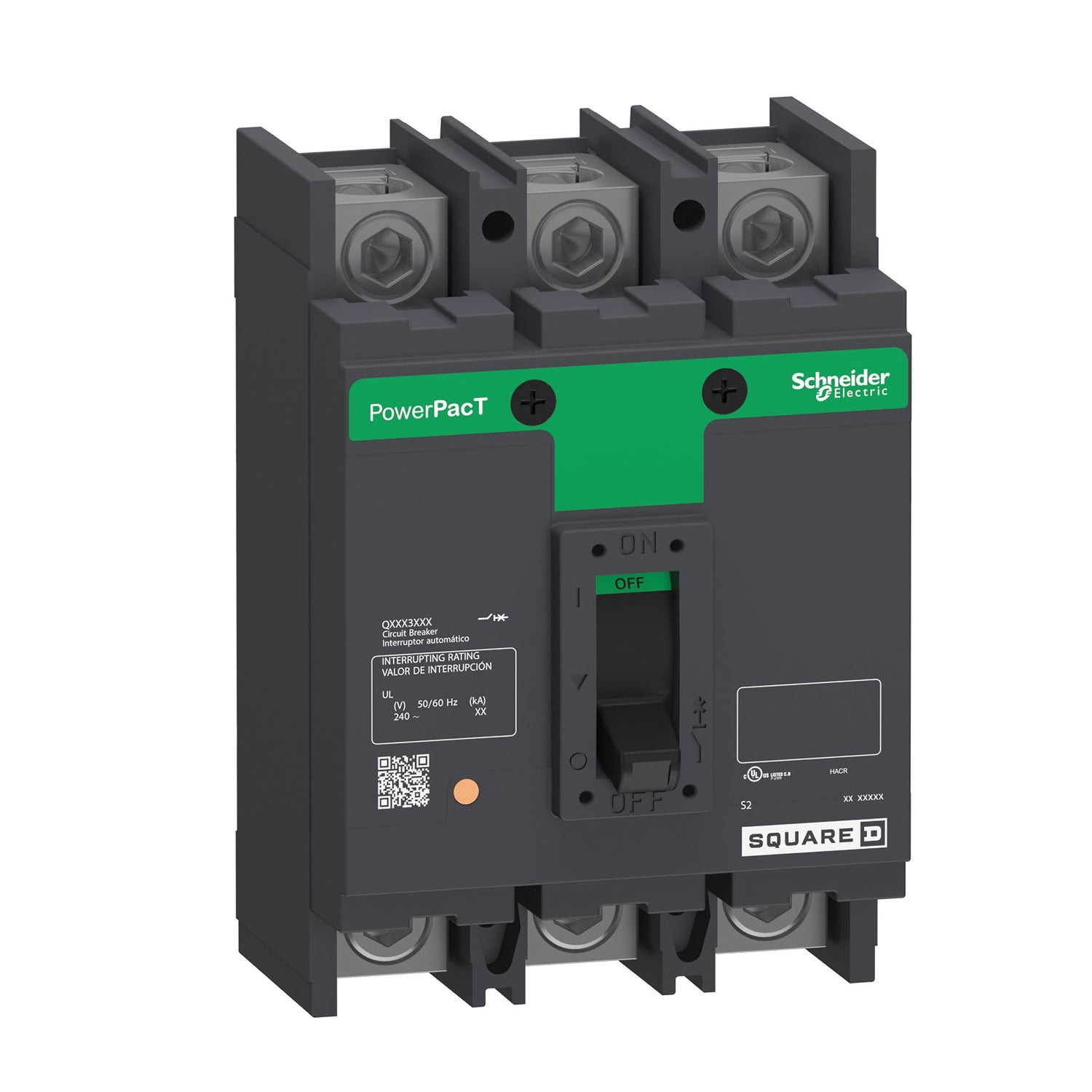

The PowerPacT Q-Frame circuit breakers, designated QBL32125, are essential components for protecting and controlling 240VAC systems. Designed with thermal magnetic trip technology, these breakers ensure reliable overcurrent protection and circuit switching capabilities. They are available in both 2-pole and 3-pole configurations, suitable for unit mount and I-Line installations.
Featuring an integral push-to-trip button on the cover for manual circuit interruption, the QBL32125 breaker includes lugs on both the line and load sides, facilitating secure electrical connections. Rated at 125A, this 3-pole circuit breaker supports operational voltages up to 240VAC.
Technical Specifications
|
Part # |
QBL32125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
125 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
B |
|
Breaking capacity |
10 kA @ 120/208 V AC 50/60 Hz UL<br>10 kA @ 240 V AC 50/60 Hz UL |
|
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV UL |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2400 A |
|
Magnetic hold current |
1200 A |
|
Continuous current rating |
80% |
|
Utilisation category |
Category A |
|
Mechanical durability |
1000 cycles loaded<br>5000 cycles no load |
|
Local signalling |
1 trip indicator (green) |
|
Mounting mode |
Unit mount lug |
|
Tightening torque |
247.82 lbf.in (28 N.m) for 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power wire stripping length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
3.93 in (99.82 mm) |
Information About QBL32125
The QBL32125 circuit breaker, part of the PowerPacT Q-Frame series, is designed specifically for overcurrent protection and switching applications within 240VAC systems. Operating at a rated operational voltage of 240VAC, this circuit breaker employs thermal magnetic trip protection, ensuring reliable performance under varying load conditions.
PowerPacT Q circuit breakers are versatile, available in both 2 and 3-pole configurations suitable for unit mount and I-Line constructions. They are equipped with an integral push-to-trip button integrated into the cover, facilitating manual tripping when necessary. The unit features lugs on both the line and load sides, enhancing ease of installation and connectivity.
Specifically, the QBL32125 model offers a continuous current rating of 125A across its 3 poles, with an interrupting capacity of 10kA at both 208Y/120VAC and 240VAC. This ensures robust protection against short circuits and overloads, meeting stringent safety standards for electrical systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
