QBL32175 | Schneider Electric Circuit Breaker
- Regular price
- $522.00
- Sale price
- $522.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QBL32175
Description

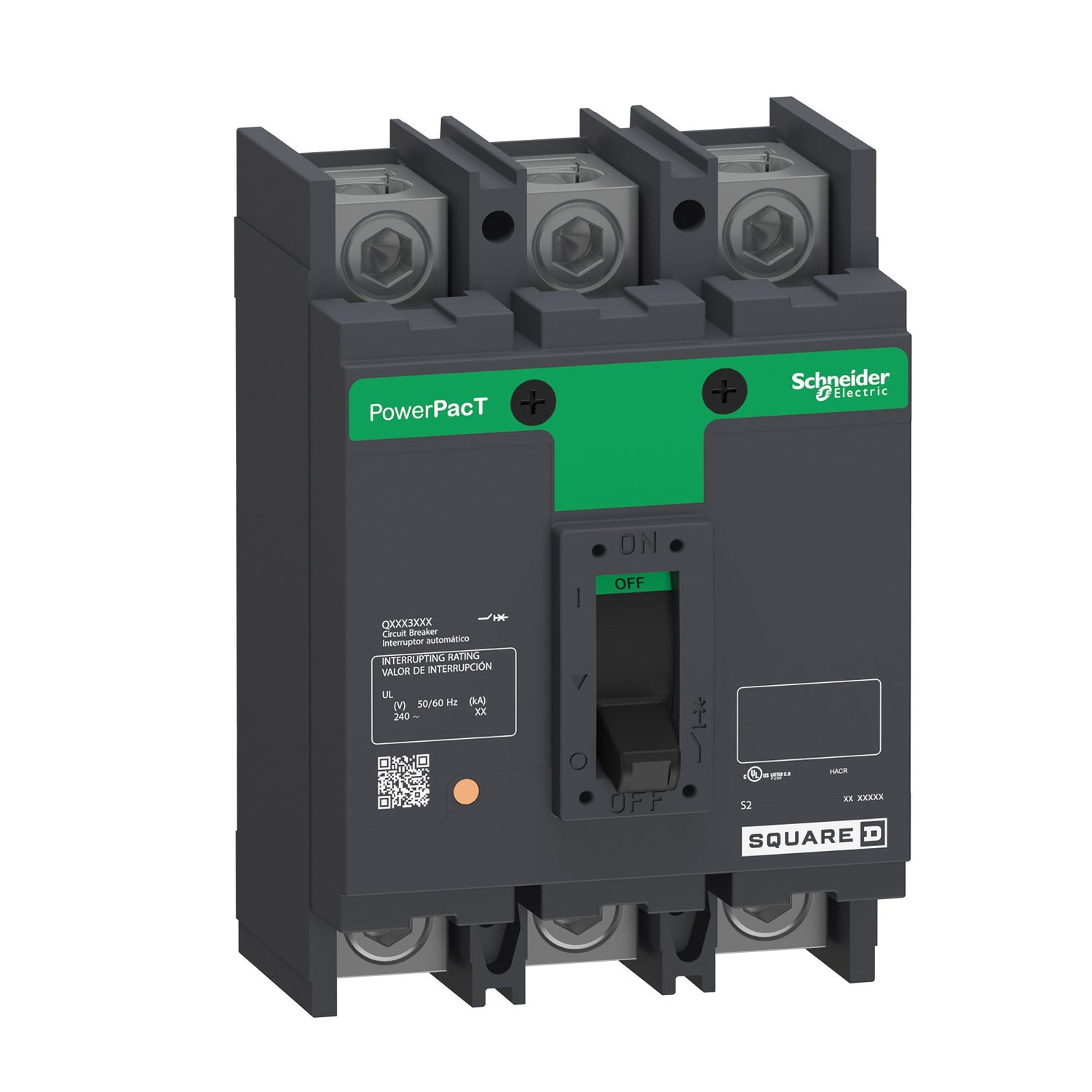

The QBL32175 is a PowerPacT Q-Frame circuit breaker rated for 175A. It features three poles and is designed for use on 240VAC systems. The circuit breaker provides thermal magnetic trip protection and has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This model includes lugs on both the line and load sides and has a continuous current rating of 80%. All PowerPacT Q circuit breakers include an integral push-to-trip button for manual tripping. The circuit breaker is available in 2 and 3-pole unit mount and I-Line constructions. It complies with UL, CSA, NOM standards, and is IEC certified.
Technical Specifications
|
Part # |
QBL32175 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
175 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
[Ue] Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilization Category |
Category A |
|
Local Signaling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount (lug) |
|
Mounting Support |
Lug |
|
Tightening Torque |
247.82 lbf.in (28 N.m) |
|
Wire Size |
0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About QBL32175
The QBL32175 circuit breaker, part of the PowerPacT Q-Frame series, serves as an essential component for overcurrent protection and switching within 240VAC systems. Operating at a rated operational voltage of 240VAC, it ensures reliable protection against overcurrents through its thermal magnetic trip mechanism.
Available in both 2 and 3-pole configurations, the PowerPacT Q circuit breakers offer versatile mounting options, including unit mount and I-Line constructions. Each unit features an integral push-to-trip button located on the cover, facilitating manual tripping when necessary.
Equipped with lugs on both the line and load sides, the QBL32175 breaker delivers efficient connectivity within electrical systems. With a current rating of 175A and three poles, it guarantees optimal performance in various applications.
The interrupting rating of the QBL32175 circuit breaker stands at 10kA, ensuring its ability to handle sudden short circuits effectively. This rating applies to both 208Y/120VAC and 240VAC systems, providing robust protection across different voltage levels.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
