QBL32225 | Schneider Electric Circuit Breaker
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

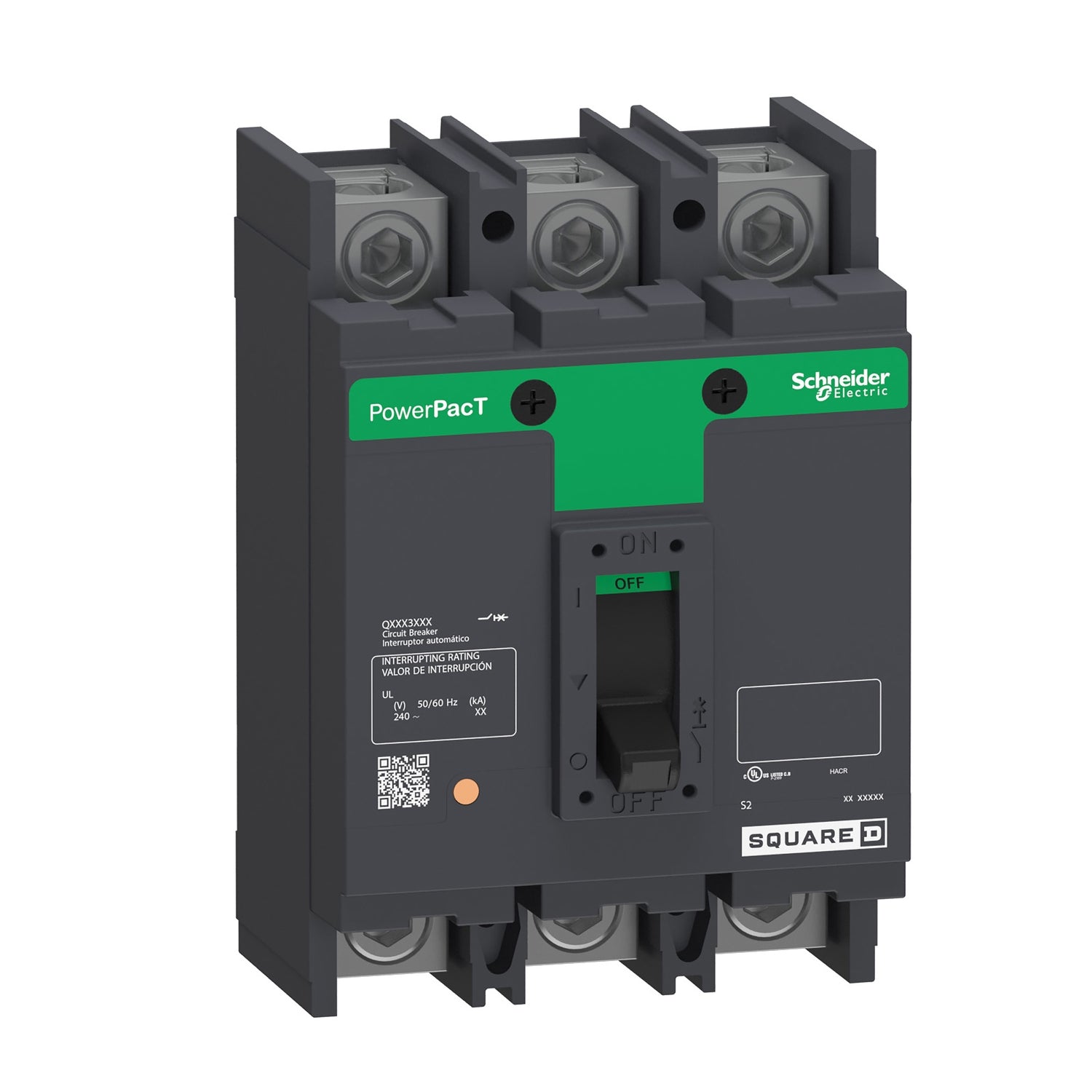

Product Description P/N: QBL32225
Description
The QBL32225 is a PowerPacT Q series circuit breaker designed for overcurrent protection and switching in 240VAC systems. With a 225A rating and 3-pole configuration, it operates at the rated voltage of 240VAC. Equipped with thermal magnetic trip protection, it ensures reliable interruption of electrical faults.
These circuit breakers are available in both 2 and 3-pole configurations and can be mounted as unit mount or I-Line constructions. Featuring an integral push-to-trip button, manual tripping of the breaker is facilitated.
Technical Specifications
|
Part # |
QBL32225 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
225 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
B |
|
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV UL |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2400 A |
|
Magnetic hold current |
1200 A |
|
Continuous current rating |
80 % |
|
Utilisation category |
Category A |
|
Local signalling |
1 trip indicator (green) |
|
Mounting mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Tightening torque |
247.82 lbf.in (28 N.m) |
|
Power wire stripping length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit breaker application |
HACR rated |
Information About QBL32225
The QBL32225 is a circuit breaker belonging to the PowerPacT Q series, primarily utilized for overcurrent protection and switching within 240VAC systems. Featuring a 225A rating and 3-pole configuration, it operates at the rated voltage of 240VAC. Equipped with thermal magnetic trip protection, it ensures efficient interruption of electrical faults.
PowerPacT Q circuit breakers, inclusive of the QBL32225 model, are available in both 2 and 3-pole configurations, suitable for unit mount and I-Line constructions. All models within this series feature an integral push-to-trip button located within the cover, facilitating manual circuit interruption.
The QBL32225 unit is designed with lugs on both the line and load sides, ensuring secure connections within the electrical system.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
