QBM22150TN | Schneider Electric Circuit Breaker, PowerPacT Q
- Regular price
- $674.00
- Sale price
- $674.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

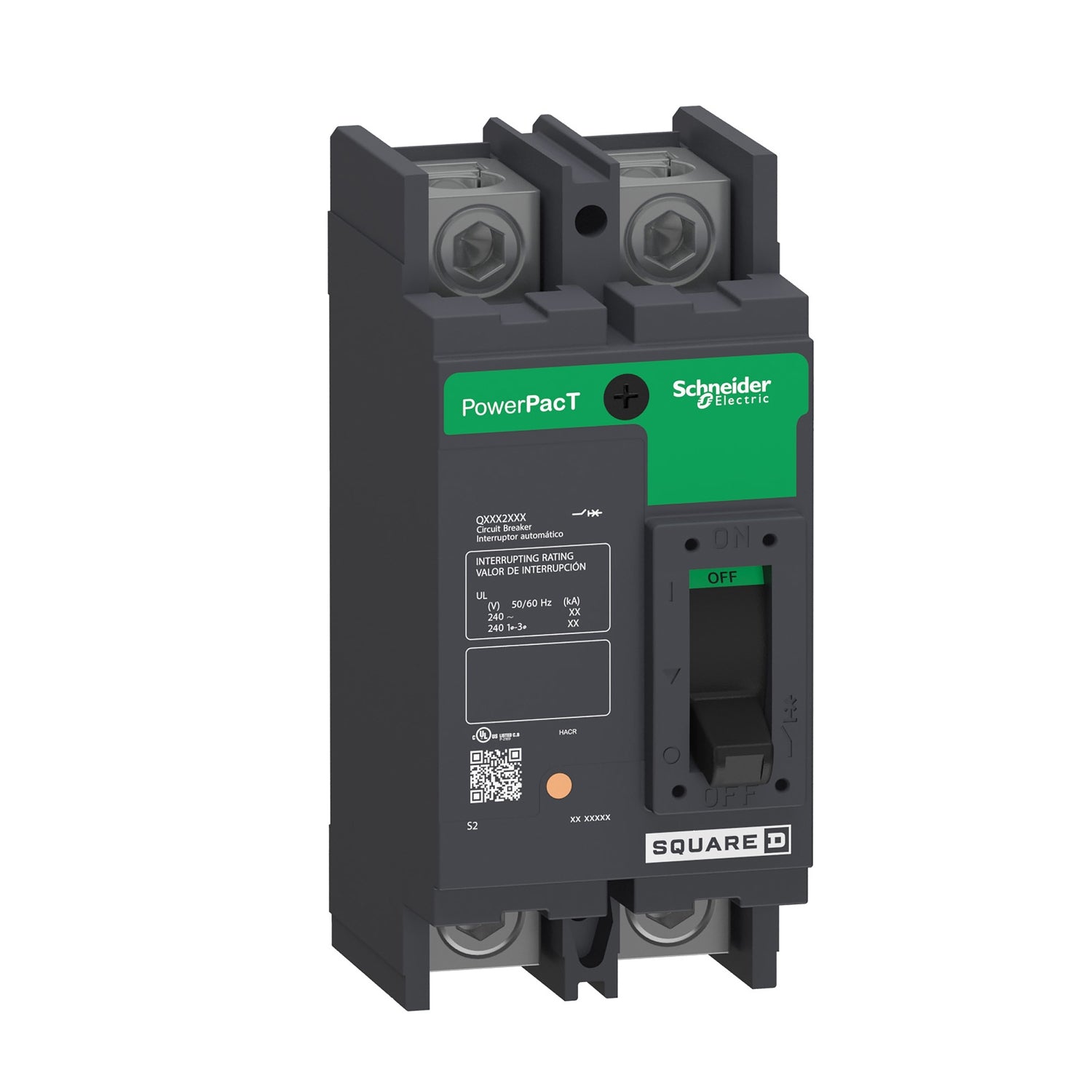

Product Description P/N: QBM22150TN
Description
The QBM22150TN is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching on 240VAC systems. Operating at a rated voltage of 240VAC, it offers thermal magnetic trip protection. Available in 2 and 3-pole unit mount and I-Line constructions, PowerPacT Q circuit breakers feature an integral push-to-trip button in the cover for manual tripping.
This unit is equipped with lugs on the load side and terminal nuts on the line side, with studs on the load end and no nuts and washers. With a rating of 150A and 2 poles, it boasts an interrupting rating of 10kA at 208Y/120VAC and 240VAC, with a continuous current rating of 80%.
Technical Specifications
|
Part # |
QBM22150TN |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
150 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Electrical Connection |
Lugs, line; Terminal nut, load |
|
Tightening Torque |
247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About QBM22150TN
The QBM22150TN is a PowerPacT Q-Series circuit breaker designed for overcurrent protection and switching applications in 240VAC systems. Featuring a thermal magnetic trip mechanism, it ensures effective protection against overloads and short circuits.
This circuit breaker is configured as a 2-pole unit, suitable for various installations. PowerPacT Q circuit breakers are adaptable to both unit mount and I-Line constructions, offering flexibility in deployment.
Equipped with an integral push-to-trip button in the cover, it allows manual tripping when necessary, enhancing safety and control. The unit is designed with lugs on the load side and terminal nuts on the line side, facilitating secure connections.
With an interrupting rating of 10kA at 208Y/120VAC and 240VAC, this circuit breaker ensures reliable performance under varying load conditions. It has a continuous current rating of 150A, providing ample capacity for electrical systems.
