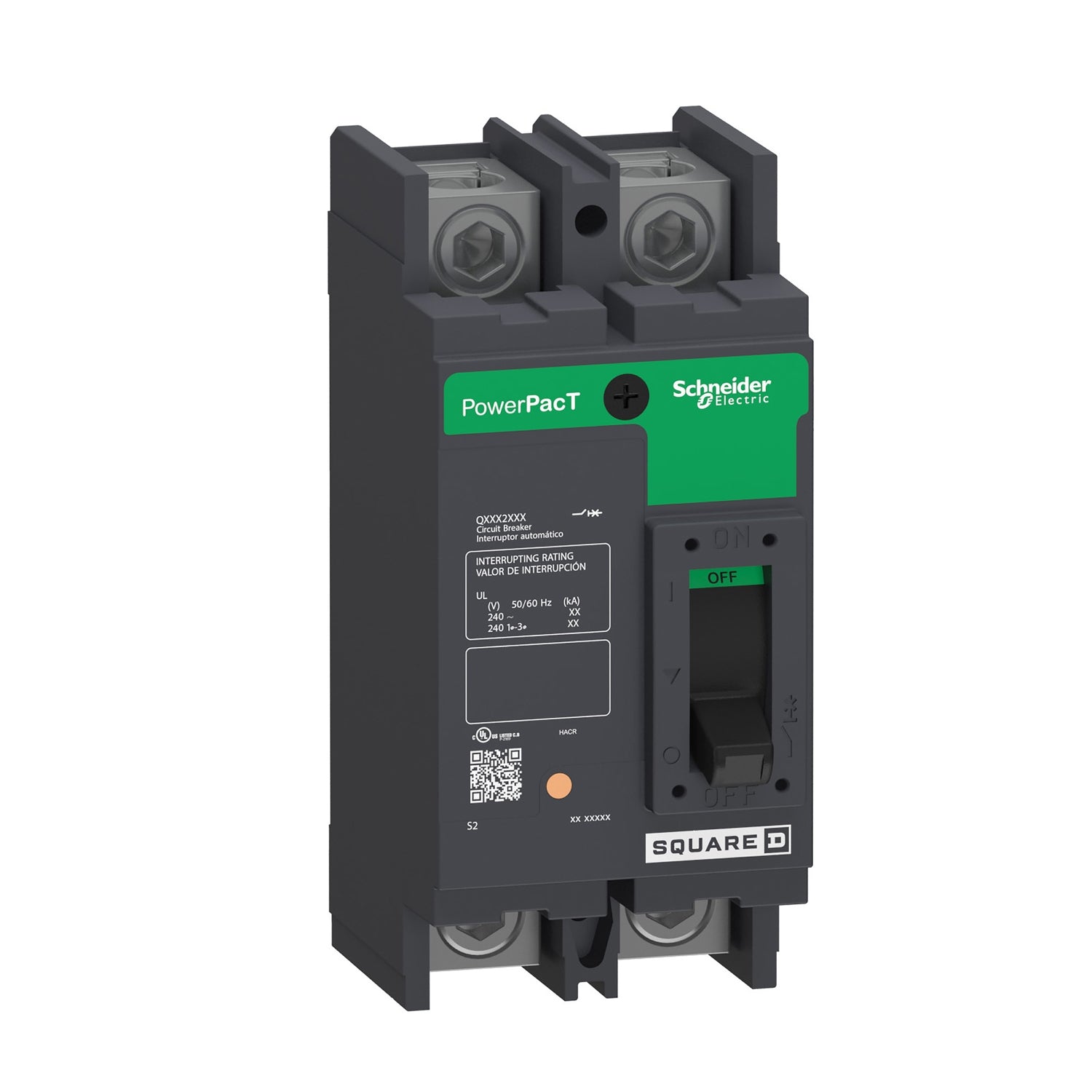

QBM22200TN | Schneider Electric Circuit Breaker
QBM22200TN | Schneider Electric Circuit Breaker
Part #: QBM22200TN Manufactured by: Schneider Electric

QBM22200TN | Schneider Electric Circuit Breaker

Regular price
$932.00
Sale price
$932.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The QBM22200TN is a PowerPacT Q series circuit breaker designed for overcurrent protection and switching in 240VAC systems...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: QBM22200TN
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
QBM22200TN | Schneider Electric Circuit Breaker
    QBM22200TN | Schneider Electric Circuit Breaker
QBM22200TN | Schneider Electric Circuit Breaker
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: QBM22200TN

Description / Specifications

Description

The QBM22200TN is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. It features a 200A rating, 2-pole configuration, and is equipped with lugs for connection. Employing thermal magnetic trip protection, it operates at 240VAC operational voltage. The unit is characterized by an interrupting rating of 10kA at 208Y/120VAC and 240VAC, with a continuous current rating of 80%. Its design includes integral push-to-trip functionality for manual circuit interruption. Additionally, it conforms to UL, CSA, and NOM standards, and holds IEC certification.



Technical Specifications




Part #

QBM22200TN

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Line Rated Current

200 A

Number of Poles

2P

Control Type

Operating handle

Breaking capacity code

B

[Ue] rated operational voltage

240 V AC 50/60 Hz UL

Network Frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV UL

Trip unit technology

Thermal-magnetic

Magnetic tripping current

2400 A

Magnetic hold current

1200 A

Continuous current rating

80 %

Utilisation category

Category A

Mechanical durability

1000 cycles loaded

Local signalling

1 trip indicator (green)

Mounting mode

Unit mount lug

Mounting Support

Lug

Electrical connection

Lugs (line), Terminal nut (load)

Tightening torque

247.82 lbf.in (28 N.m)

Power wire stripping length

0.87 in (22 mm)

Height

6.47 in (164.34 mm)

Width

3 in (76.20 mm)

Depth

3.93 in (99.82 mm)

Circuit breaker application

HACR rated





Information About QBM22200TN

The QBM22200TN is a circuit breaker belonging to the PowerPacT Q series, designed primarily for overcurrent protection and switching within 240VAC systems. Featuring a 200A rating and a 2-pole configuration, it operates at an operational voltage of 240VAC. Employing thermal magnetic trip protection, it ensures efficient response to overcurrent situations.

PowerPacT Q circuit breakers are versatile, available in both 2 and 3-pole configurations, suitable for unit mount and I-Line constructions. Integral to their design is a push-to-trip button located within the cover, facilitating manual circuit interruption when necessary.

In terms of connectivity, the QBM22200TN is equipped with lugs on the load side and terminal nuts on the line side, ensuring secure connections. Notably, it features studs on the load end without accompanying nuts and washers.
