QBP22150TM | Schneider Electric Circuit Breaker
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

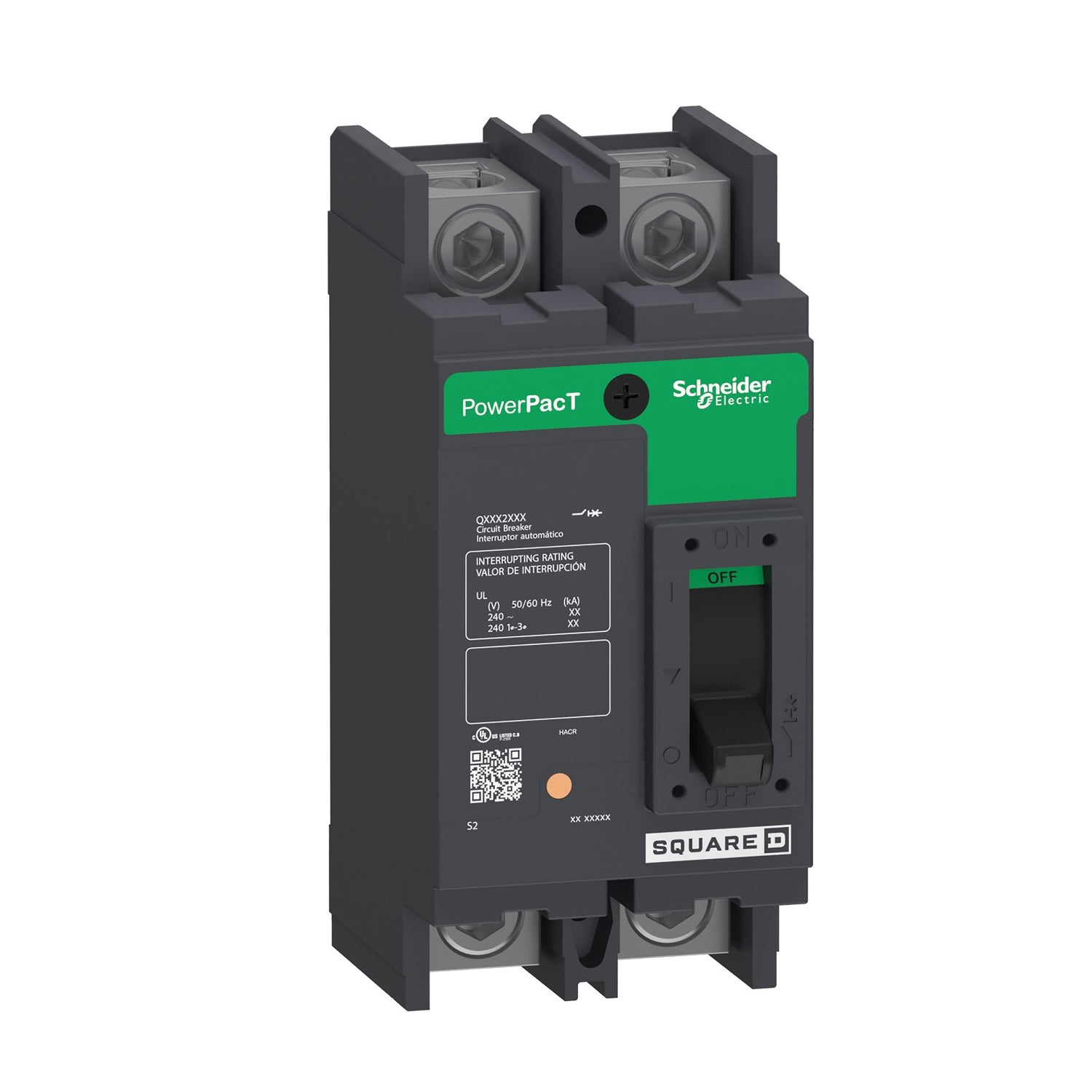

Product Description P/N: QBP22150TM
Description
QBP22150TM is a Circuit Breaker from the PowerPacT Q series, designed for overcurrent protection and switching in 240VAC systems. This circuit breaker is rated for 240VAC operational voltage and offers thermal magnetic trip protection.
Featuring a 2-pole configuration, it is available in unit mount and I-Line constructions, providing flexibility for various installation requirements. All PowerPacT circuit breakers are equipped with an integral push-to-trip button in the cover, allowing for manual tripping when necessary.
Technical Specifications
|
Part # |
QBP22150TM |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
150 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
Breaking Capacity |
10 kA 120/208 V AC 50/60 Hz UL |
|
|
10 kA 240 V AC 50/60 Hz UL |
|
Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Local Signalling |
1 trip indicator green) |
|
Mounting Mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Tightening Torque |
247.82 lbf.in (28 N.m) |
|
Wire Size |
0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About QBP22150TM
The QBP22150TM is a circuit breaker belonging to the PowerPacT Q series, designed specifically for overcurrent protection and switching within 240VAC systems. It operates at a rated operational voltage of 240VAC and offers thermal magnetic trip protection, ensuring reliable performance under varying load conditions.
These circuit breakers are versatile, available in both 2 and 3-pole configurations, and offered in unit mount and I-Line constructions to suit diverse installation needs. Each unit features an integral push-to-trip button located on the cover, facilitating manual tripping when necessary.
In terms of connections, the QBP22150TM is equipped with terminal nuts on the line side and lugs on the load side. Additionally, it features studs on the line end with accompanying nuts and washers, ensuring secure and reliable connections.
With a current rating of 150A, this 2-pole circuit breaker offers substantial capacity for handling electrical loads. It boasts an interrupting rating of 10kA at both 208Y/120VAC and 240VAC, providing effective protection against short circuits and overloads.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
QBP22150TM is a Circuit Breaker from the PowerPacT Q series, designed for overcurrent protection and switching in 240VAC systems. This circuit breaker is rated for 240VAC operational voltage and offers thermal magnetic trip protection.
Featuring a 2-pole configuration, it is available in unit mount and I-Line constructions, providing flexibility for various installation requirements. All PowerPacT circuit breakers are equipped with an integral push-to-trip button in the cover, allowing for manual tripping when necessary.
Technical Specifications
|
Part # |
QBP22150TM |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
150 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
B |
|
Breaking Capacity |
10 kA 120/208 V AC 50/60 Hz UL |
|
|
10 kA 240 V AC 50/60 Hz UL |
|
Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Local Signalling |
1 trip indicator green) |
|
Mounting Mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Tightening Torque |
247.82 lbf.in (28 N.m) |
|
Wire Size |
0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About QBP22150TM
The QBP22150TM is a circuit breaker belonging to the PowerPacT Q series, designed specifically for overcurrent protection and switching within 240VAC systems. It operates at a rated operational voltage of 240VAC and offers thermal magnetic trip protection, ensuring reliable performance under varying load conditions.
These circuit breakers are versatile, available in both 2 and 3-pole configurations, and offered in unit mount and I-Line constructions to suit diverse installation needs. Each unit features an integral push-to-trip button located on the cover, facilitating manual tripping when necessary.
In terms of connections, the QBP22150TM is equipped with terminal nuts on the line side and lugs on the load side. Additionally, it features studs on the line end with accompanying nuts and washers, ensuring secure and reliable connections.
With a current rating of 150A, this 2-pole circuit breaker offers substantial capacity for handling electrical loads. It boasts an interrupting rating of 10kA at both 208Y/120VAC and 240VAC, providing effective protection against short circuits and overloads.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
