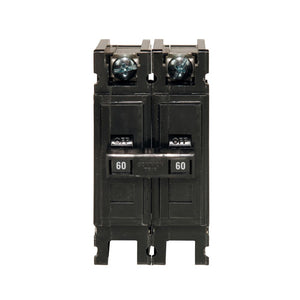

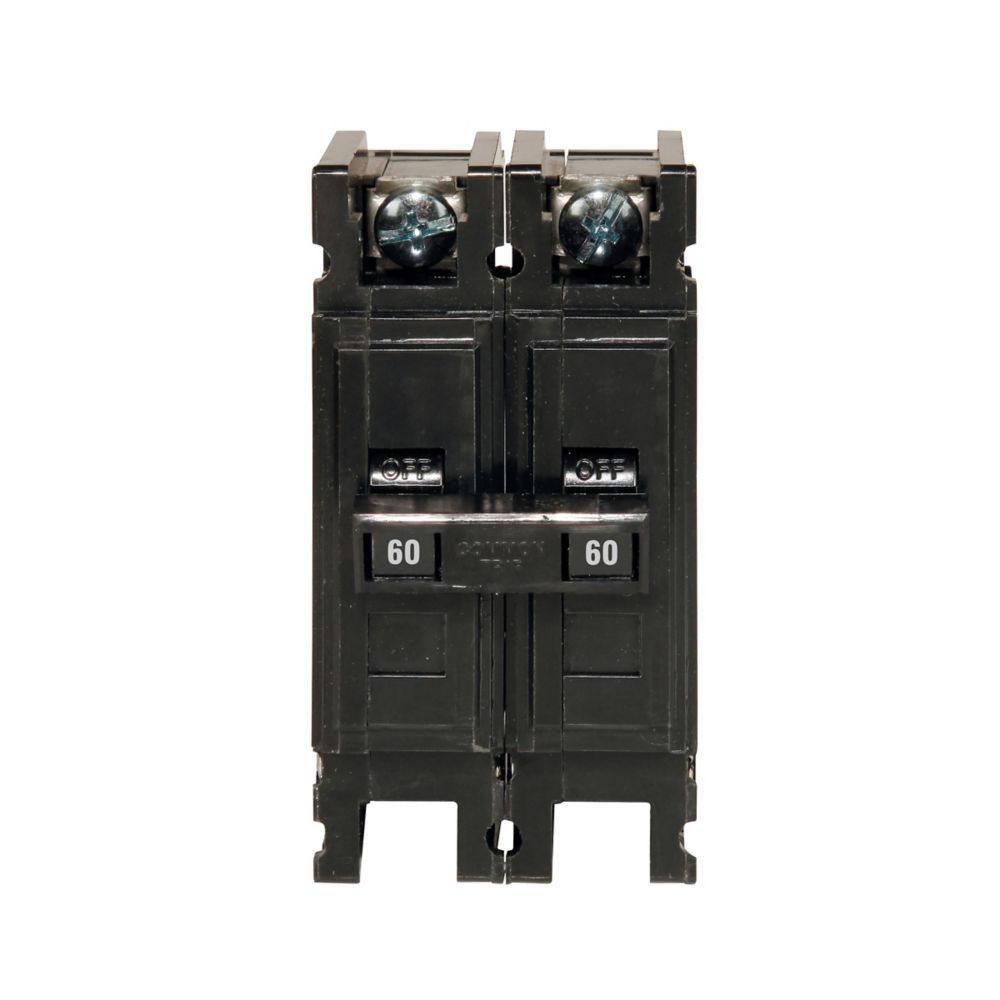

QC2060 | Eaton 60A Two-Pole 120/240V Thermal Magnetic Feed-Thru Circuit Breaker
- Regular price
- $99.00
- Sale price
- $99.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QC2060
Description
The Eaton QC2060 is a two-pole thermal magnetic circuit breaker designed for 60A protection in 120/240V single-phase systems. Its fixed non-interchangeable trip unit, box lug terminals, and broad DC interrupt ratings support reliable operation in residential and commercial installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | QC2060 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Quicklag |
| Pole | 2 |
| Amp | 60 A |
| Volt | 120/240 VAC |
| Phase | 1 |
| Connection | Feed-Thru |
| Type | QC |
| Functions | LI – Long-Time and Instantaneous |
| Protection | Thermal Magnetic |
| AIC Ratings | 10 kA @ 120/240 VAC, 5 kA @ 24–48/62.5/80 VDC |
| Trip Unit | Fixed Thermal-Magnetic, Non-Interchangeable |
| Terminal Type | Box Lug Terminals |
| Wire Size (Line) | 14–10 AWG |
| Wire Size (Load) | 14–4 AWG |
| Application | Residential and Commercial Branch Circuit Protection |
| Temperature Rating | 40 °C |
Information About QC2060
The QC2060 is part of Eaton’s Quicklag series, engineered to provide reliable overcurrent and short-circuit protection in 120/240V single-phase systems. With a 60A rating and two-pole configuration, it is suitable for moderate-load applications such as HVAC equipment, subpanels, and general branch circuits. The breaker’s thermal magnetic LI trip unit ensures accurate long-time overload response and rapid interruption of fault currents, while its DC interrupting capability extends its use to low-voltage DC control circuits. Equipped with feed-thru construction and box lug terminals, the QC2060 offers secure wiring and straightforward installation in residential and commercial distribution panels.
Key Features
- 60A two-pole protection: Suitable for 120/240V single-phase branch and feeder circuits.
- Thermal magnetic LI trip unit: Provides long-time overload and instantaneous short-circuit response.
- Multi-rated interrupt capability: 10 kA at 120/240 VAC and 5 kA at several DC voltage levels.
- Feed-thru design: Supports direct wiring integration in distribution panels.
- Fixed non-interchangeable trip: Ensures consistent protective characteristics for long-term reliability.
- Box lug terminals: Accept a wide wire range for both line and load connections.
- Quicklag family compatibility: Designed for dependable performance in Eaton residential and commercial panels.
- 40 °C rating: Maintains stable operation under standard electrical conditions.
The QC2060 delivers the reliability and precision required for safe and effective circuit protection across residential and commercial electrical systems.
