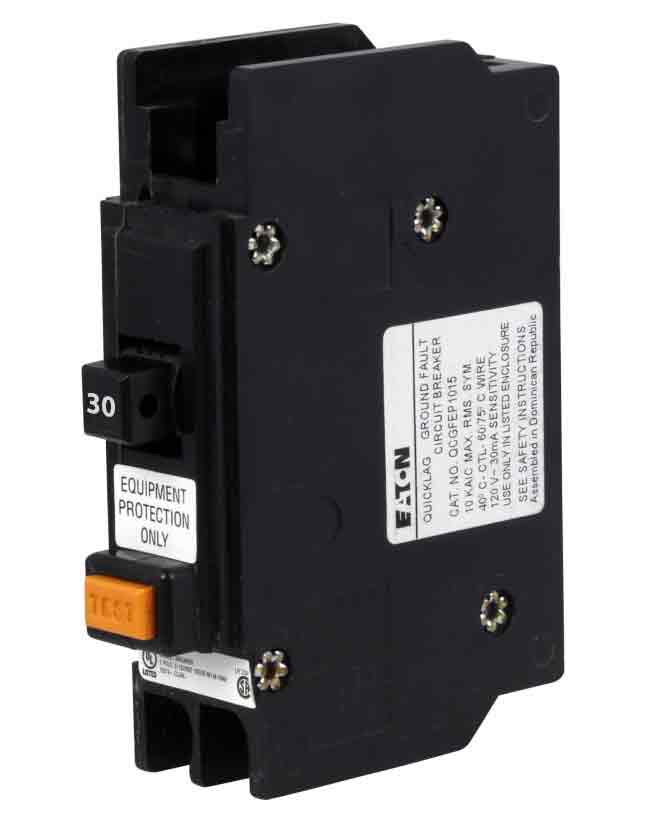

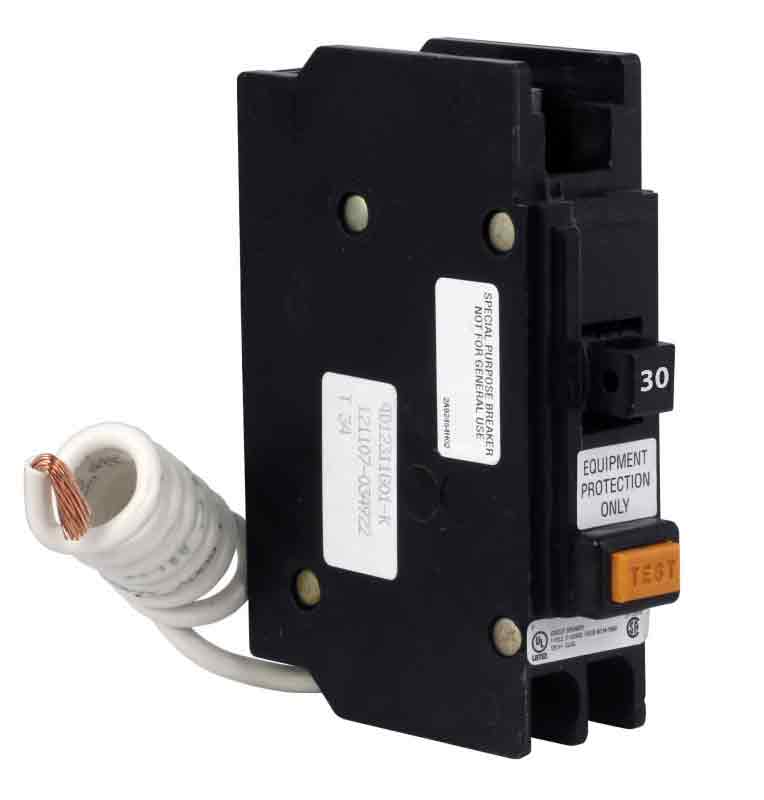

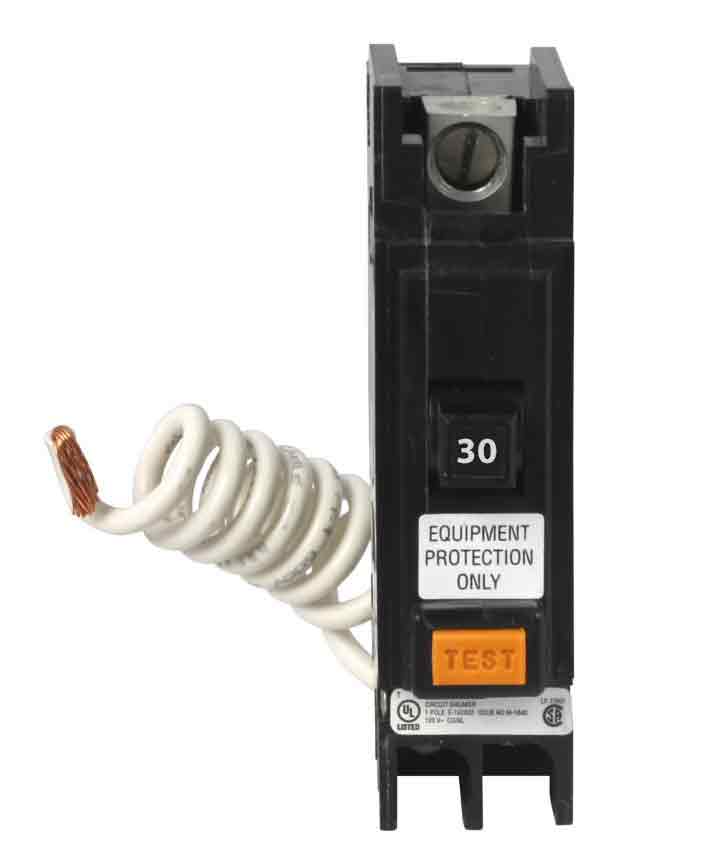

QCGFEP1030 | Eaton 30A 1-Pole 120V Ground Fault Circuit Breaker (QCGF Series)
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QCGFEP1030
Description
The Eaton QCGFEP1030 is a 1-pole molded case ground fault circuit breaker designed for reliable protection against overloads, short circuits, and ground faults. With a current rating of 30 amps and a voltage rating of 120V, it ensures safe and consistent performance in residential, commercial, and light industrial electrical systems. Its 10 kAIC interrupting capacity provides strong fault protection while maintaining compact form and simple installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton / Cutler-Hammer |
| Category | Circuit Protection |
| Part Number | QCGFEP1030 |
| Subcategory | Ground Fault Circuit Breaker |
| Series | QCGF |
| Frame Type | QCGF |
| Number of Poles | 1 |
| Amperage Rating | 30 A |
| Voltage Rating | 120 V |
| Interrupting Rating | 10 kAIC at 120V |
| Trip Type | Thermal-Magnetic |
| Protection Type | Ground Fault (30 mA Sensitivity) |
| Functions | LI – Long-Time and Instantaneous Trip |
| Connection Type | Feed-Thru |
| Terminal Type | Line and Load Side Lug |
| Phase | Single Phase |
| Temperature Rating | 40 °C |
| Approvals | UL Listed, CSA Certified |
| Dimensions (H × W × D) | 5.2 × 1.3 × 3.3 in |
| Mounting Type | Panel Mount |
| Manufacturer Part Number | QCGFEP1030 |
| Weight | 0.5 lbs |
Information About QCGFEP1030
The QCGFEP1030 is part of Eaton’s QCGF Series, featuring molded case circuit breakers engineered for dependable circuit and ground fault protection. It combines thermal-magnetic trip technology with integrated 30 mA ground fault sensing for enhanced safety. This unit uses a feed-thru connection type and includes both long-time and instantaneous trip functions for precise circuit management. Designed to meet UL and CSA standards, the QCGFEP1030 is ideal for single-phase 120V systems requiring both overload and personnel protection in compliance with modern safety codes.
Key Features
- Ground Fault Protection: Detects ground leakage currents exceeding 30 mA to prevent shock hazards.
- Thermal-Magnetic Trip Unit: Provides combined overload and short-circuit protection for dependable operation.
- High Interrupting Capacity: Rated 10 kAIC at 120V to ensure strong short-circuit performance.
- Feed-Thru Connection: Enables straightforward installation in standard panelboard applications.
- UL and CSA Approved: Certified for compliance with major North American safety standards.
- Compact Design: Space-efficient construction ideal for modern loadcenters and equipment panels.
- Fixed Trip Functions: Long-time and instantaneous trip modes ensure accurate fault response.
- Durable Frame: Built with high-strength molded case materials for extended service life.
The QCGFEP1030 delivers the reliability and precision required for safe and efficient circuit and ground fault protection in residential and commercial electrical systems.
