QDA32100 | Schneider Electric Circuit Breaker
- Regular price
- $787.00
- Sale price
- $787.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

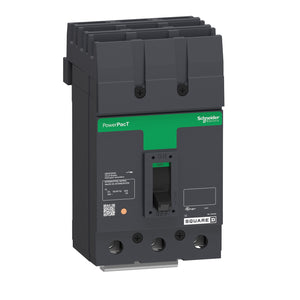

Product Description P/N: QDA32100
Description
The QDA32100 circuit breaker, belonging to the PowerPacT Q series, serves as an essential component for overcurrent protection and switching within 240VAC systems. Operating at a rated operational voltage of 240VAC, it employs thermal magnetic trip protection to ensure reliable performance.
Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, PowerPacT Q circuit breakers offer versatile installation options to suit various applications. Equipped with an integral push-to-trip button located in the cover, manual tripping of the circuit breaker is facilitated for enhanced safety and control.
Technical Specifications
|
Part Number |
QDA32100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
100 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
D |
|
Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Local Signalling |
1 trip indicator green) |
|
Mounting Mode |
I-Line bracket) |
|
Mounting Support |
Bracket |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Tightening Torque |
247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Phase Connection |
ABC |
|
Circuit Breaker Application |
HACR rated |
Information About QDA32100
The QDA32100 is a Circuit Breaker from the PowerPacT Q series, designed specifically for overcurrent protection and switching applications in 240VAC systems. With a rated operational voltage of 240VAC, this circuit breaker provides thermal magnetic trip protection.
PowerPacT Q circuit breakers are available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, offering versatility in installation options. All PowerPacT circuit breakers, including the QDA32100, feature an integral push-to-trip button in the cover for manual tripping.
Featuring I-Line terminations on the line side and mechanical lugs on the load side, the QDA32100 ensures secure connections in various electrical setups.
This PowerPacT Q circuit breaker, rated at 100A and 3 poles, boasts an impressive interrupting rating of 25kA at 208Y/120VAC and 240VAC, ensuring reliable performance under high fault conditions. Additionally, it maintains a continuous current rating of 80%, making it suitable for sustained electrical loads.
