Part #: QDA32200 Manufactured by: Schneider Electric
Regular price
$1,132.00
Sale price
$1,132.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
QDA32200 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. It ha...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: QDA32200
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: QDA32200

Description / Specifications

Description

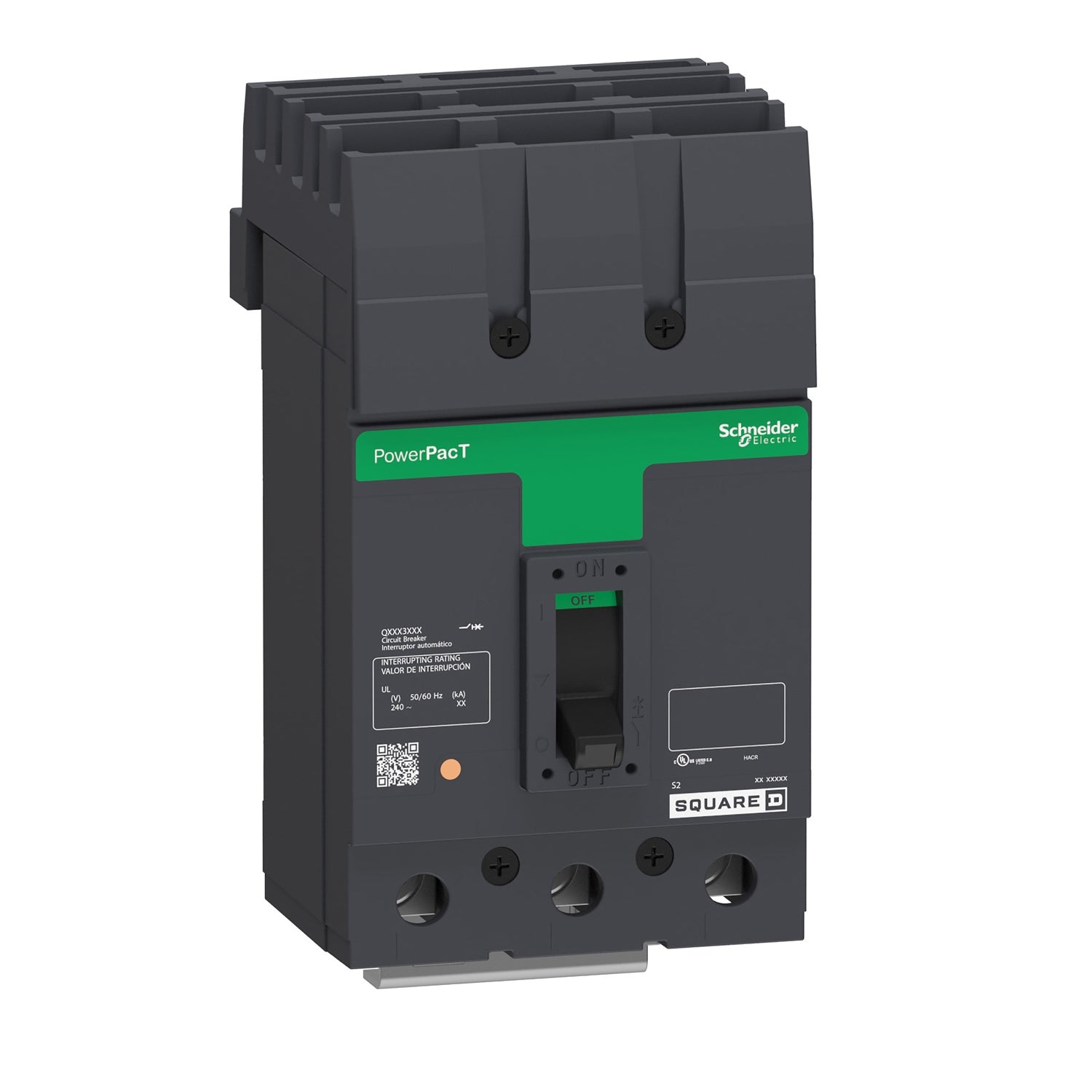

The QDA32200 is a PowerPacT Q-Frame circuit breaker with a current rating of 200A and a 3-pole configuration. It operates at 240VAC with a breaking capacity of 25kA. This circuit breaker features thermal magnetic trip protection and an 80% continuous current rating. The unit is designed for overcurrent protection and switching on 240VAC systems. It has I-Line terminations on the line side and mechanical lugs on the load side.



Technical Specifications

Part #

QDA32200

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product name

PowerPact Q

Product or Component Type

Circuit breaker

Device Application

Distribution Line

Rated Current

200 A

Number of Poles

3P

Control Type

Operating handle

Breaking capacity code

D

Breaking capacity

25 kA 120/208 V AC 50/60 Hz UL



25 kA 240 V AC 50/60 Hz UL

Rated operational voltage [Ue]

240 V AC 50/60 Hz UL

Network Frequency

50/60 Hz

Rated impulse withstand voltage [Uimp]

8 kV UL

Trip unit technology

Thermal-magnetic

Magnetic tripping current

2400 A

Magnetic hold current

1200 A

Continuous current rating

80 %

Utilisation category

Category A

Local signalling

1 trip indicator (green)

Mounting mode

I-Line bracket

Mounting Support

Bracket

Electrical connection

I-Line connection (line)



Lugs (load)

Mounting Height

4.5 in (114.30 mm)

Tightening torque

247.82 lbf.in (28 N.m)

Power wire stripping length

0.87 in (22 mm)

Height

6.47 in (164.34 mm)

Width

4.5 in (114.30 mm)

Depth

3.93 in (99.82 mm)

Phase connection

ABC





 Information About QDA32200

The QDA32200 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching on 240VAC systems. It is rated for a 240VAC operational voltage and provides thermal magnetic trip protection. PowerPacT Q circuit breakers are available in both 2-pole and 3-pole unit mount, as well as I-Line constructions. These circuit breakers feature an integral push-to-trip button located on the cover, allowing for manual tripping of the circuit breaker.

This particular unit, the QDA32200, has I-Line terminations on the line side and mechanical lugs on the load side. The circuit breaker is rated at 200A and has three poles. It possesses an interrupting rating of 25kA at both 208Y/120VAC and 240VAC. Additionally, the circuit breaker has a continuous current rating of 80%, configured for an ABC phase connection.

The PowerPacT Q-Frame circuit breakers are built to comply with various standards including UL, CSA, and NOM. They are also IEC certified. The device employs thermal-magnetic trip unit technology, which combines both thermal and magnetic tripping mechanisms to protect electrical systems from damage caused by overloads and short circuits.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The QDA32200 is a PowerPacT Q-Frame circuit breaker with a current rating of 200A and a 3-pole configuration. It operates at 240VAC with a breaking capacity of 25kA. This circuit breaker features thermal magnetic trip protection and an 80% continuous current rating. The unit is designed for overcurrent protection and switching on 240VAC systems. It has I-Line terminations on the line side and mechanical lugs on the load side.



Technical Specifications

Part #

QDA32200

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product name

PowerPact Q

Product or Component Type

Circuit breaker

Device Application

Distribution Line

Rated Current

200 A

Number of Poles

3P

Control Type

Operating handle

Breaking capacity code

D

Breaking capacity

25 kA 120/208 V AC 50/60 Hz UL



25 kA 240 V AC 50/60 Hz UL

Rated operational voltage [Ue]

240 V AC 50/60 Hz UL

Network Frequency

50/60 Hz

Rated impulse withstand voltage [Uimp]

8 kV UL

Trip unit technology

Thermal-magnetic

Magnetic tripping current

2400 A

Magnetic hold current

1200 A

Continuous current rating

80 %

Utilisation category

Category A

Local signalling

1 trip indicator (green)

Mounting mode

I-Line bracket

Mounting Support

Bracket

Electrical connection

I-Line connection (line)



Lugs (load)

Mounting Height

4.5 in (114.30 mm)

Tightening torque

247.82 lbf.in (28 N.m)

Power wire stripping length

0.87 in (22 mm)

Height

6.47 in (164.34 mm)

Width

4.5 in (114.30 mm)

Depth

3.93 in (99.82 mm)

Phase connection

ABC





 Information About QDA32200

The QDA32200 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching on 240VAC systems. It is rated for a 240VAC operational voltage and provides thermal magnetic trip protection. PowerPacT Q circuit breakers are available in both 2-pole and 3-pole unit mount, as well as I-Line constructions. These circuit breakers feature an integral push-to-trip button located on the cover, allowing for manual tripping of the circuit breaker.

This particular unit, the QDA32200, has I-Line terminations on the line side and mechanical lugs on the load side. The circuit breaker is rated at 200A and has three poles. It possesses an interrupting rating of 25kA at both 208Y/120VAC and 240VAC. Additionally, the circuit breaker has a continuous current rating of 80%, configured for an ABC phase connection.

The PowerPacT Q-Frame circuit breakers are built to comply with various standards including UL, CSA, and NOM. They are also IEC certified. The device employs thermal-magnetic trip unit technology, which combines both thermal and magnetic tripping mechanisms to protect electrical systems from damage caused by overloads and short circuits.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
