Product Description P/N: QDA32225

Description / Specifications

Description

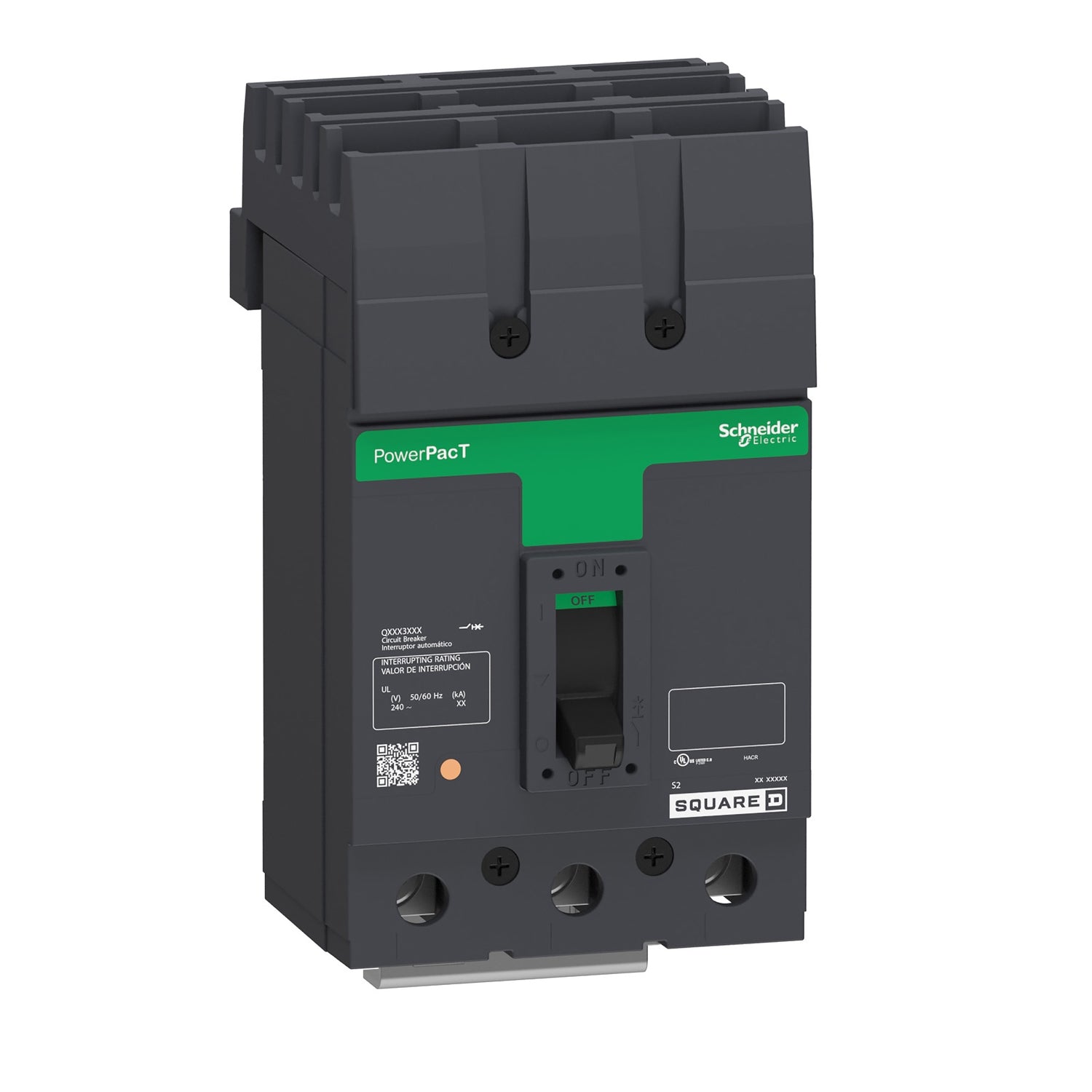

The QDA32225 circuit breaker, part of the PowerPacT Q-Frame series, is designed for robust overcurrent protection and circuit switching in 240VAC systems. Featuring a thermal magnetic trip mechanism, it ensures reliable interruption of current flow upon detecting overcurrent conditions, safeguarding connected equipment and circuits from potential damage.

Available in a 3-pole configuration with I-Line terminations on the line side and mechanical lugs on the load side, the QDA32225 is versatile for various installation requirements. It includes an integral push-to-trip button in the cover, allowing for manual circuit interruption when needed.





Technical Specifications

Part #

QDA32225

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product name

PowerPact Q

Product or Component Type

Circuit breaker

Device Application

Distribution Line

Rated Current

225 A

Number of Poles

3P

Control Type

Operating handle

Breaking capacity code

D

Breaking capacity

25 kA 120/208 V AC 50/60 Hz UL <br> 25 kA 240 V AC 50/60 Hz UL

[Ue] rated operational voltage

240 V AC 50/60 Hz UL

Network Frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV UL

Trip unit technology

Thermal-magnetic

Magnetic tripping current

2400 A

Magnetic hold current

1200 A

Continuous current rating

80 %

Utilisation category

Category A

Local signalling

1 trip indicator green

Mounting mode

I-Line bracket

Mounting Support

Bracket

Electrical connection

I-Line connection, line <br> Lugs, load

Mounting Height

4.5 in (114.30 mm)

Tightening torque

247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil)

Power wire stripping length

0.87 in (22 mm)

Height

6.47 in (164.34 mm)

Width

4.5 in (114.30 mm)

Depth

3.93 in (99.82 mm)

Phase connection

ABC



Information About QDA32225


The QDA32225 circuit breaker, part of the PowerPacT Q-Frame series, is designed specifically for overcurrent protection and circuit switching in 240VAC systems. Operating at a rated voltage of 240VAC, this breaker utilizes thermal magnetic trip technology to safeguard electrical circuits from overload and short circuits.

Available in both 2 and 3-pole configurations, including I-Line constructions, PowerPacT Q circuit breakers offer versatility in installation. Each breaker within this series features an integral push-to-trip button integrated into its cover, facilitating manual tripping when necessary. The QDA32225 model is equipped with I-Line terminations on the line side and mechanical lugs on the load side, ensuring secure electrical connections.

This specific PowerPacT Q circuit breaker is a 3-pole unit rated at 225A. It boasts an impressive interrupting rating of 25kA at both 208Y/120VAC and 240VAC, indicating its capability to safely interrupt faults under specified conditions. The continuous current rating is specified at 80%, optimized for efficient and reliable performance under normal operating conditions, particularly with an ABC phase connection.
