QDL22100 | Schneider Electric Circuit Breaker
- Regular price
- $439.00
- Sale price
- $439.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: QDL22100
Description

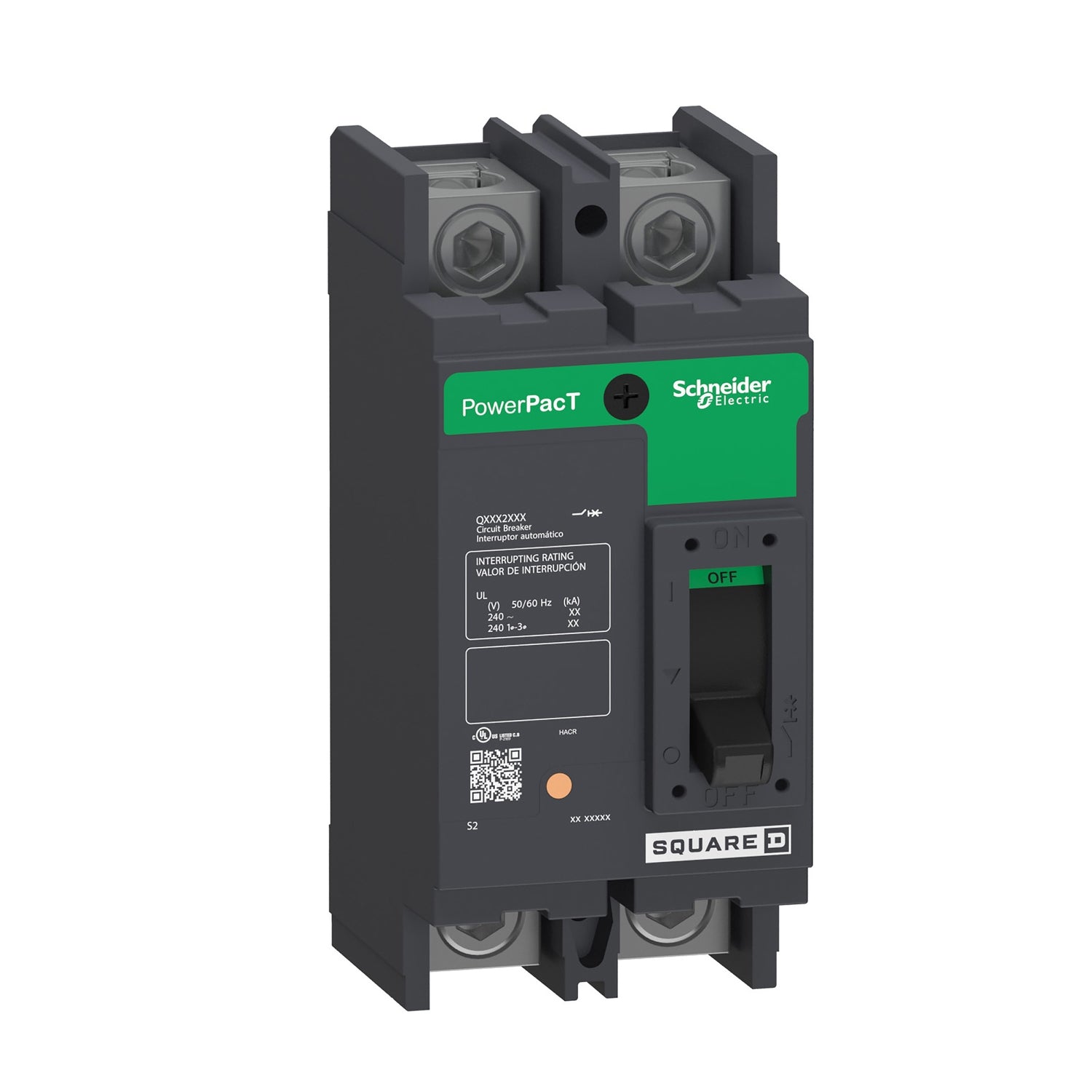

The QDL22100 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. It features thermal magnetic trip protection and is suitable for both 2 and 3-pole unit mount and I-Line configurations. This circuit breaker includes an integral push-to-trip button for manual operation and is equipped with lugs on both the line and load sides for secure connections. With a current rating of 100A, it offers an interrupting capacity of 25kA at 208Y/120VAC and 240VAC.
Technical Specifications
|
Part # |
QDL22100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Range |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
100 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
D |
|
Breaking capacity |
25 kA @ 120/208 V AC 50/60 Hz UL <br> 25 kA @ 240 V AC 50/60 Hz UL |
|
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV UL |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2400 A |
|
Magnetic hold current |
1200 A |
|
Continuous current rating |
80 % |
|
Utilisation category |
Category A |
|
Mechanical durability |
1000 cycles loaded <br> 5000 cycles no load |
|
Local signalling |
1 trip indicator green) |
|
Mounting mode |
Unit mount lug |
|
Mounting Support |
Lug |
Information About QDL22100
PowerPacT Q-Frame circuit breakers, such as the QDL22100, serve to safeguard 240VAC electrical systems by providing overcurrent protection and enabling switching operations. These circuit breakers are specifically designed for applications requiring reliability and safety in industrial and commercial settings.
Operating at a rated voltage of 240VAC, the PowerPacT Q circuit breakers utilize thermal magnetic trip technology to ensure efficient protection against overloads and short circuits. They are versatile, available in configurations accommodating 2 and 3 poles, suitable for both unit mount and I-Line installations.
A distinctive feature of the QDL22100 model is its inclusion of lugs on both the line and load sides, facilitating secure electrical connections. This configuration enhances ease of installation and maintenance in diverse electrical setups.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
