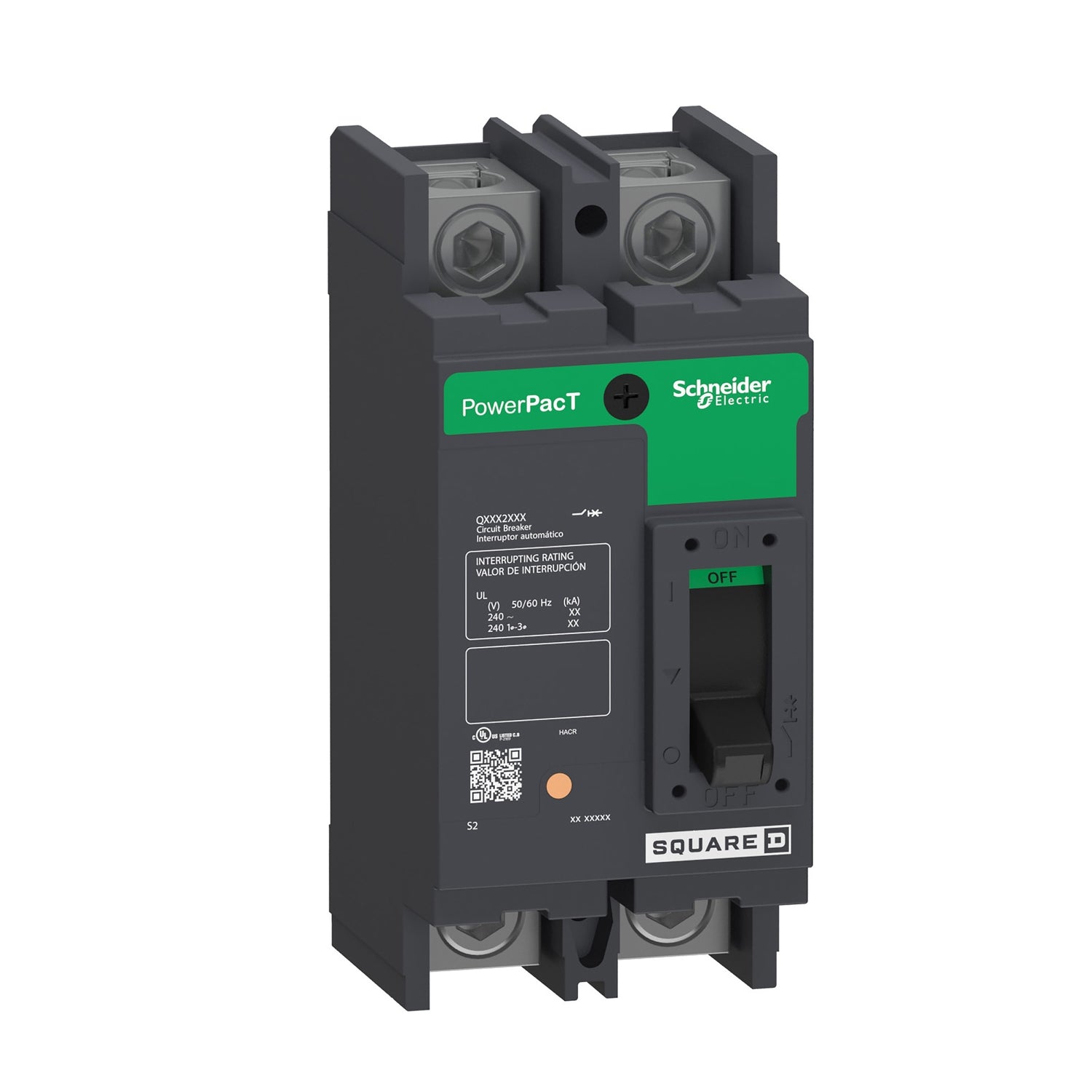

Product Description P/N: QDL22125
Description
The QDL22125 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. This 125A, 2-pole breaker features thermal magnetic trip protection and is equipped with lugs on both the line and load sides. It operates at a continuous current rating of 80% and has an interrupting rating of 25kA at both 208Y/120VAC and 240VAC operational voltages.
Technical Specifications
|
Part # |
QDL22125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range/Product Name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution line |
|
Rated Current |
125 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
D |
|
Breaking Capacity |
25 kA at 120/208 V AC 50/60 Hz UL |
|
|
25 kA at 240 V AC 50/60 Hz UL |
|
Rated Operational Voltage (Ue) |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Mechanical Durability |
1000 cycles loaded |
|
|
5000 cycles no load |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount (lug) |
|
Mounting Support |
Lug |
Information About QDL22125
The QDL22125 is a member of the PowerPacT Q-Frame series of circuit breakers designed for overcurrent protection and switching in 240VAC systems. It operates at a rated operational voltage of 240VAC and incorporates thermal magnetic trip protection, ensuring reliable operation under varying load conditions.
PowerPacT Q circuit breakers are versatile, available in both 2-pole and 3-pole configurations, supporting unit mount and I-Line constructions. Each breaker in the series features an integral push-to-trip button integrated into the cover, allowing for manual tripping when necessary. The QDL22125 specifically includes lugs on both the line and load sides, facilitating secure electrical connections.
This 125A, 2-pole circuit breaker boasts an interrupting rating of 25kA at 208Y/120VAC and 240VAC, indicating its capability to safely interrupt fault currents under specified conditions. It operates with a continuous current rating efficiency of 80%, ensuring sustained performance and operational reliability in industrial applications.
