QDL22175 | Schneider Electric Circuit Breaker
- Regular price
- $344.00
- Sale price
- $344.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QDL22175
Description

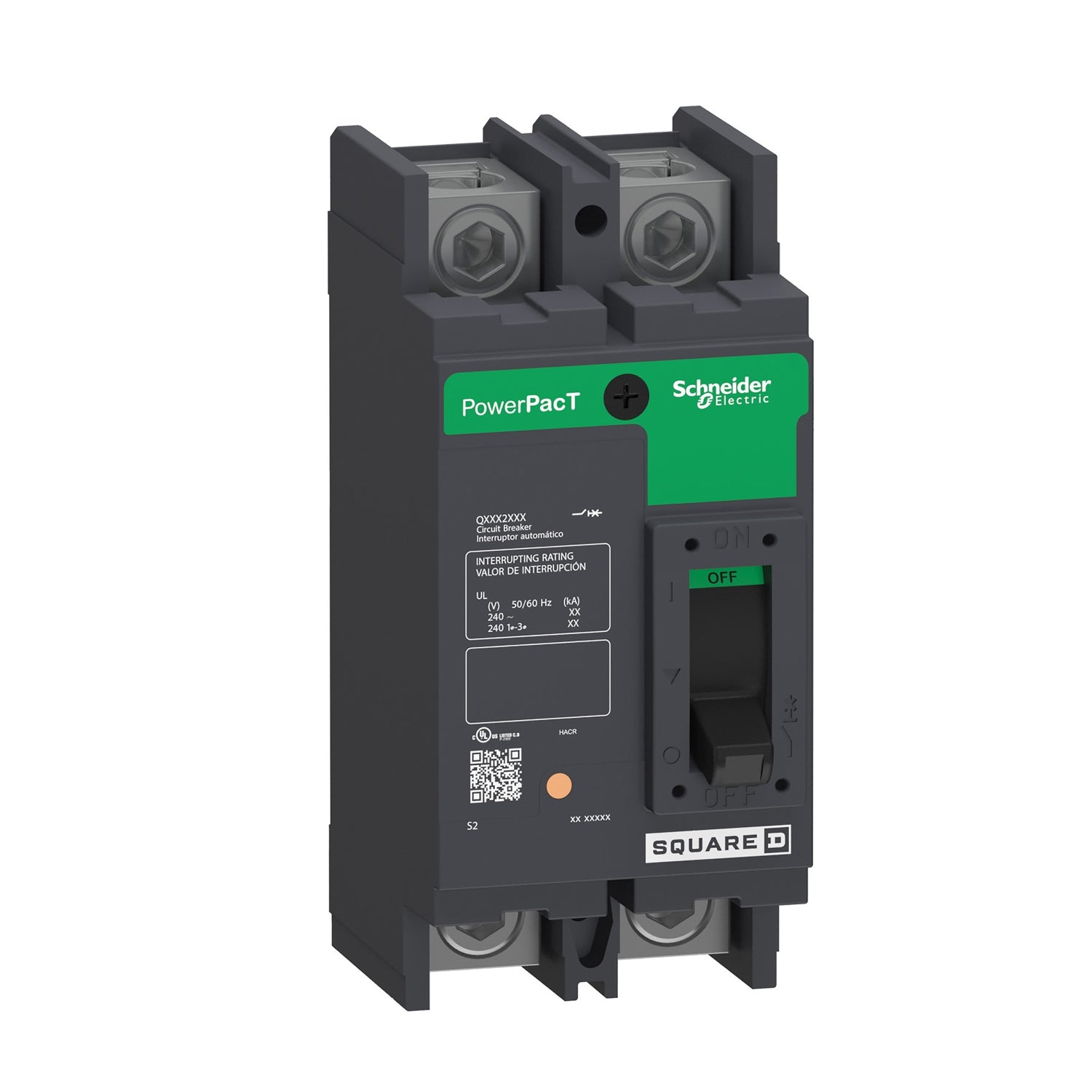

PowerPacT Q-Frame circuit breakers are essential for overcurrent protection and switching in 240VAC systems. These circuit breakers operate at 240VAC and feature thermal magnetic trip protection. Available in both 2 and 3-pole configurations, PowerPacT Q circuit breakers are offered in unit mount and I-Line constructions.
Each breaker includes an integral push-to-trip button located on the cover for manual operation. Designed with lugs on both line and load sides, this PowerPacT Q circuit breaker is specifically rated at 175A for 2 poles. It offers a robust interrupting rating of 25kA at 208Y/120VAC and 240VAC, ensuring reliable performance under fault conditions.
Technical Specifications
|
Part # |
QDL22175 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range of Product |
PowerPact |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
175 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
D |
|
Breaking capacity |
25 kA 120/208 V AC 50/60 Hz UL<br>25 kA 240 V AC 50/60 Hz UL |
|
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV UL |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2400 A |
|
Magnetic hold current |
1200 A |
|
Continuous current rating |
80 % |
|
Utilisation category |
Category A |
|
Mechanical durability |
1000 cycles loaded<br>5000 cycles no load |
|
Local signalling |
1 trip indicator green) |
|
Mounting mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Tightening torque |
247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power wire stripping length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
Information About QDL22175
The QDL22175 is a robust PowerPacT Q-Frame circuit breaker designed specifically for overcurrent protection and switching within 240VAC systems. Operating at a rated voltage of 240VAC, this circuit breaker utilizes thermal magnetic trip technology to ensure effective protection against overloads and short circuits. It is configured as a 2-pole unit, suitable for both unit mount and I-Line constructions, offering versatile installation options.
Featuring an integral push-to-trip button located on the cover, the QDL22175 allows for manual tripping when necessary. It is equipped with lugs on both the line and load sides, facilitating secure electrical connections. With a current rating of 175A, this circuit breaker boasts an impressive interrupting rating of 25kA at 208Y/120VAC and 240VAC, ensuring reliable performance under demanding conditions.
The QDL22175 is engineered for continuous operation with a 80% continuous current rating, meeting stringent safety standards including UL, CSA, and NOM certifications, alongside IEC certification. These certifications underscore its adherence to international quality and safety regulations, ensuring compliance with industry standards for electrical equipment.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
