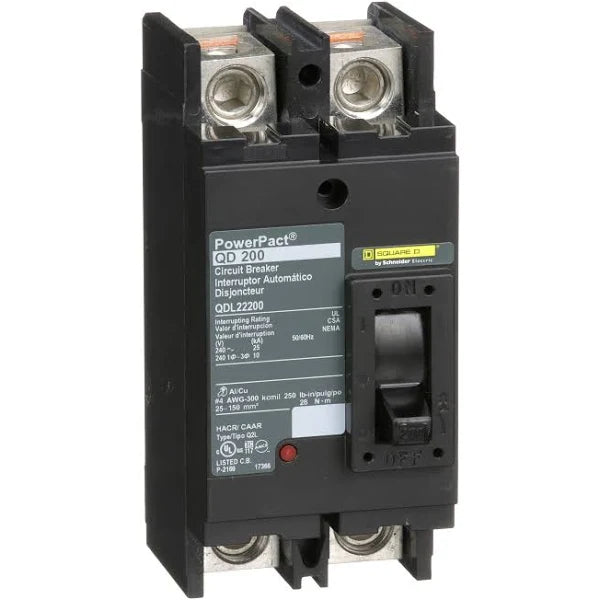

QDL22200 | Schneider Electric PowerPacT Q-Frame 200A 2-Pole 240V Thermal Magnetic Circuit Breaker
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QDL22200
Description
The Schneider Electric QDL22200 is a 200-amp, 2-pole molded case circuit breaker designed for 240-volt AC systems requiring dependable overcurrent protection. Built on the PowerPacT Q-Frame platform, it features a thermal-magnetic trip unit with a 25 kA interrupting rating at both 208Y/120V and 240V. With unit-mount lugs on both the line and load sides, the QDL22200 provides reliable performance for commercial and industrial distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QDL22200 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Type | QDL |
| Frame Type | Q-Frame |
| In Rated Current | 200 A |
| Poles | 2P |
| Phase | 1-Phase / 2-Pole |
| Rated Operational Voltage (Ue) | 240 V AC (50/60 Hz) |
| Breaking Capacity | 25 kA @ 208Y/120V UL; 25 kA @ 240V UL |
| Breaking Capacity Code | D |
| Trip Unit Technology | Thermal-Magnetic |
| Magnetic Trip Current | 2400 A |
| Magnetic Hold Current | 1200 A |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Continuous Current Rating | 80% |
| Utilization Category | Category A |
| Mechanical Durability (Loaded) | 1000 cycles |
| Mechanical Durability (No Load) | 5000 cycles |
| Local Signaling | Trip indicator (green) |
| Mounting Mode | Unit-mount with lugs |
| Electrical Connection – Line | Lugs |
| Electrical Connection – Load | Lugs |
| Control Type | Operating handle |
| Network Frequency | 50/60 Hz |
| Application | Commercial and industrial distribution systems |
Information About QDL22200
The QDL22200 is part of the PowerPacT Q-Frame series, engineered to deliver robust switching and overcurrent protection in 240-volt distribution applications. Its thermal-magnetic trip unit incorporates fixed Long-Time and Instantaneous elements, providing effective protection against overloads and short circuits. The breaker includes an integral push-to-trip button for manual operation and features line and load lugs to support secure conductor termination. With an 80% continuous current rating, 8 kV impulse withstand voltage, and compliance with UL, CSA, NOM, and IEC standards, the QDL22200 is built for reliable service in a wide range of electrical systems.
Key Features
- 200A PowerPacT Q-Frame breaker: Designed for 240-V AC distribution systems.
- 2-pole configuration: Supports single-phase and 2-pole applications.
- Thermal-magnetic trip unit: Provides precise overload and short-circuit protection.
- 25 kA interrupt rating: Rated at both 208Y/120V and 240V (UL).
- Integral push-to-trip button: Allows manual breaker tripping for testing or safety.
- Line and load lugs included: Ensures secure termination on both sides.
- 80% continuous current rating: Supports sustained operation under normal load.
- UL, CSA, NOM, IEC certified: Meets U.S., Canadian, Mexican, and international standards.
The QDL22200 delivers the reliability and precision required for PowerPacT Q-Frame industrial and commercial electrical distribution systems.
