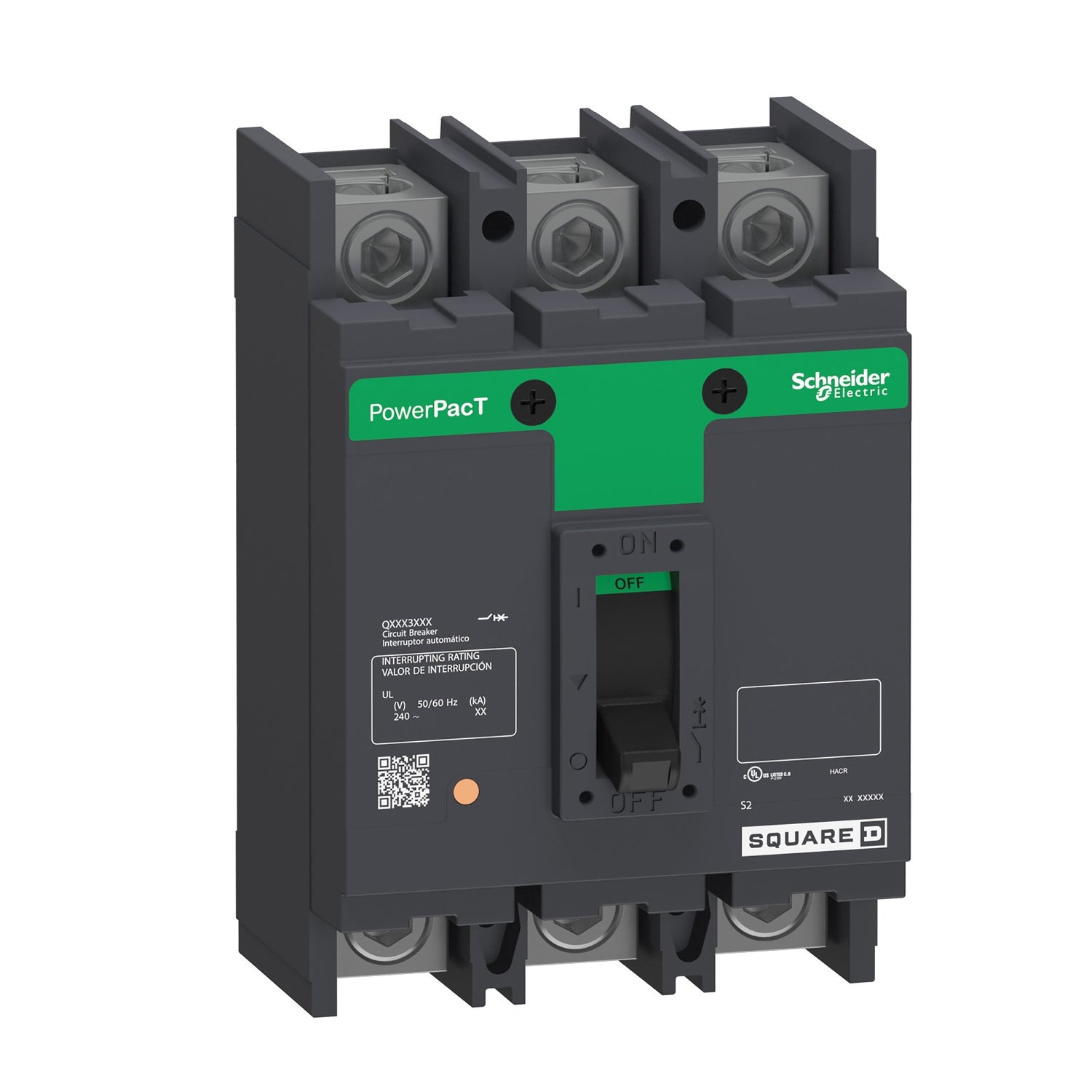

Product Description P/N: QDL32100
Description
QDL32100, Square D, Powerpact, type QDL, 3P, 3PH, 100A, 240V, 25kA@240V, UL listed, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
Brand | Schneider Electric |
Part Number | QDL32100 |
Category | Circuit Breaker |
Subcategory | Molded Case Circuit Breaker |
Family | Powerpact |
Type | QDL |
Voltage | 240 |
Amperage | 100 |
Phase | 3 |
Connection | Feed-Thru |
Protection | Thermal Magnetic |
Frame Type | Q Frame |
Functions | LI - Long-Time and Instantaneous |
AIC Rating | 25kA@240V |
Poles | 3 |
Information About QDL32100
The Schneider Electric QDL32100 is a reliable circuit breaker from the Powerpact family, designed for effective protection and control in industrial and commercial electrical systems. This breaker operates at a voltage rating of 240 volts and has a current rating of 100 amps, making it suitable for a variety of medium-duty applications.
The QDL32100 features an AIC (Ampere Interrupting Capacity) rating of 25kA at 240V, enabling it to safely interrupt moderate fault currents and protect the electrical system from damage. This rating ensures dependable performance in various electrical environments.
Equipped with Long-Time and Instantaneous (LI) protection functions, the QDL32100 provides comprehensive safeguarding by responding to both sustained overloads and immediate short-circuits. The thermal magnetic protection mechanism combines thermal protection for overload conditions and magnetic protection for short-circuit events, ensuring reliable and accurate protection.
This circuit breaker is designed with three poles, making it ideal for three-phase electrical systems commonly found in industrial and commercial settings. The frame type is designated as Q Frame, indicating a compact and robust construction suited for a range of applications.
The QDL32100 features a feed-thru connection design, facilitating straightforward and secure installation. This design ensures reliable electrical connectivity and ease of integration into electrical panels.
Overall, the Schneider Electric QDL32100 circuit breaker combines essential protection features, moderate interrupting capacity, and reliable performance, making it a suitable choice for safeguarding medium-duty industrial and commercial electrical systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
