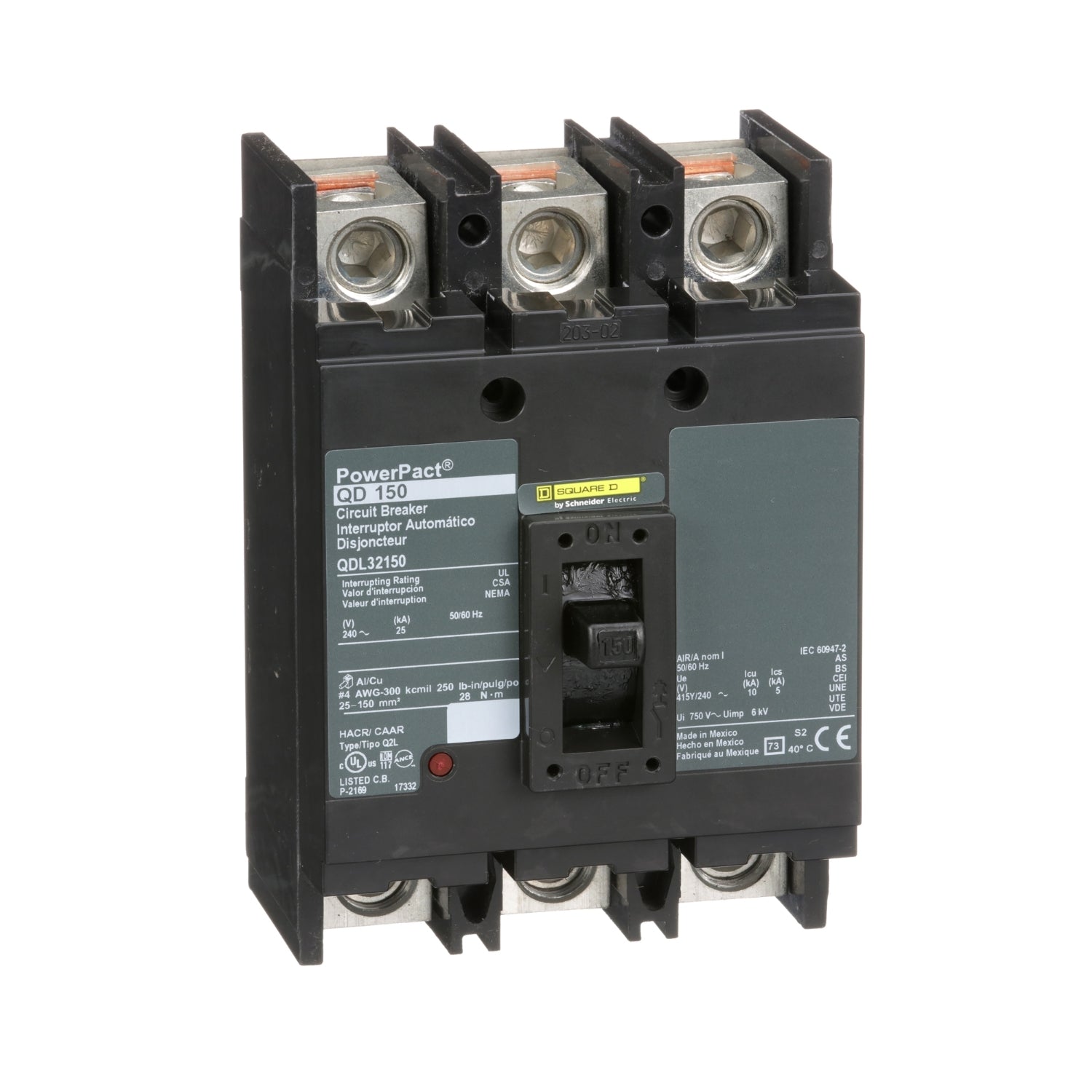

QDL32150 | Schneider Electric Circuit Breaker
- Regular price
- $394.00
- Sale price
- $394.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QDL32150
DescriptionΒ
The QDL32150 is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching within 240VAC systems. Rated for operational voltage of 240VAC, it provides thermal magnetic trip protection. Available in 2 and 3-pole unit mount and I-Line constructions, PowerPacT Q circuit breakers feature an integral push-to-trip button for manual tripping. Equipped with lugs on both line and load sides, this unit has a continuous current rating of 150A. It offers an interrupting rating of 25kA at 208Y/120VAC and 240VAC.Β
Β
Β
Technical SpecificationsΒ
|
Part NumberΒ |
QDL32150Β |
|
CategoryΒ |
Circuit BreakerΒ |
|
SubcategoryΒ |
Molded Case Circuit BreakerΒ |
|
RangeΒ |
PowerPact QΒ |
|
Product TypeΒ |
Circuit BreakerΒ |
|
ApplicationΒ |
DistributionΒ |
|
Rated Current (In)Β |
150 AΒ |
|
Number of PolesΒ |
3PΒ |
|
Control TypeΒ |
Operating HandleΒ |
|
Breaking Capacity CodeΒ |
DΒ |
|
Rated Operational Voltage (Ue)Β |
240 V AC 50/60 Hz ULΒ |
|
Network FrequencyΒ |
50/60 HzΒ |
|
Impulse Withstand Voltage (Uimp)Β |
8 kV ULΒ |
|
Trip Unit TechnologyΒ |
Thermal-MagneticΒ |
|
Magnetic Tripping CurrentΒ |
2400 AΒ |
|
Magnetic Hold CurrentΒ |
1200 AΒ |
|
Continuous Current RatingΒ |
80%Β |
|
Utilization CategoryΒ |
Category AΒ |
|
Local SignalingΒ |
1 Trip Indicator (Green)Β |
|
Mounting ModeΒ |
Unit Mount LugΒ |
|
Mounting SupportΒ |
LugΒ |
|
Tightening TorqueΒ |
247.82 lb-ft (28 Nβ m)Β |
|
Compatible Conductor RangeΒ |
0.04β¦0.23 inΒ² (25β¦150 mmΒ²) AWG 4...300 kcmilΒ |
|
Power Wire Stripping LengthΒ |
0.87 in (22 mm)Β |
|
HeightΒ |
6.47 in (164.34 mm)Β |
|
WidthΒ |
4.5 in (114.30 mm)Β |
|
DepthΒ |
3.93 in (99.82 mm)Β |
|
Additional InformationΒ |
HACR RatedΒ |
Β
Β
Information About QDL32150
The QDL32150 is a Circuit Breaker from the PowerPacT Q series, designed for applications requiring overcurrent protection and switching on 240VAC systems. Operating at a rated operational voltage of 240VAC, this circuit breaker offers thermal magnetic trip protection, ensuring reliable performance under various load conditions.Β
PowerPacT Q circuit breakers come in 2 and 3-pole unit mount and I-Line constructions, providing flexibility in installation. Featuring an integral push-to-trip button in the cover, they enable manual tripping of the circuit breaker when necessary, enhancing operational control.Β
Equipped with lugs on both the line and load sides, the QDL32150 facilitates secure connections in the electrical system. With a rated current of 150A and three poles, this circuit breaker delivers robust protection for demanding applications.Β
The interrupting rating of the QDL32150 stands at 25kA, ensuring efficient interruption of fault currents at 208Y/120VAC and 240VAC. Additionally, it boasts a continuous current rating of 80%, allowing for sustained operation within specified limits.Β
Β
Β
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
