QDL32200 | Schneider Electric Circuit Breaker
- Regular price
- $524.00
- Sale price
- $524.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

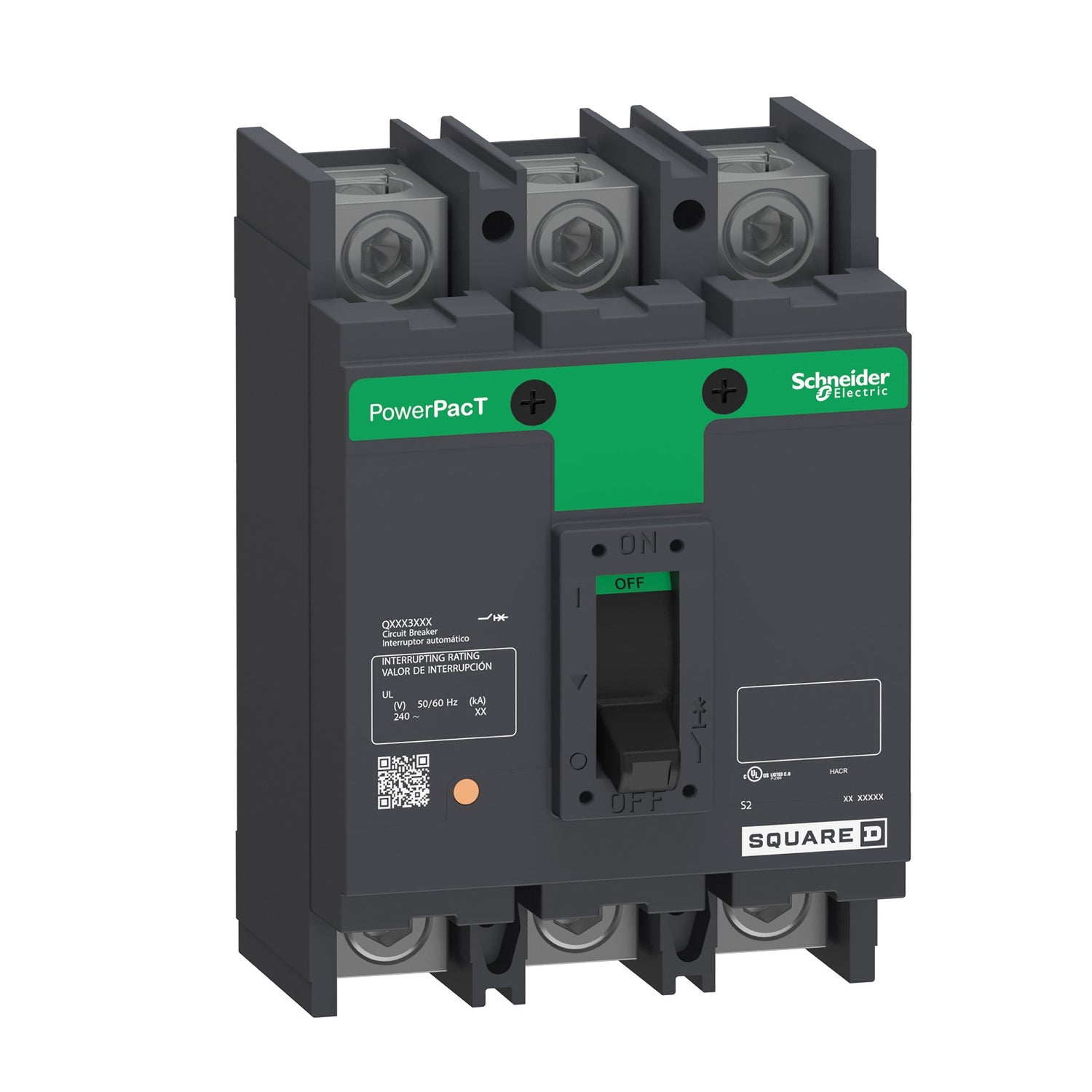

Product Description P/N: QDL32200
Description
The QDL32200 circuit breaker, part of the PowerPacT Q series, is designed for robust overcurrent protection and switching applications in 240VAC systems. This 3-pole breaker features a 200A rating and operates at 240VAC, with a substantial interrupting rating of 25kA at 208Y/120VAC and 240VAC. It utilizes thermal magnetic trip protection technology, ensuring reliable performance under various load conditions.
Technical Specifications
|
Part # |
QDL32200 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
200 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
D |
|
Breaking capacity |
25 kA @ 120/208 V AC 50/60 Hz UL<br>25 kA @ 240 V AC 50/60 Hz UL |
|
Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Mechanical Durability |
1000 cycles loaded<br>5000 cycles no load |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount lug) |
|
Mounting Support |
Lug |
Information About QDL32200
PowerPacT Q-Frame circuit breakers are utilized for overcurrent protection and switching in 240VAC systems. They operate at a rated operational voltage of 240VAC and feature thermal magnetic trip protection. Available configurations include 2 and 3-pole unit mount options as well as I-Line constructions. Each PowerPacT circuit breaker incorporates an integral push-to-trip button integrated into the cover for manual tripping.
This unit is equipped with lugs on both the line and load sides, facilitating secure electrical connections. The QDL32200, a 200A, 3-pole circuit breaker, boasts an interrupting rating of 25kA at both 208Y/120VAC and 240VAC, ensuring reliable protection against short circuits. It maintains a continuous current rating of 80%, suitable for sustained operational demands.
PowerPacT Q circuit breakers adhere to rigorous safety standards, including UL, CSA, and NOM certifications, and are also IEC certified, meeting international regulatory requirements for electrical equipment.
