QDL32225 | Schneider Electric Circuit Breaker
- Regular price
- $759.00
- Sale price
- $759.00
- Regular price
-
Do you need more quantity?

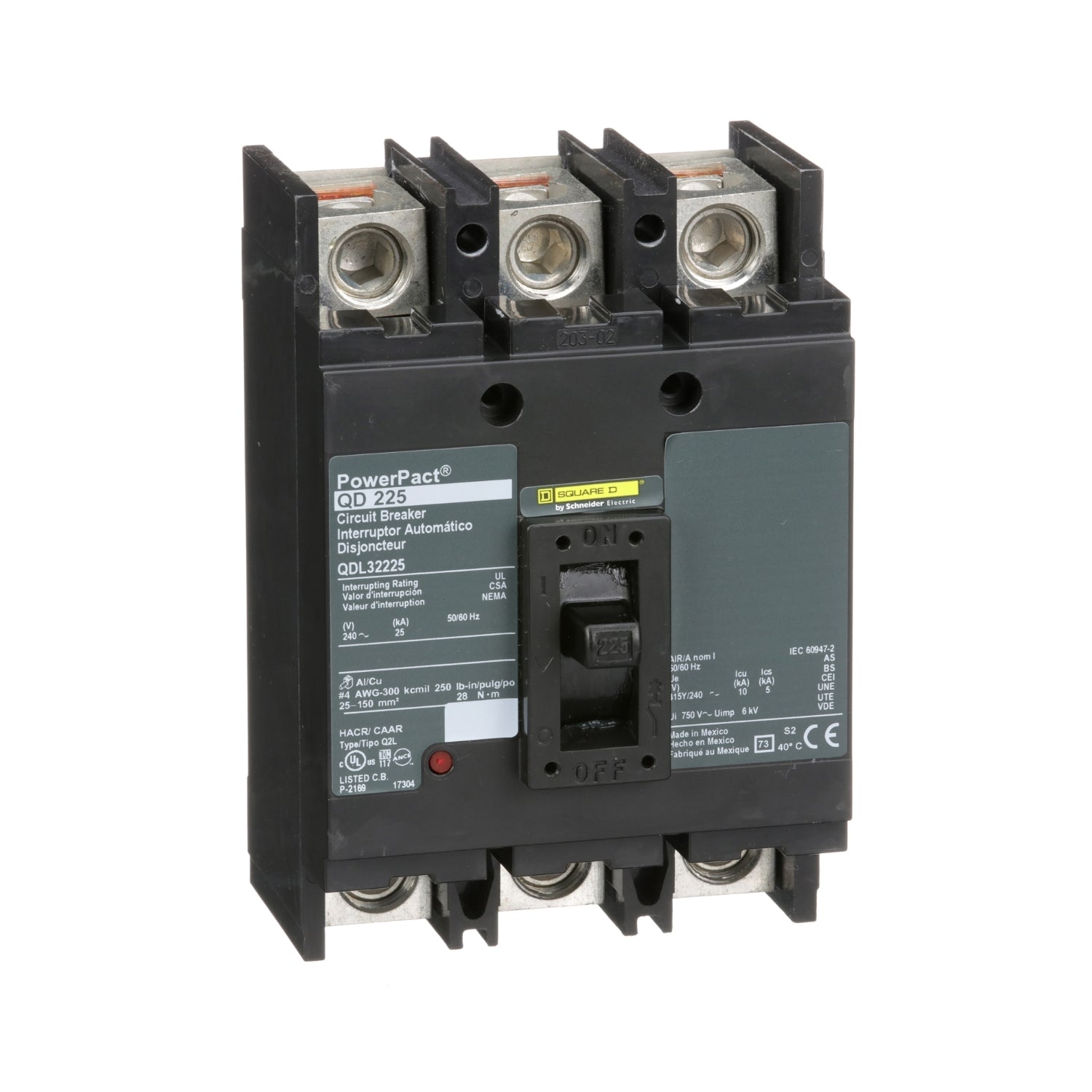

Product Description P/N: QDL32225
Description
The QDL32225 circuit breaker, part of the PowerPacT Q-Frame series, is specifically designed for overcurrent protection and switching in 240VAC systems. These circuit breakers are rated for operational voltage at 240VAC and feature thermal magnetic trip protection, ensuring reliable performance in various electrical applications.
Available in both 2 and 3-pole configurations, including unit mount and I-Line constructions, PowerPacT Q circuit breakers facilitate versatile installation options to meet specific electrical panel requirements. Each breaker is equipped with an integral push-to-trip button located on the cover for convenient manual operation.
Technical Specifications
Part # |
QDL32225 |
Category |
Circuit Breaker |
Subcategory |
Molded Case Circuit Breaker |
Line Rated Current |
225 A |
Number of Poles |
3P |
Control Type |
Operating handle |
Breaking capacity code |
D |
Breaking capacity |
- 25 kA @ 120/208 V AC 50/60 Hz UL <br> - 25 kA @ 240 V AC 50/60 Hz UL |
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
Network Frequency |
50/60 Hz |
[Uimp] rated impulse withstand voltage |
8 kV UL |
Trip unit technology |
Thermal-magnetic |
Magnetic tripping current |
2400 A |
Magnetic hold current |
1200 A |
Continuous current rating |
80% |
Utilisation category |
Category A |
Local signalling |
1 trip indicator (green) |
Mounting mode |
Unit mount lug |
Mounting Support |
Lug |
Electrical connection |
- Lugs, load <br> - Lugs, line |
Tightening torque |
247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
Power wire stripping length |
0.87 in (22 mm) |
Height |
6.47 in (164.34 mm) |
Width |
4.5 in (114.30 mm) |
Depth |
3.93 in (99.82 mm) |
Information About QDL32225
The QDL32225 circuit breaker, part of the PowerPacT Q-Frame series, is designed for overcurrent protection and switching applications in 240VAC systems. It operates at a rated operational voltage of 240VAC and features thermal magnetic trip protection. Available in both 2 and 3-pole configurations, including unit mount and I-Line constructions, PowerPacT Q circuit breakers incorporate an integral push-to-trip button on the cover for manual tripping.
This specific model is equipped with lugs on both the line and load sides. The QDL32225, a 3-pole circuit breaker rated at 225A, boasts an interrupting rating of 25kA at 208Y/120VAC and 240VAC, ensuring robust performance in various electrical environments. It maintains a continuous current rating of 80%, suitable for demanding industrial applications.
PowerPacT Q circuit breakers adhere to rigorous standards including UL, CSA, and NOM, and are certified under IEC standards, ensuring reliability and compliance with international electrical safety regulations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
