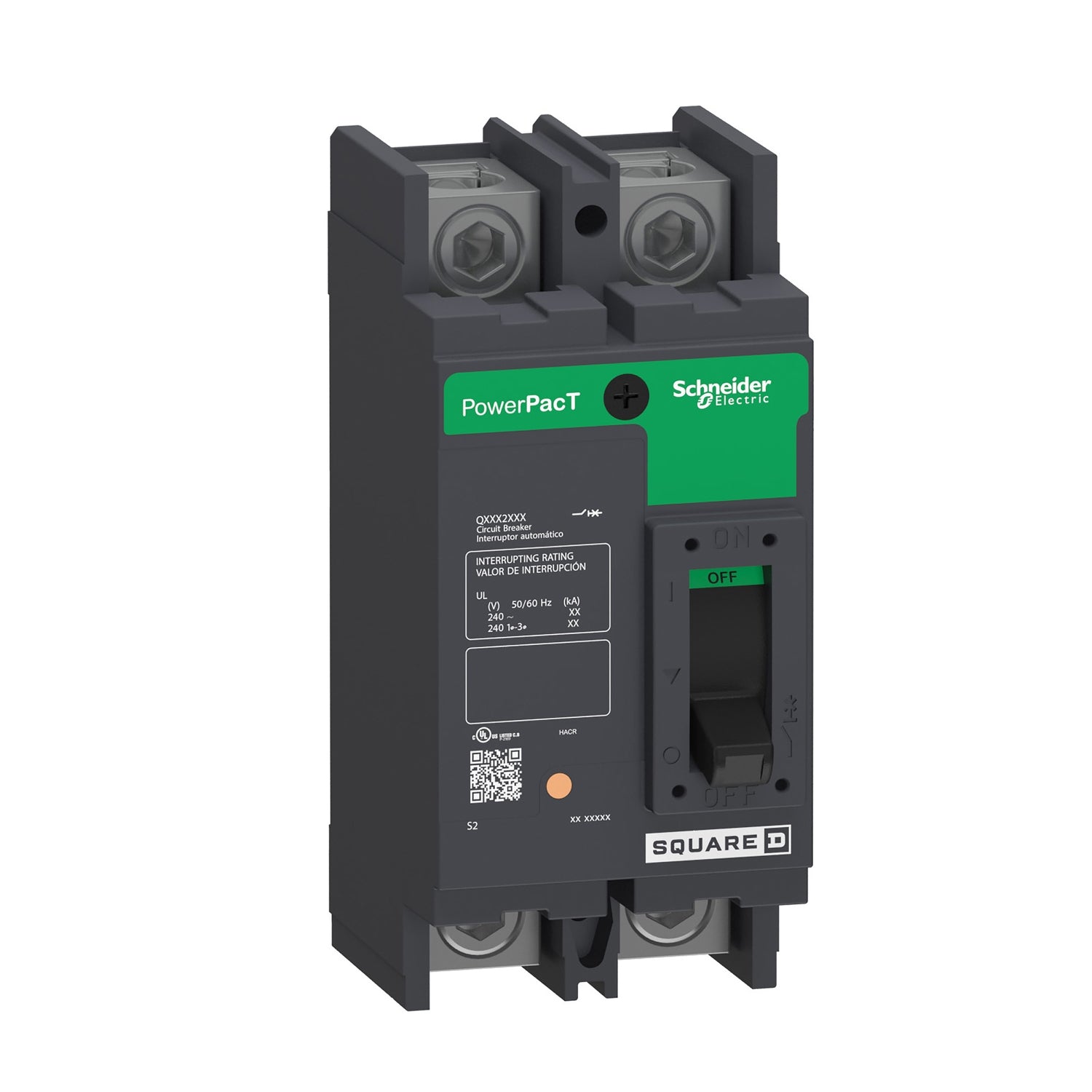

QDP22100TM | Schneider Electric Circuit Breaker
- Regular price
- $565.00
- Sale price
- $565.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QDP22100TM
Description
QDP22100TM, Square D,Schneider Electric, Powerpact, type QDP, 2P, 1PH, 100A, 240V, 25kA@240V, UL listed, standard interrupting capacity, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, top feed main, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QDP22100TM |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | QDP |
| Voltage | 240 |
| Amperage | 100 |
| Connection | Bolt-On |
| Functions | LI - Long-Time and Instantaneous |
| Phase | 1 |
| AIC Rating | 25kA@240V |
| Protection | Thermal Magnetic |
| Poles | 2 |
| Frame Type | Q Frame |
Information About QDP22100TM
The QDP22100TM by Schneider Electric is a robust circuit breaker from the Powerpact family, specifically designed for reliable and efficient protection in various electrical systems. Rated for 100 amps and 240 volts, this breaker is well-suited for demanding applications in residential, commercial, and industrial settings.
Featuring a two-pole configuration, the QDP22100TM can control and protect two circuits simultaneously, making it versatile for different electrical setups. Its impressive interrupting capacity (AIC) of 25kA at 240V ensures the safe interruption of high fault currents, thereby protecting the electrical system from potential damage.
The breaker incorporates thermal magnetic protection, providing both long-time (LI) and instantaneous (LI) functions. This dual protection mechanism ensures comprehensive safeguarding against sustained overloads and short circuits, enhancing the safety and reliability of the electrical system.
Designed for single-phase systems, the QDP22100TM uses a bolt-on connection type, ensuring a secure and stable installation in compatible panels and load centers. This bolt-on design simplifies installation and maintenance while ensuring a reliable connection.
The QDP22100TM is built within the Q Frame, providing a compact and durable structure that meets the rigorous demands of modern electrical systems. Its combination of thermal magnetic protection, high interrupting capacity, and straightforward installation makes it a dependable choice for a wide range of applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
