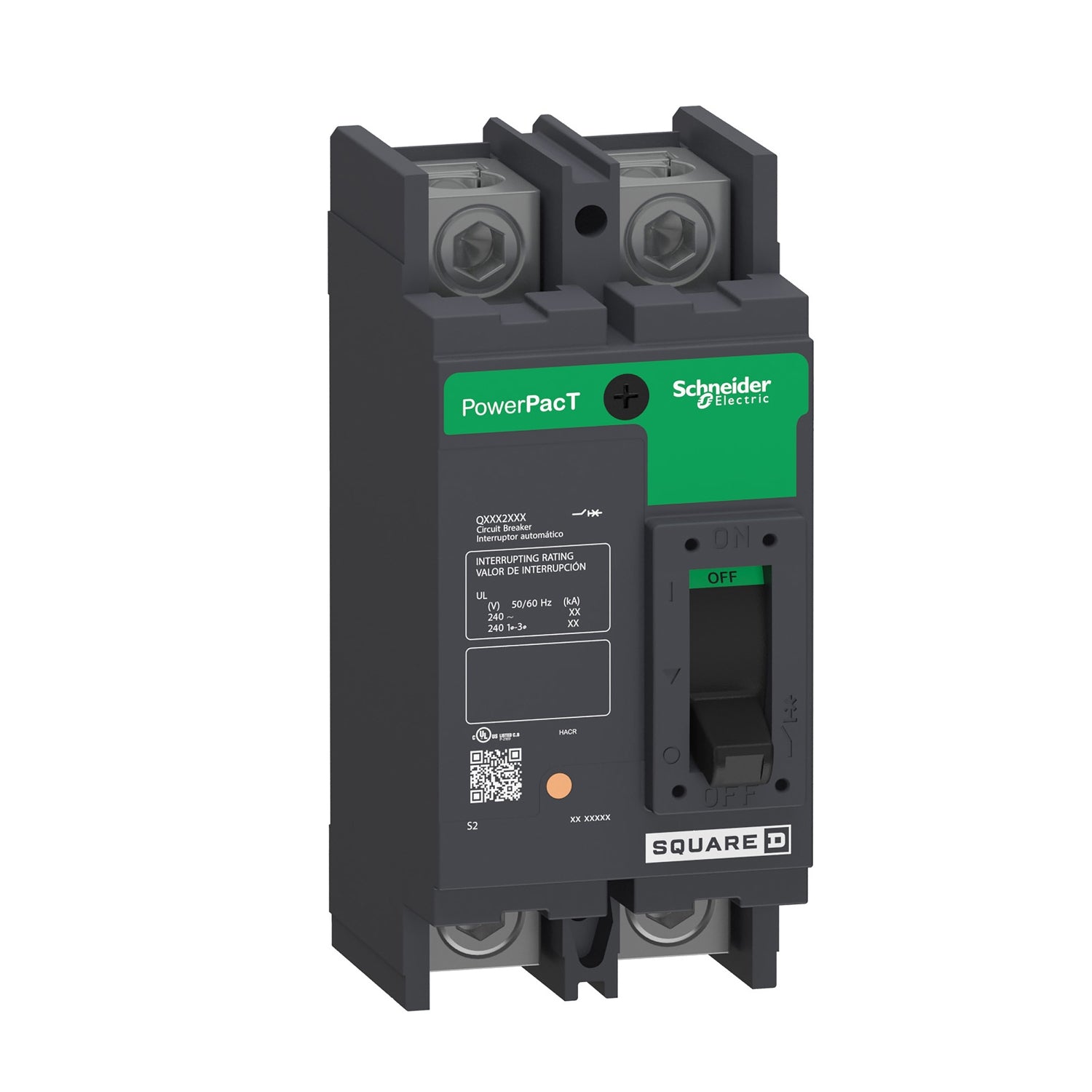

QDP22200TM | Schneider Electric Circuit Breaker, PowerPacT Q
- Regular price
- $533.00
- Sale price
- $533.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QDP22200TM
Description
The QDP22200TM is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. It has a 200A current rating and a 2-pole configuration. The circuit breaker operates at 240VAC with an interrupting rating of 25kA at both 208Y/120VAC and 240VAC. It provides thermal magnetic trip protection and maintains a continuous current rating of 80%.
This PowerPacT Q-Frame circuit breaker includes an integral push-to-trip button on the cover for manual tripping. The unit is equipped with terminal nuts on the line side and lugs on the load side, with studs on the line end including nuts and washers. PowerPacT Q-Frame circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions, and they comply with UL, CSA, and NOM standards, as well as being IEC certified.
Technical Specifications
|
Part # |
QDP22200TM |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
200 A |
|
Number of Poles |
2P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
D |
|
Breaking Capacity |
25 kA 120/208 V AC 50/60 Hz UL |
|
|
25 kA 240 V AC 50/60 Hz UL |
|
[Ue] Rated Operational Voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV UL |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2400 A |
|
Magnetic Hold Current |
1200 A |
|
Continuous Current Rating |
80 % |
|
Utilisation Category |
Category A |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount (lug) |
|
Mounting Support |
Lug |
|
Tightening Torque |
247.82 lbf.in (28 N.m) |
|
|
0.04…0.23 in² (25…150 mm²) |
|
|
(AWG 4...300 kcmil) |
|
Power Wire Stripping Length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
3 in (76.20 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About QDP22200TM
The QDP22200TM is a PowerPacT Q-Frame circuit breaker designed for overcurrent protection and switching in 240VAC systems. It is rated for a maximum operational voltage of 240VAC and provides thermal magnetic trip protection. This circuit breaker model is configured as a 2-pole unit with a current rating of 200A and an interrupting rating of 25kA at both 208Y/120VAC and 240VAC.
The design of the QDP22200TM includes terminal nuts on the line side and lugs on the load side. Additionally, the unit features studs on the line end, secured with nuts and washers. The circuit breaker is equipped with an integral push-to-trip button located on the cover, allowing manual tripping of the breaker.
The continuous current rating of this circuit breaker is specified at 80% of its nominal rating. It conforms to the standards set by UL, CSA, and NOM, and it is also certified under IEC regulations.
PowerPacT Q-Frame circuit breakers are available in both 2-pole and 3-pole configurations. These circuit breakers are offered in unit mount and I-Line constructions. They are utilized in various applications requiring reliable overcurrent protection and switching capabilities.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
