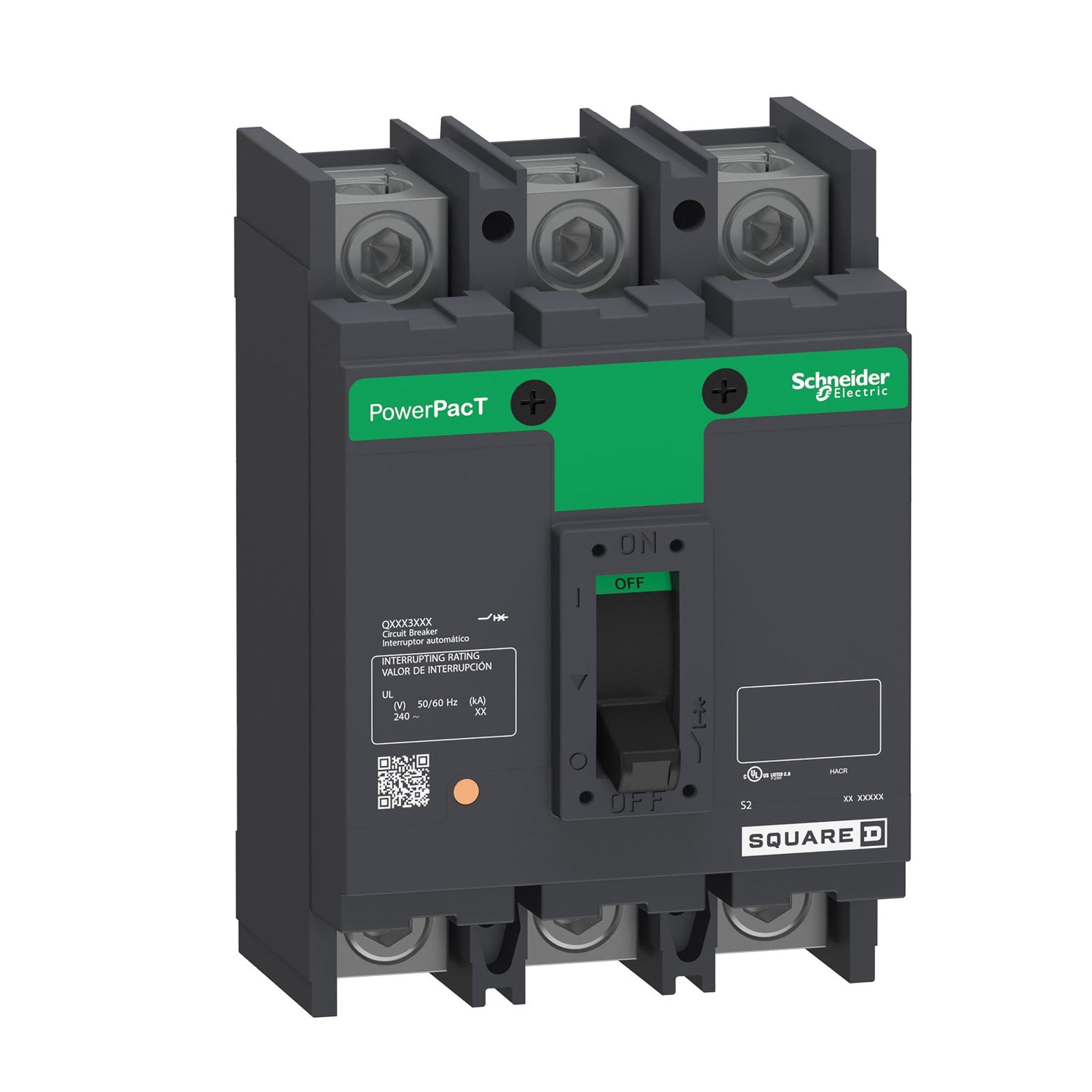

QDP32200TM | Schneider Electric PowerPacT Q-Frame Molded Case Circuit Breaker 200A 3-Pole 240V
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QDP32200TM
Description
The Schneider Electric QDP32200TM is a PowerPacT Q-Frame molded case circuit breaker designed for reliable overcurrent protection and switching in 240 VAC electrical systems. This three-pole breaker is rated at 200 A and utilizes a thermal-magnetic trip mechanism to protect against overloads and short-circuit conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QDP32200TM |
| Subcategory | Molded Case Circuit Breaker |
| Series / Family | PowerPacT Q |
| Breaker Type | QDP |
| Frame Type | Q-Frame |
| Line Rated Current | 200 A |
| Number of Poles | 3P |
| Rated Operational Voltage [Ue] | 240 V AC, 50/60 Hz |
| Trip Unit Technology | Thermal-Magnetic |
| Protection Functions | LI – Long-Time and Instantaneous |
| Magnetic Tripping Current | 2400 A |
| Magnetic Hold Current | 1200 A |
| Continuous Current Rating | 80% |
| Interrupt Rating | 25 kA at 208Y/120 V and 240 V |
| Breaking Capacity Code | D |
| Impulse Withstand Voltage [Uimp] | 8 kV |
| Utilisation Category | Category A |
| Control Type | Operating Handle |
| Local Signalling | Trip Indicator (Green) |
| Mounting Mode | Unit Mount |
| Electrical Connection | Line Studs with Nuts/Washers, Load-Side Lugs |
| Power Wire Stripping Length | 0.87 in (22 mm) |
| Height | 6.47 in (164.34 mm) |
| Width | 4.5 in (114.30 mm) |
| Depth | 3.93 in (99.82 mm) |
| Circuit Breaker Application | HACR Rated |
Information About QDP32200TM
The QDP32200TM is part of Schneider Electric’s PowerPacT Q-Frame circuit breaker family, designed to deliver dependable protection and switching capabilities in low-voltage distribution systems. It incorporates a thermal-magnetic trip unit that responds to both sustained overloads and instantaneous short-circuit faults. An integral push-to-trip button allows manual operation for testing and maintenance. The breaker’s construction supports compliance with UL, CSA, NOM, and IEC standards, ensuring suitability for a wide range of commercial and industrial installations.
Key Features:
- PowerPacT Q-Frame Design: Engineered for compact, high-performance overcurrent protection in commercial and industrial systems.
- Thermal-Magnetic Trip Mechanism: Provides dependable long-time overload protection and instantaneous short-circuit response.
- 200 Amp Current Rating: Supports feeder and branch circuit applications requiring moderate to high current capacity.
- Three-Pole Configuration: Ensures coordinated protection and isolation of all phases.
- High Interrupting Capacity: Rated at 25 kA for safe interruption of fault currents at 240 V systems.
- Unit Mount Construction: Enables flexible installation with secure line-side studs and load-side lugs.
- HACR Rated: Approved for heating, air conditioning, and refrigeration circuit applications.
The QDP32200TM delivers the reliability and precision required for effective overcurrent protection in Schneider Electric PowerPacT Q-Frame electrical distribution systems.
