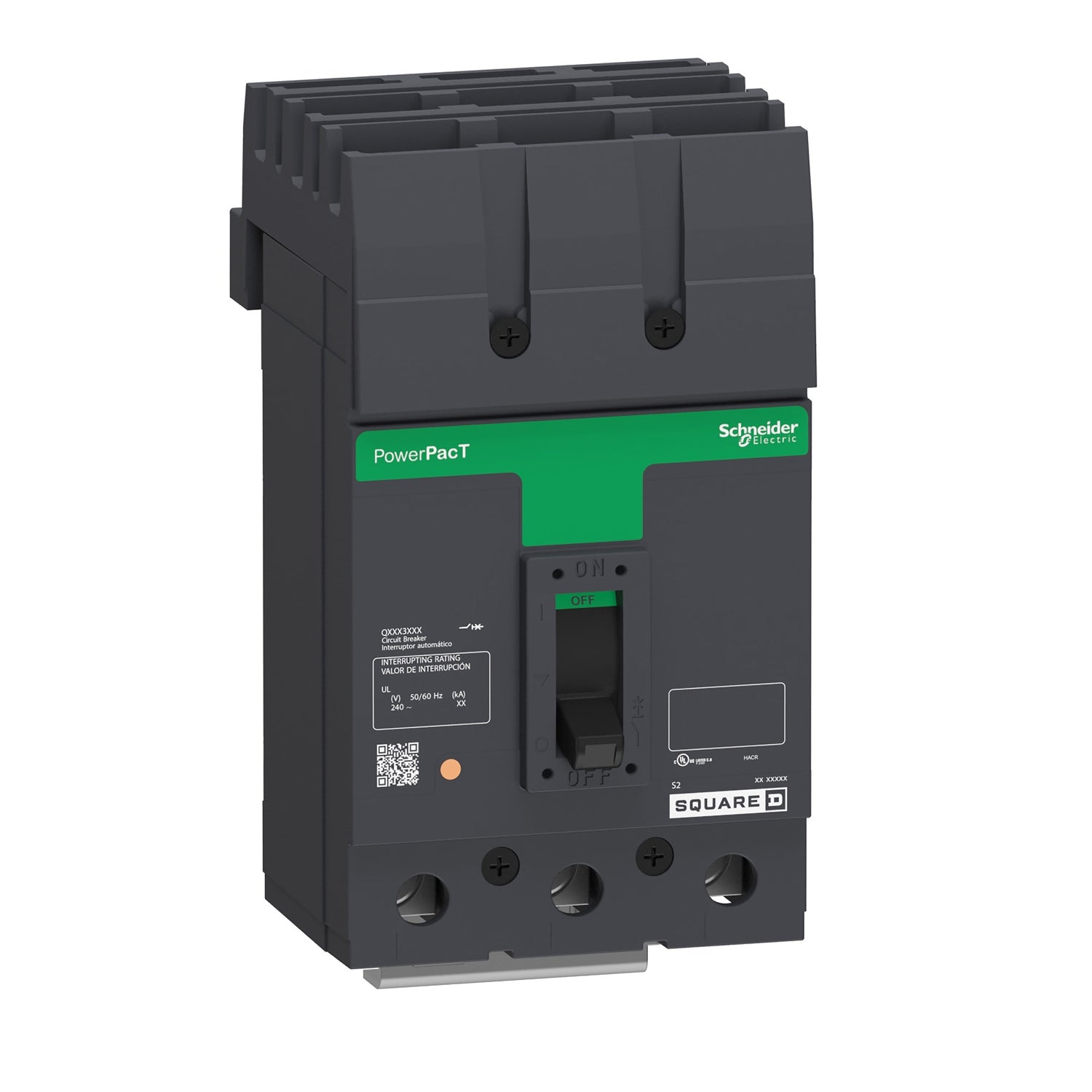

QGA32100 | Schneider Electric Circuit Breaker
- Regular price
- $844.00
- Sale price
- $844.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QGA32100
Description
The Square D QGA32100 is a molded case circuit breaker featuring thermal magnetic protection, designed with three poles, a current rating of 100 Amps, and operating at a voltage of 240V. It offers an interrupting rating of 65kA at 240V. This model utilizes an I-Line style plug-on connection and incorporates both long-time and instantaneous trip functions for enhanced electrical system protection.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QGA32100 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | QGA |
| Voltage | 240 |
| Amperage | 100 |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Frame Type | Q Frame |
| AIC Rating | 65kA@240V |
| Connection | I-Line Style Plug-In |
| Poles | 3 |
| Phase | 3 |
Information About QGA32100
The QGA32100 is a high-performance circuit breaker from Schneider Electric's I-Line series, designed to provide robust electrical protection in industrial and commercial applications. Operating at a voltage rating of 240V AC, it has a current rating of 100 amperes and is configured with three poles, suitable for three-phase systems.
Featuring a Q Frame type, the QGA32100 ensures durability and reliability in demanding environments. It utilizes an I-Line style plug-in connection, allowing for convenient and secure installation in compatible panelboards and switchboards.
With an impressive interrupting capacity (AIC) of 65kA at 240V AC, the QGA32100 effectively handles high fault currents, ensuring superior protection for critical electrical infrastructure. The breaker incorporates thermal magnetic protection, combining long-time (thermal) and instantaneous (magnetic) trip functions to safeguard against overloads and short circuits. These protective functions are categorized under the LI function (Long-Time and Instantaneous).
The QGA32100 is engineered to deliver long-lasting performance, making it an excellent choice for applications requiring reliable circuit protection and operational continuity in diverse industrial and commercial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
