QGA32200 | Schneider Electric Circuit Breaker
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QGA32200
Description

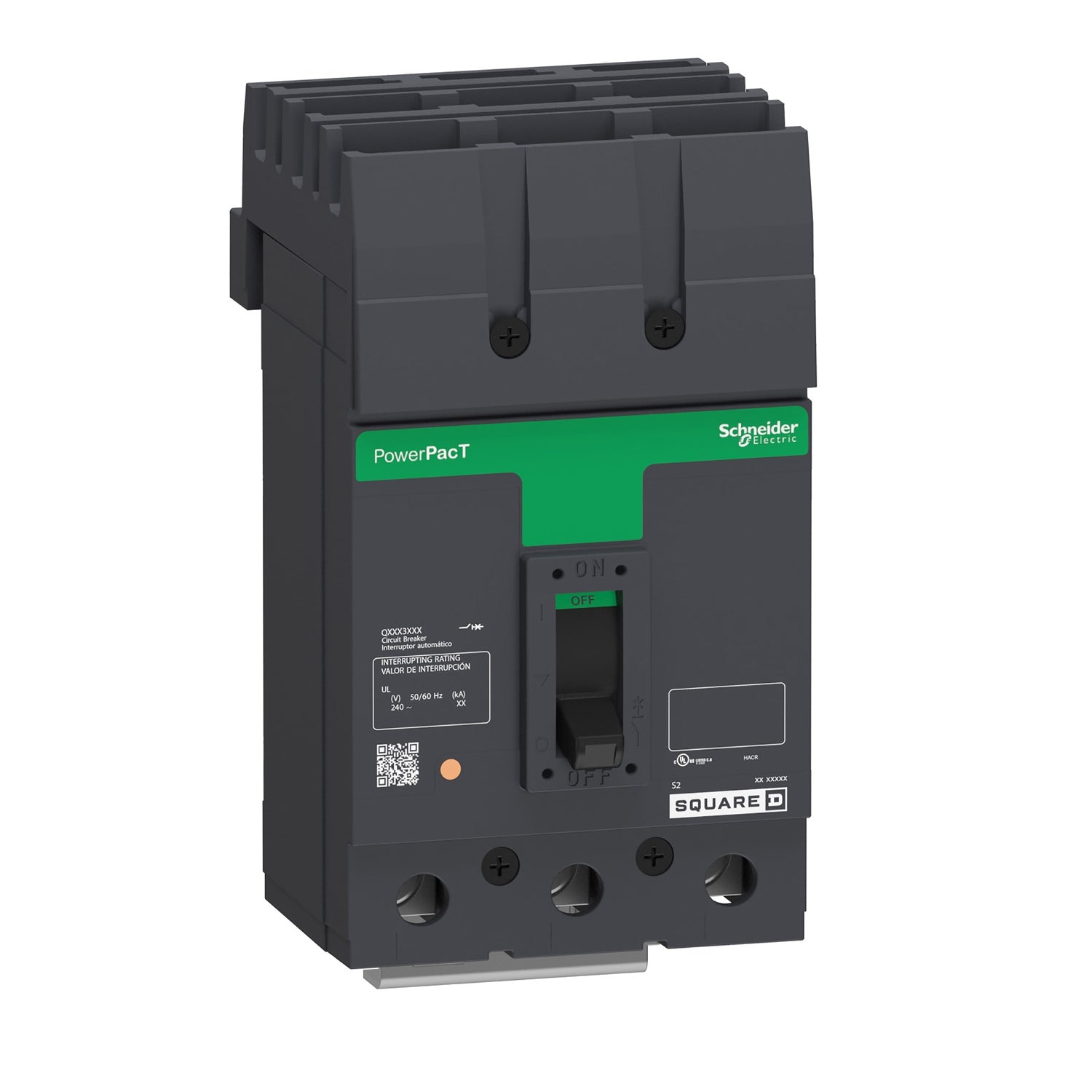

The QGA32200 is a PowerPact® Q-frame circuit breaker designed for various applications. Part of the PowerPact® Q series, which encompasses QB, QD, QG, and QJ molded case circuit breakers, this model is rated for 240VAC and 250A maximum. It features a 3-pole configuration and has a breaking capacity of 65kA@240VAC with a continuous current rating of 80%.
Equipped with Thermal Magnetic trip unit technology, this circuit breaker offers a magnetic hold current of 1200A and a magnetic tripping current of 2400A. It belongs to the I-Line® group-mounted construction category and is suitable for lug or bus-connected unit-mount configurations.
Technical Specifications
|
Part Number |
QGA32200 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact Q |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
200 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
G |
|
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV UL |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2400 A |
|
Magnetic hold current |
1200 A |
|
Continuous current rating |
80 % |
|
Utilisation category |
Category A |
|
Local signalling |
1 trip indicator green |
|
Mounting mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical connection |
I-Line connection, line lugs, load |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Tightening torque |
247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power wire stripping length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Phase connection |
ABC |
|
Circuit breaker application |
HACR rated |
Information About QGA32200
The PowerPact® Q-frame line of circuit breakers encompasses QB, QD, QG, and QJ molded case circuit breakers and QB automatic switches. Rated at 240 Vac, with a maximum of 250 A, these breakers come in lug or bus-connected unit-mount constructions or I-Line® group-mounted construction. PowerPact Q-frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers come with lugs on both ends for cabled applications or mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards, or switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device.
The QGA32200 PowerPact Q circuit breaker is a 3-pole breaker with a rated current of 200A. It has a breaking capacity of 65kA@240VAC and a continuous current rating of 80%. This I-Line breaker features thermal-magnetic trip unit technology with a magnetic hold current of 1200 A and a magnetic tripping current of 2400A. The dimensions for this product are 6.47 inches (H), 4.5 inches (W), and 3.93 inches (D).
