QGL32200 | Schneider Electric Circuit Breaker
- Regular price
- $1,192.00
- Sale price
- $1,192.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

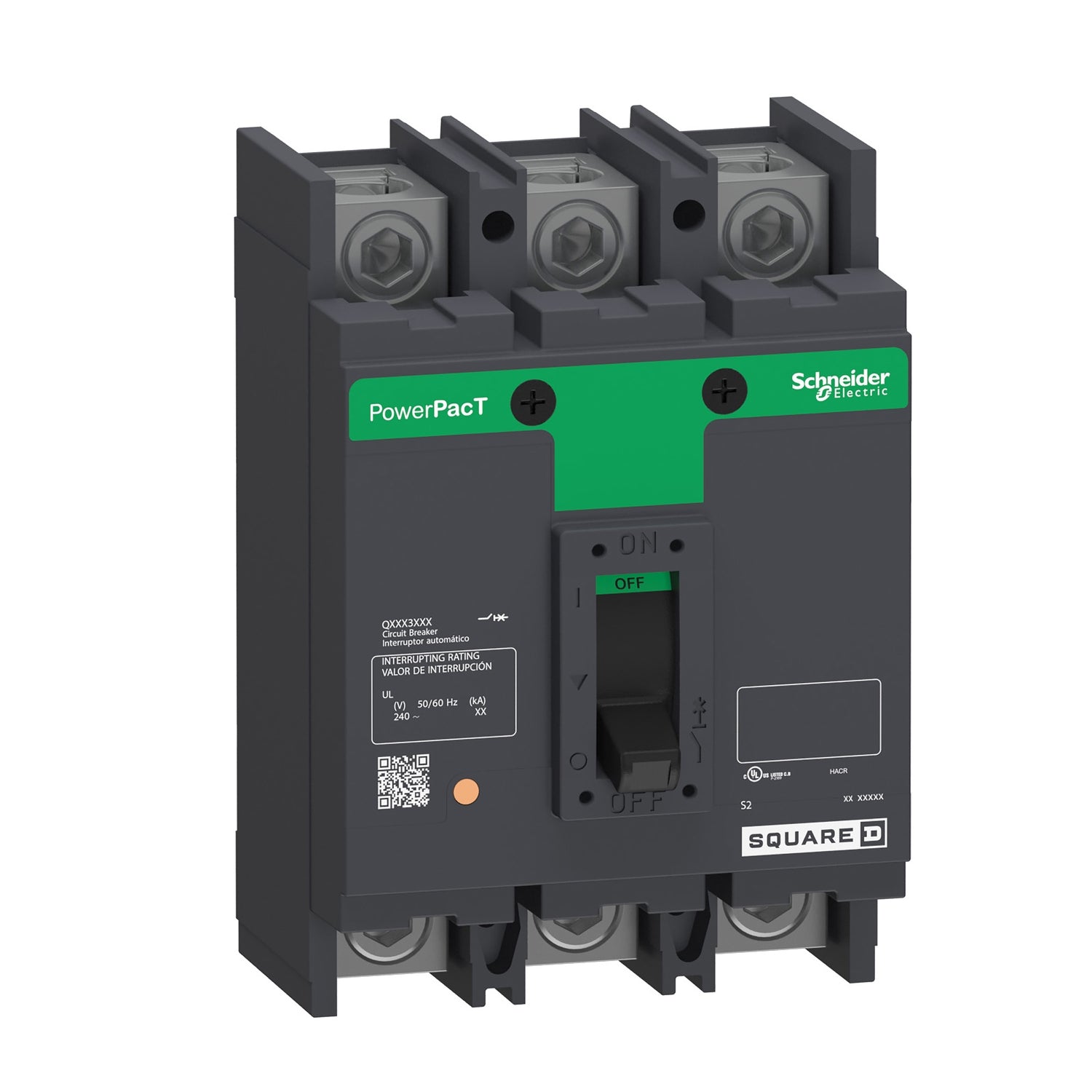

Product Description P/N: QGL32200
Description
The QGL32200 is a Circuit Breaker from the PowerPacT Q series, designed for overcurrent protection and switching on 240VAC systems. Operating at 240VAC operational voltage, it provides thermal magnetic trip protection. Available in 2 and 3-pole unit mount configurations, as well as I-Line constructions, PowerPacT Q circuit breakers offer versatility in installation.
Technical Specifications
|
Part # |
QGL32200 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
200 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
G |
|
[Ue] rated operational voltage |
240 V AC 50/60 Hz UL |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV UL |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2400 A |
|
Magnetic hold current |
1200 A |
|
Continuous current rating |
80 % |
|
Utilisation category |
Category A |
|
Local signalling |
1 trip indicator green |
|
Mounting mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Tightening torque |
247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil) |
|
Power wire stripping length |
0.87 in (22 mm) |
|
Height |
6.47 in (164.34 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
3.93 in (99.82 mm) |
|
Circuit breaker application |
HACR rated |
Information About QGL32200
PowerPacT Q-Frame circuit breakers, exemplified by the QGL32200 model, serve the purpose of overcurrent protection and switching within 240VAC systems. These breakers are specifically engineered to operate under the nominal operational voltage of 240VAC while offering thermal magnetic trip protection. They are versatile, available in both 2 and 3-pole unit mount configurations as well as I-Line constructions.
All PowerPacT circuit breakers, including the Q-Frame series, feature an integral push-to-trip button integrated into the cover, enabling manual tripping when necessary. This specific model, QGL32200, comes equipped with lugs on both the line and load sides for enhanced connectivity and ease of installation.
With a current rating of 200A and a 3-pole configuration, the QGL32200 breaker offers robust performance for a variety of applications. It boasts an impressive interrupting rating of 65kA at 208Y/120VAC and 240VAC, ensuring reliable protection against short circuits and overloads.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
