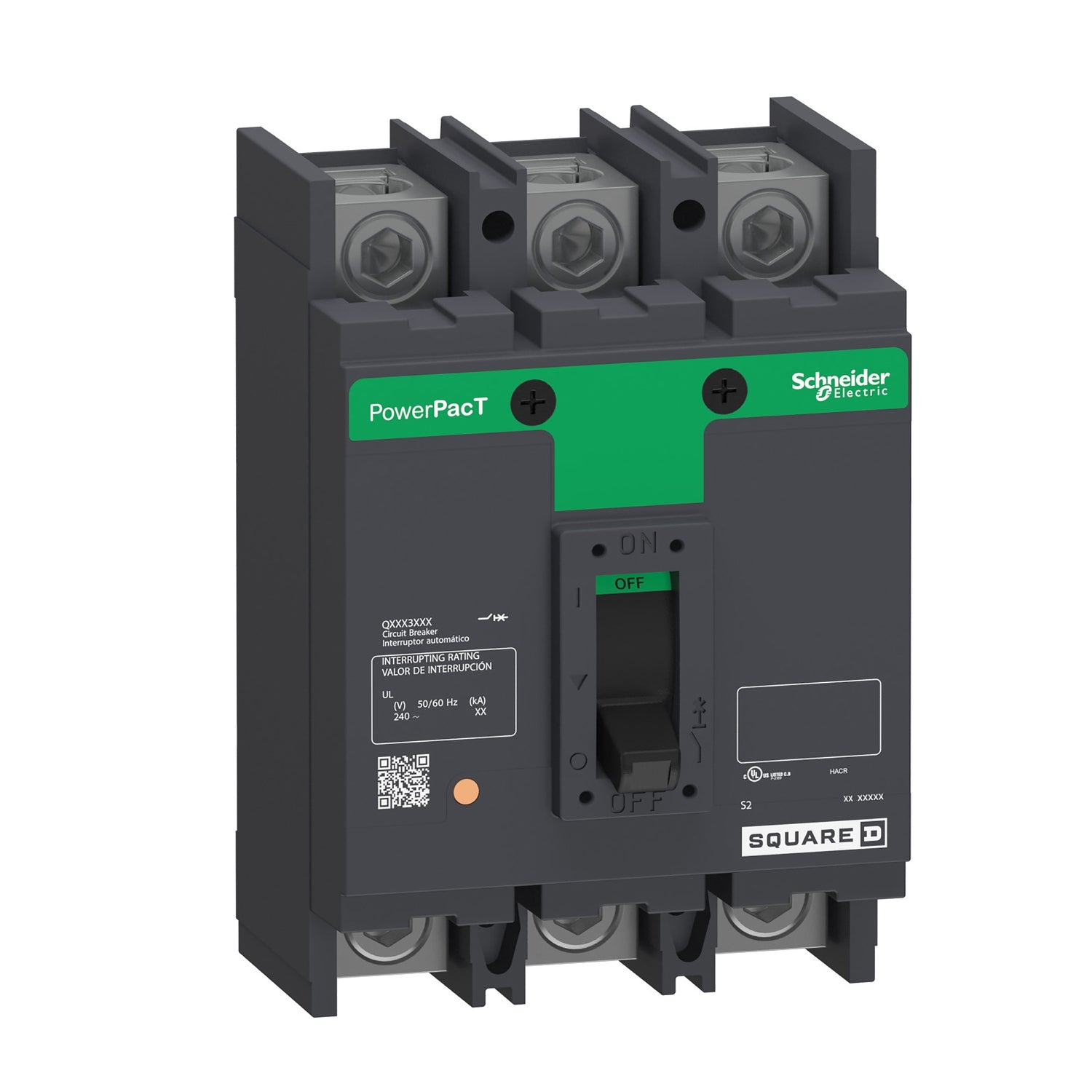

QGP32200TM | Schneider Electric Circuit Breaker
- Regular price
- $1,397.00
- Sale price
- $1,397.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QGP32200TM
Description
The QGP32200TM is a PowerPacT Q circuit breaker designed for electrical panels. It features a 200A capacity with three poles, suitable for 240VAC applications. This model offers a high interrupting capacity of 65kA, ensuring robust protection against electrical faults. It includes lugs for secure electrical connections and utilizes a thermal magnetic mechanism for effective circuit protection.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QGP32200TM |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Meter-Pak |
| Type | QGP |
| Voltage | 240 |
| Amperage | 200 |
| AIC Rating | 65kA@240V |
| Phase | 3 |
| Functions | LI - Long-Time and Instantaneous |
| Protection | Thermal Magnetic |
| Poles | 3 |
| Connection | Bolt-On |
Information About QGP32200TM
The QGP32200TM is a Schneider Electric circuit breaker belonging to the Meter-Pak family, specifically the QGP type. It operates at a voltage of 240V and has a current rating of 200A, making it suitable for medium to high-power applications. With an impressive AIC (Ampere Interrupting Capacity) rating of 65kA at 240V, this circuit breaker provides robust protection against short circuits and electrical faults.
Designed for three-phase systems, the QGP32200TM incorporates both Long-Time (LI) and Instantaneous (I) trip functions. This ensures it can handle both sustained overloads and quick-reacting faults, enhancing the safety and reliability of electrical distribution.
The breaker utilizes a thermal magnetic protection mechanism, combining the benefits of thermal elements for overload protection and magnetic elements for instantaneous trip in response to short circuits. This dual-function approach helps safeguard equipment and personnel from electrical hazards effectively.
Installation is facilitated through a bolt-on connection type, ensuring secure and reliable attachment to electrical panels or distribution boards. This design feature enhances ease of installation and maintenance, reducing downtime and operational disruptions.
In summary, the QGP32200TM circuit breaker from Schneider Electric is a robust and versatile solution for 240V, 200A applications, offering high fault protection capability, dual trip functions, and reliable bolt-on connectivity for efficient electrical system management.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
