QHB120 | Schneider Electric Mini Circuit Breaker
- Regular price
- $64.00
- Sale price
- $64.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

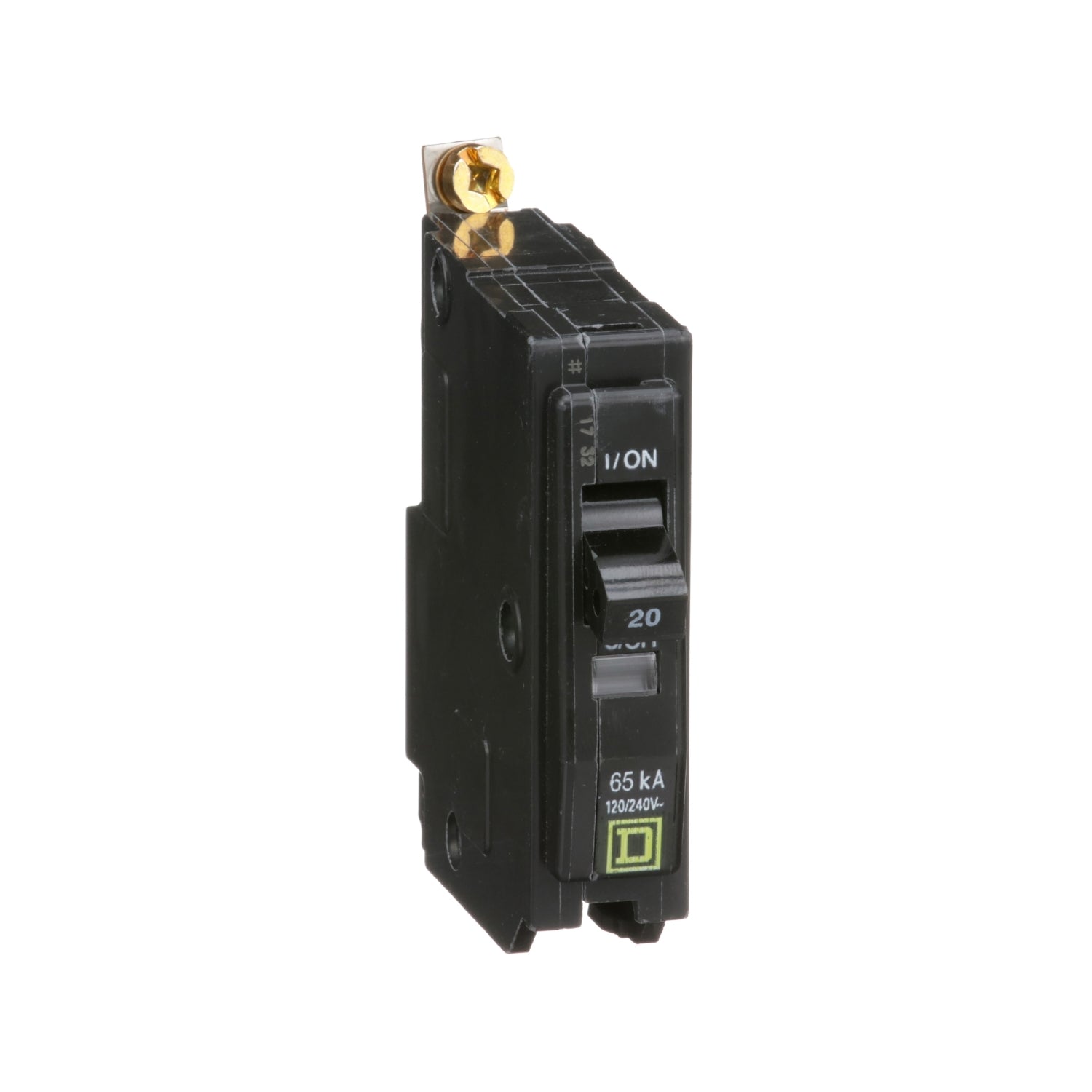

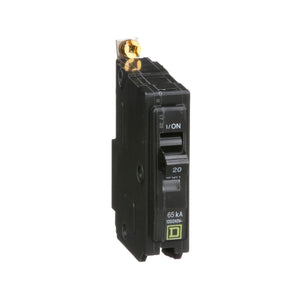

Product Description P/N: QHB120
Description
The QHB120 is a Mini Circuit Breaker designed for QO series, featuring a 20A rating for 1 pole at 120/240VAC. It provides overcurrent protection and switching on both AC and DC systems. Equipped with an over-center, trip-free toggle mechanism, it ensures quick make, quick break action with positive handle indication.
Technical Specifications
|
Part # |
QHB120 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker Product |
|
Range |
QO |
|
Current Rating |
20 A |
|
Voltage Rating |
120/240 V AC |
|
|
120 V AC |
|
Mounting Type |
Bolt-on |
|
Number of Poles |
1P |
|
Circuit Breaker Type |
Standard |
|
Ratings |
HACR and Switching Duty rated |
|
Electrical Connection |
Pressure plate |
|
Number of Panel Spaces |
1 |
|
Wire Size |
AWG 14...AWG 8 copper or aluminium |
|
Tightening Torque |
40.71 lbf.in (4.6 N.m) |
|
Height |
2.99 in (76 mm) |
|
Width |
0.75 in (19 mm) |
|
Depth |
2.91 in (74 mm) |
|
Net Weight |
0.33 lb(US) (0.150 kg) |
Information About QHB120
QHB120 is a miniature circuit breaker designed to provide overcurrent protection and switching on both AC and DC systems. It belongs to the QO series of circuit breakers, which includes one, two, and three-pole configurations. These circuit breakers feature a thermal magnetic mechanism with an over-center, trip-free toggle design, ensuring quick make and quick break action. They also come with a positive handle indication for easy monitoring.
An essential feature of QHB120 and other QO circuit breakers is the VisiTrip trip indication, which visually signals when the circuit breaker has tripped and interrupted the circuit. Additionally, a wide range of factory-installed accessories is available, including shunt trips, auxiliary switches, and alarm switches, providing enhanced functionality and customization options.
This specific QHB120 circuit breaker is a single-pole unit rated at 20A and operates at voltages of 120/240VAC. It offers a substantial breaking capacity of 65kA, ensuring reliable protection against short circuits and overloads. The bolt-on mounting mechanism simplifies installation and enhances stability.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
