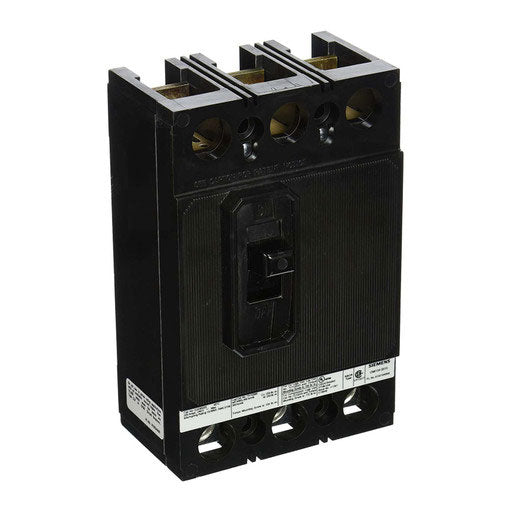

QJ23B110 | Siemens 3-Pole 110A 240V Molded Case Circuit Breaker
- Regular price
- $959.00
- Sale price
- $959.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QJ23B110
Description
The Siemens QJ23B110 is a 3-pole molded case circuit breaker designed for reliable protection of electrical systems up to 240 VAC. Rated at 110 amps, it provides dependable overload and short-circuit protection using a thermal magnetic trip mechanism. Its bolt-on connection design ensures secure installation in commercial and light industrial electrical panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | QJ23B110 |
| Subcategory | Molded Case |
| Series | QJ Frame |
| Type | QJ2 |
| Voltage Rating | 240 VAC |
| Amperage Rating | 110 A |
| Poles | 3 |
| Phase | 3 |
| Interrupting Capacity (AIC) | 10 kA @ 240V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Terminal Type | Load Side Lug |
| Wire Size (Copper) | 6 AWG to 300 kcmil |
| Wire Size (Aluminum) | 4 AWG to 300 kcmil |
| Temperature Rating | 40°C |
| Certifications | UL Listed, CSA Certified, RoHS Compliant |
| Country of Origin | Mexico |
| Weight | 4.25 lbs |
Information About QJ23B110
The QJ23B110 is part of the Siemens QJ Frame series, engineered for efficiency and safety in low-voltage distribution systems. It features a non-interchangeable QJ2 trip unit and offers long-time and instantaneous trip functions for balanced circuit protection. The breaker supports three-phase power systems and uses load-side lug terminals for simplified wiring. Built with a durable molded case enclosure, it provides consistent performance in both standard and demanding electrical environments.
Key Features:
- Amperage Rating: 110A continuous current handling capacity for stable circuit protection.
- Voltage Rating: Operates at 240 VAC, suitable for low-voltage power distribution.
- Trip Unit: Thermal magnetic trip mechanism for combined overload and short-circuit protection.
- Interrupting Capacity: Rated 10kA at 240V for dependable fault current interruption.
- Connection Type: Bolt-on terminals ensure secure and vibration-resistant mounting.
- Poles: 3-pole configuration compatible with three-phase power systems.
- Construction: Compact molded case design with load-side lugs installed.
- Certifications: UL Listed and CSA Certified for safety and compliance.
The QJ23B110 delivers the reliability and precision required for commercial and light industrial electrical protection applications.
Description
The Siemens QJ23B110 is a 3-pole molded case circuit breaker designed for reliable protection of electrical systems up to 240 VAC. Rated at 110 amps, it provides dependable overload and short-circuit protection using a thermal magnetic trip mechanism. Its bolt-on connection design ensures secure installation in commercial and light industrial electrical panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | QJ23B110 |
| Subcategory | Molded Case |
| Series | QJ Frame |
| Type | QJ2 |
| Voltage Rating | 240 VAC |
| Amperage Rating | 110 A |
| Poles | 3 |
| Phase | 3 |
| Interrupting Capacity (AIC) | 10 kA @ 240V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Terminal Type | Load Side Lug |
| Wire Size (Copper) | 6 AWG to 300 kcmil |
| Wire Size (Aluminum) | 4 AWG to 300 kcmil |
| Temperature Rating | 40°C |
| Certifications | UL Listed, CSA Certified, RoHS Compliant |
| Country of Origin | Mexico |
| Weight | 4.25 lbs |
Information About QJ23B110
The QJ23B110 is part of the Siemens QJ Frame series, engineered for efficiency and safety in low-voltage distribution systems. It features a non-interchangeable QJ2 trip unit and offers long-time and instantaneous trip functions for balanced circuit protection. The breaker supports three-phase power systems and uses load-side lug terminals for simplified wiring. Built with a durable molded case enclosure, it provides consistent performance in both standard and demanding electrical environments.
Key Features:
- Amperage Rating: 110A continuous current handling capacity for stable circuit protection.
- Voltage Rating: Operates at 240 VAC, suitable for low-voltage power distribution.
- Trip Unit: Thermal magnetic trip mechanism for combined overload and short-circuit protection.
- Interrupting Capacity: Rated 10kA at 240V for dependable fault current interruption.
- Connection Type: Bolt-on terminals ensure secure and vibration-resistant mounting.
- Poles: 3-pole configuration compatible with three-phase power systems.
- Construction: Compact molded case design with load-side lugs installed.
- Certifications: UL Listed and CSA Certified for safety and compliance.
The QJ23B110 delivers the reliability and precision required for commercial and light industrial electrical protection applications.
