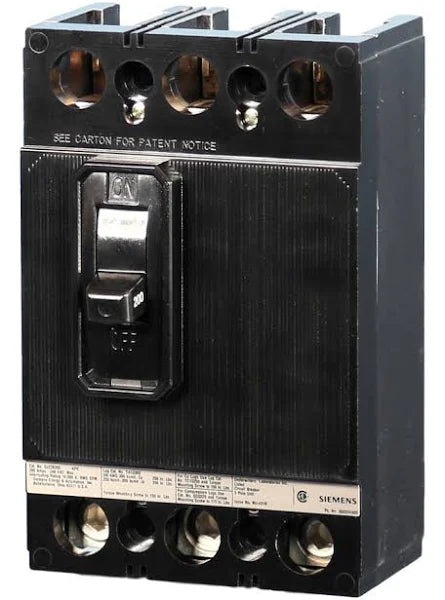

QJ23B200 | Siemens 3 Pole Circuit Breaker
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QJ23B200
Description
The Siemens QJ23B200 is a 3 Pole Circuit Breaker. It belongs to the QJ Frame series, specifically identified as type QJ2. This breaker is configured for three poles and three phases, with a current rating of 200A and an operational voltage of 240V. It features a standard interrupting capacity of 10kA at 240V. The breaker utilizes a bolt-on mounting method and is equipped with a non-interchangeable trip mechanism. It offers Long-Time and Instantaneous trip functions and includes load side lug terminals for electrical connections. The QJ23B200 is classified as a thermal magnetic molded case circuit breaker.
Technical Specifications
|
Part Number |
QJ23B200 |
|
Manufacturer |
Siemens / ITE |
|
Family |
QJ Frame |
|
Pole |
3 |
|
Amp |
200 |
|
Volt |
240 |
|
Phase |
3 |
|
Category |
Molded Case / 3-Pole |
|
Connection |
Bolt-On |
|
Type |
QJ2 |
|
Functions |
LI - Long-Time and Instantaneous |
|
Protection |
Thermal Magnetic |
|
AIC Ratings |
10kA@240V |
Information About QJ23B200
The Siemens QJ23B200 is a 3 Pole Circuit Breaker manufactured by Siemens. It belongs to the QJ Frame series and is identified as type QJ2. Configured for three poles and three phases, it has a current rating of 200A and operates at a voltage of 240V. The breaker features a standard interrupting capacity of 10kA at 240V, ensuring its ability to interrupt fault currents within specified parameters.
Utilizing a bolt-on connection method, the QJ23B200 is designed for secure and reliable installation. It comes complete with a non-interchangeable trip mechanism, enhancing safety by preventing the inadvertent substitution of trip units. The breaker incorporates both Long-Time (LI) and Instantaneous trip functions, providing comprehensive protection against overloads and short circuits.
Equipped with load side lug terminals, the QJ23B200 facilitates convenient electrical connections in various applications. Its thermal magnetic design ensures effective and efficient operation by combining the thermal and magnetic trip principles. As a molded case circuit breaker, it offers robust construction and reliable performance in demanding electrical environments.
Manufacturer information
Siemens: A renowned global manufacturer, leading in technology, engineering, and innovation across diverse sectors for a sustainable future.
