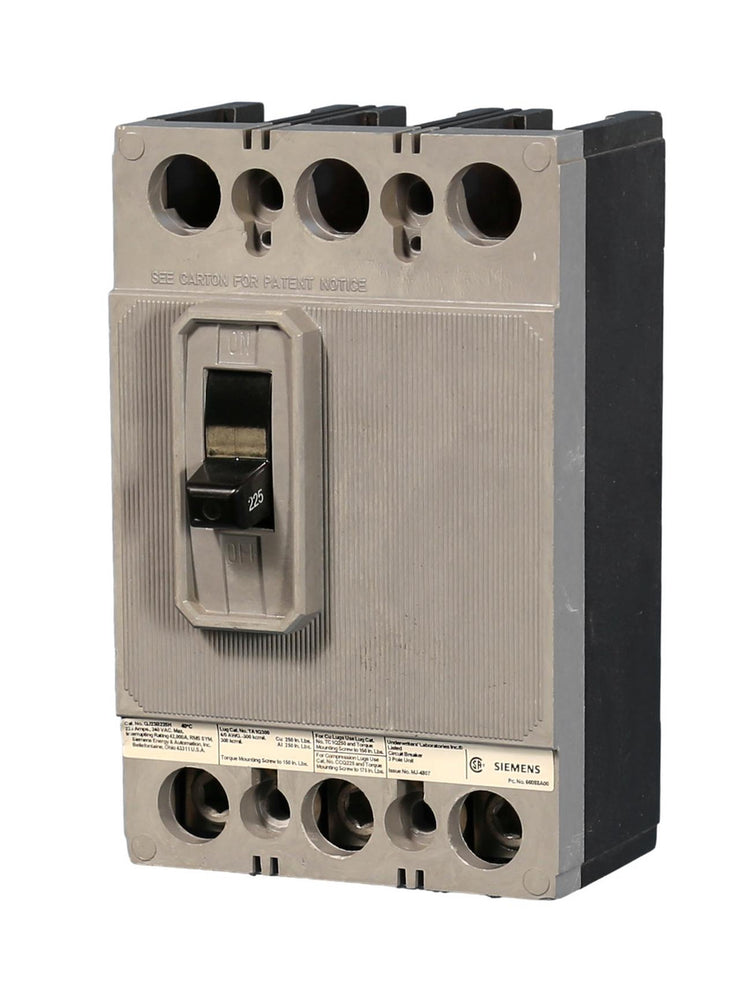

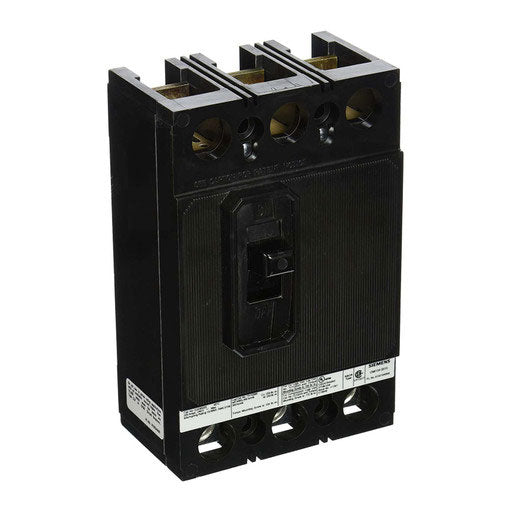

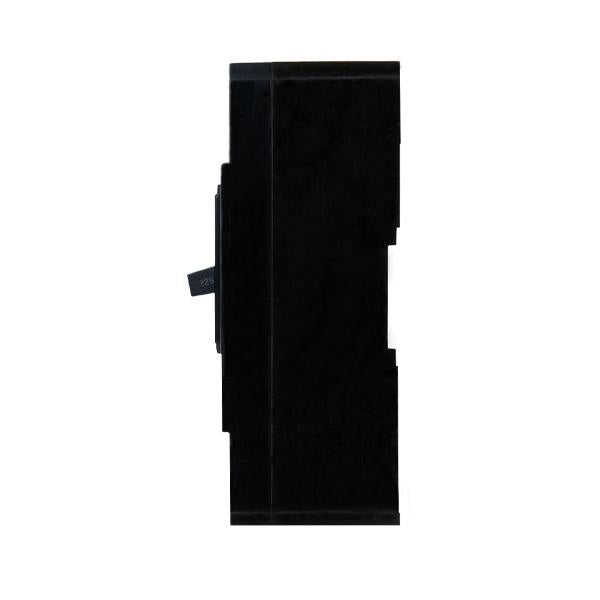

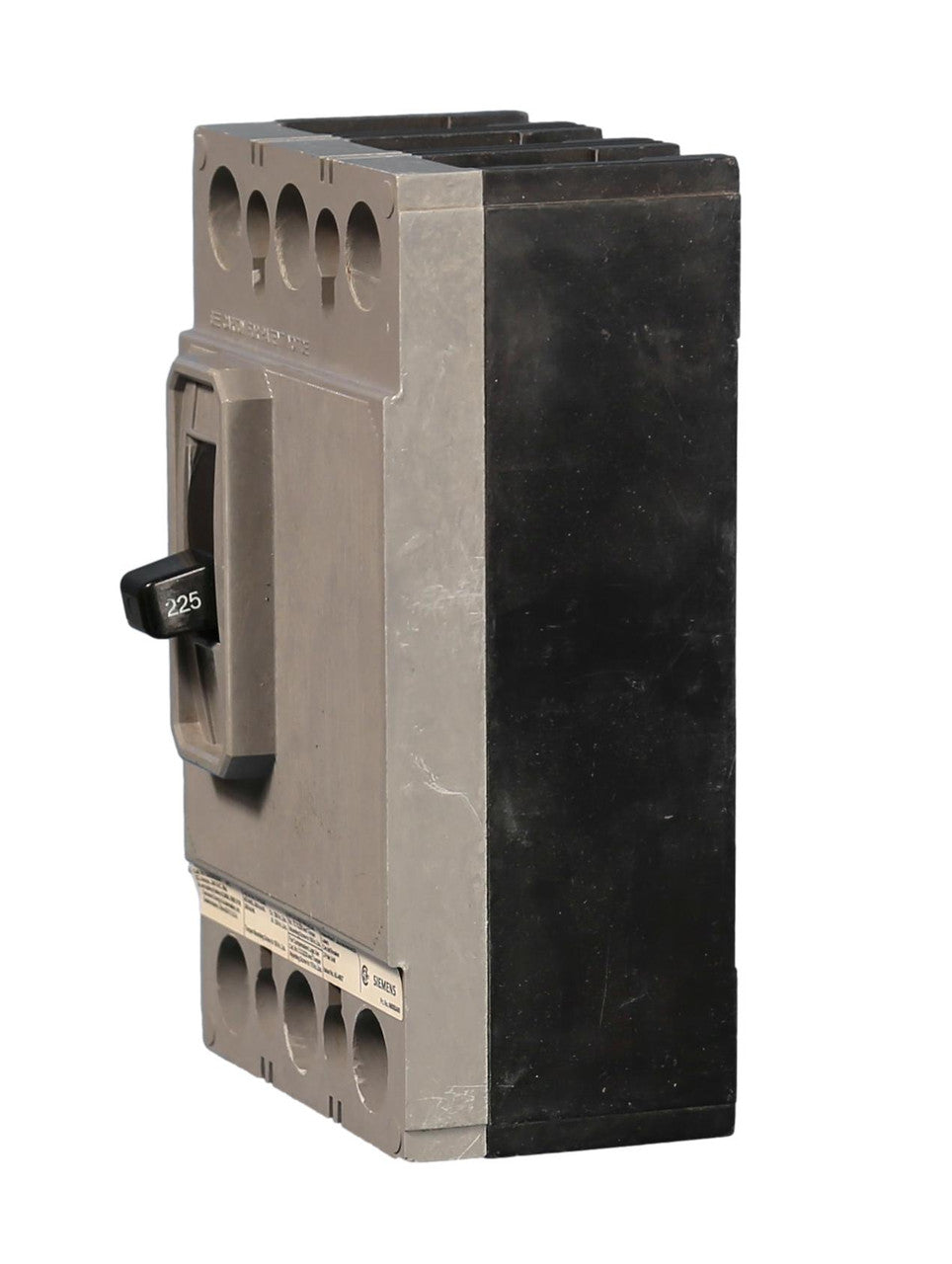

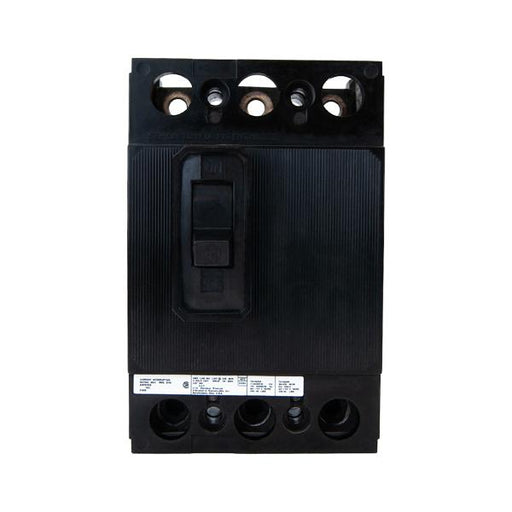

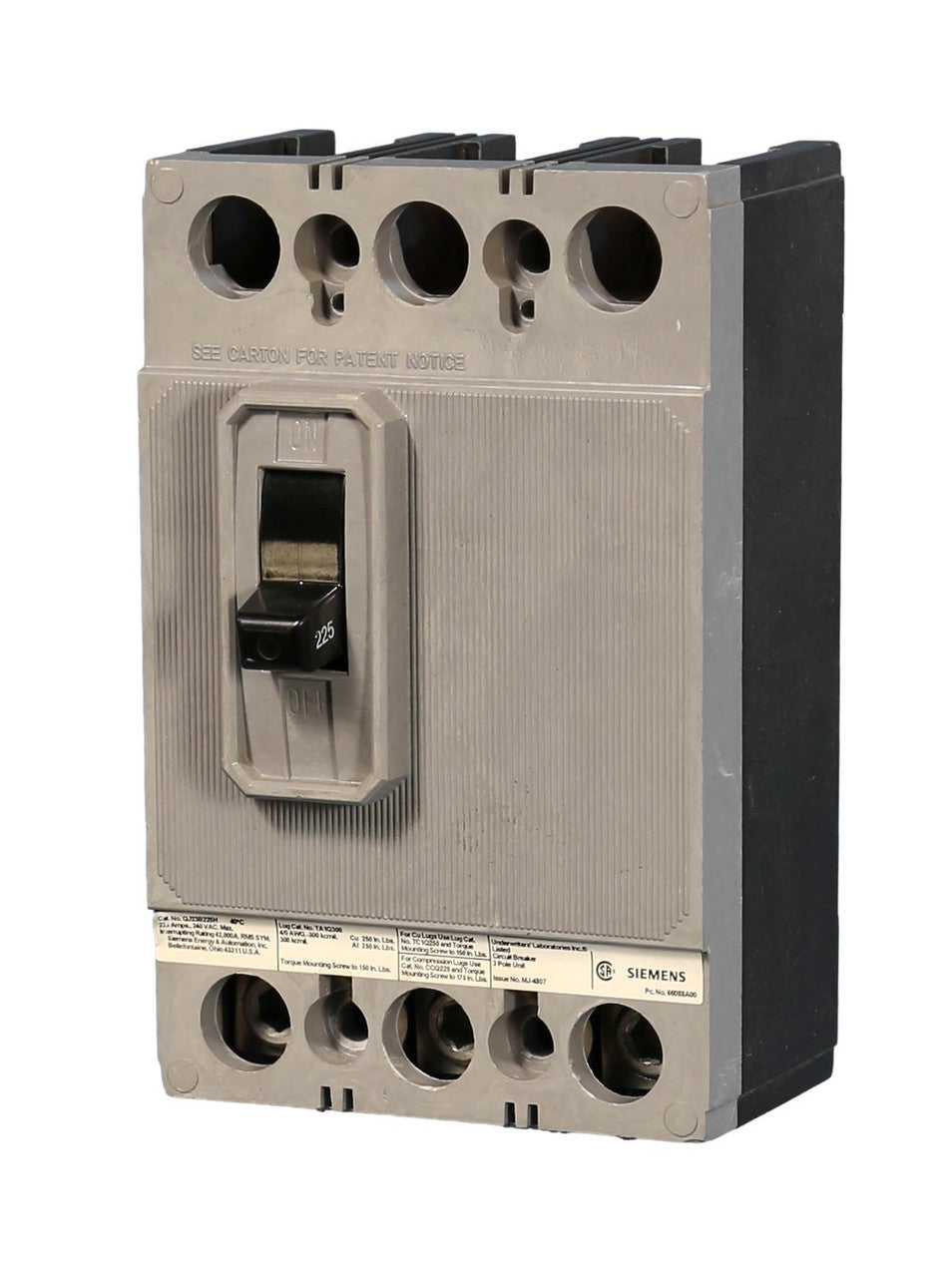

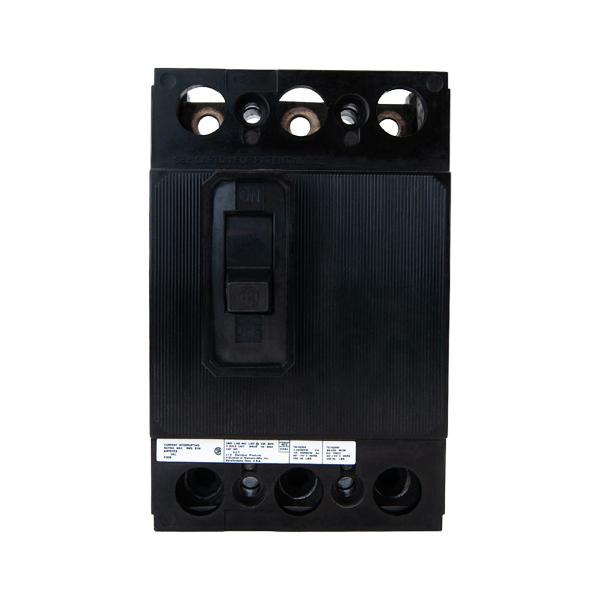

QJ23B200H | Siemens 3-Pole 200A 240V Molded Case Circuit Breaker
- Regular price
- $973.00
- Sale price
- $973.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QJ23B200H
Description
The Siemens QJ23B200H is a 3-pole molded case circuit breaker designed for high-capacity electrical distribution systems. With a 200-amp current rating and 240VAC voltage rating, it offers dependable overload and short-circuit protection. Built with a durable QJ Frame and thermal magnetic trip technology, the QJ23B200H ensures efficient performance in demanding commercial and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | QJ23B200H |
| Subcategory | Molded Case |
| Series | QJ Frame |
| Type | QJ2H |
| Voltage Rating | 240 VAC |
| Amperage Rating | 200 A |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 42kA @ 240V |
| Trip Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Terminal Type | Load Side Lug |
| Wire Size Range | 6 AWG–300 KCMIL (Cu), 4 AWG–300 KCMIL (Al) |
| Frame Size | QJ Frame |
| Standards | UL 489, CSA C22.2, RoHS Compliant |
| Frequency | 50/60 Hz |
| Country of Origin | Mexico |
| Dimensions (H x W x D) | 7 in x 4.5 in x 2.53 in |
| Weight | 4.58 lb |
Information About QJ23B200H
The QJ23B200H is part of Siemens’ QJ Frame molded case circuit breaker series, known for its rugged construction and high interrupting performance. It features a bolt-on connection and load-side lug terminals for secure and simple installation. The breaker uses thermal magnetic trip sensing with long-time and instantaneous trip functions, ensuring precise protection under varying load conditions. Meeting UL 489 and CSA C22.2 standards, it supports safe, code-compliant operation for 240V three-phase systems.
Key Features:
- High Interrupting Capacity: Rated at 42kA@240V for reliable fault current interruption.
- Rated Current: 200A maximum load capacity for large-scale power systems.
- Trip Mechanism: Thermal magnetic trip with long-time and instantaneous protection.
- Connection Type: Bolt-on connection for secure and durable installation.
- Terminal Range: Supports 6 AWG–300 KCMIL copper and 4 AWG–300 KCMIL aluminum wires.
- Frame Design: QJ Frame molded case ensures mechanical durability and compact structure.
- Certifications: UL 489 and CSA C22.2 approved for compliance with international safety standards.
- Frequency Rating: Operates efficiently at 50/60 Hz for versatile global applications.
The QJ23B200H delivers the reliability and precision required for high-demand power distribution systems in commercial and industrial facilities.
