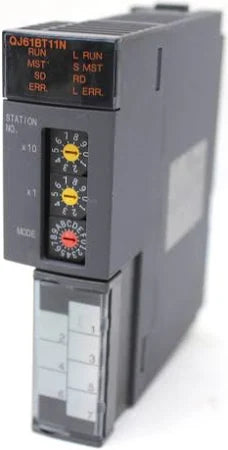

QJ61BT11N | Mitsubishi PLC Communication Unit
- Regular price
- $192.00
- Sale price
- $192.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QJ61BT11N
Description
The Mitsubishi QJ61BT11N is a compact and efficient PLC Q Series CC-Link Master/Local Module designed for seamless CC-Link Version 2 network integration. This communication interface allows for effective control and monitoring of industrial processes by enabling real-time data transmission between Q Series PLCs and CC-Link devices. It ensures reliable and fast data transfer, supporting up to four local stations, adhering to industry standards, and offering a maximum transmission speed of 10 Mbps.
Technical Specifications
| Brand | Mitsubishi |
| Part Number | QJ61BT11N |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Product series | MELSEC-Q Series (QnU) |
| Product Type | Communications unit |
| Functions | CC-Link V2 master unit |
| Communication protocol | CC-Link |
| Number of stations occupied | 1 to 4 stations (for local stations) |
| I/O point | 24 input; 16 output |
| Communication method | Broadcast polling method |
| Synchronous method | Frame synchronization method |
| Compliant | CE, UL/cUL, EAC, and UKCA |
| Dimension | Width 27,4 mm, a Height 98 mm, depth of 90 mm |
Information About QJ61BT11N
The Mitsubishi Electric QJ61BT11N is a CC-Link master/local module for the Q Series PLC, essential for industrial automation with CC-Link version 2 networks. It serves as a communication interface, enabling reliable and efficient data exchange between the Q series PLC and CC-Link devices. The module supports up to four local stations and employs broadcast polling and synchronous frame synchronization. It features 16 output points and 24 digital input points, which can read ON/OFF signals and control digital or analog outputs.
The QJ61BT11N is ideal for applications like manufacturing, process control, and automation systems requiring CC-Link connectivity. It supports real-time data interchange at transmission rates of 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, or 10 Mbps, with the rate determining the maximum cable length. Compact and lightweight, the module measures 27.4mm in width, 98mm in height, and 90mm in depth, and weighs only 0.12 kg, making it easy to install and integrate. It complies with CE, UL/cUL, EAC, and UKCA standards, ensuring reliability, safety, and industrial compliance. With a maximum transmission speed of 10 Mbps, it provides fast and secure data transfer.
Manufacturer information
Mitsubishi Electric Corporation, established in 1921, is a leading global manufacturer of electrical and electronic products. Renowned for innovation, it specializes in automation, energy, and electronic systems, contributing to advancements across various industries worldwide.
