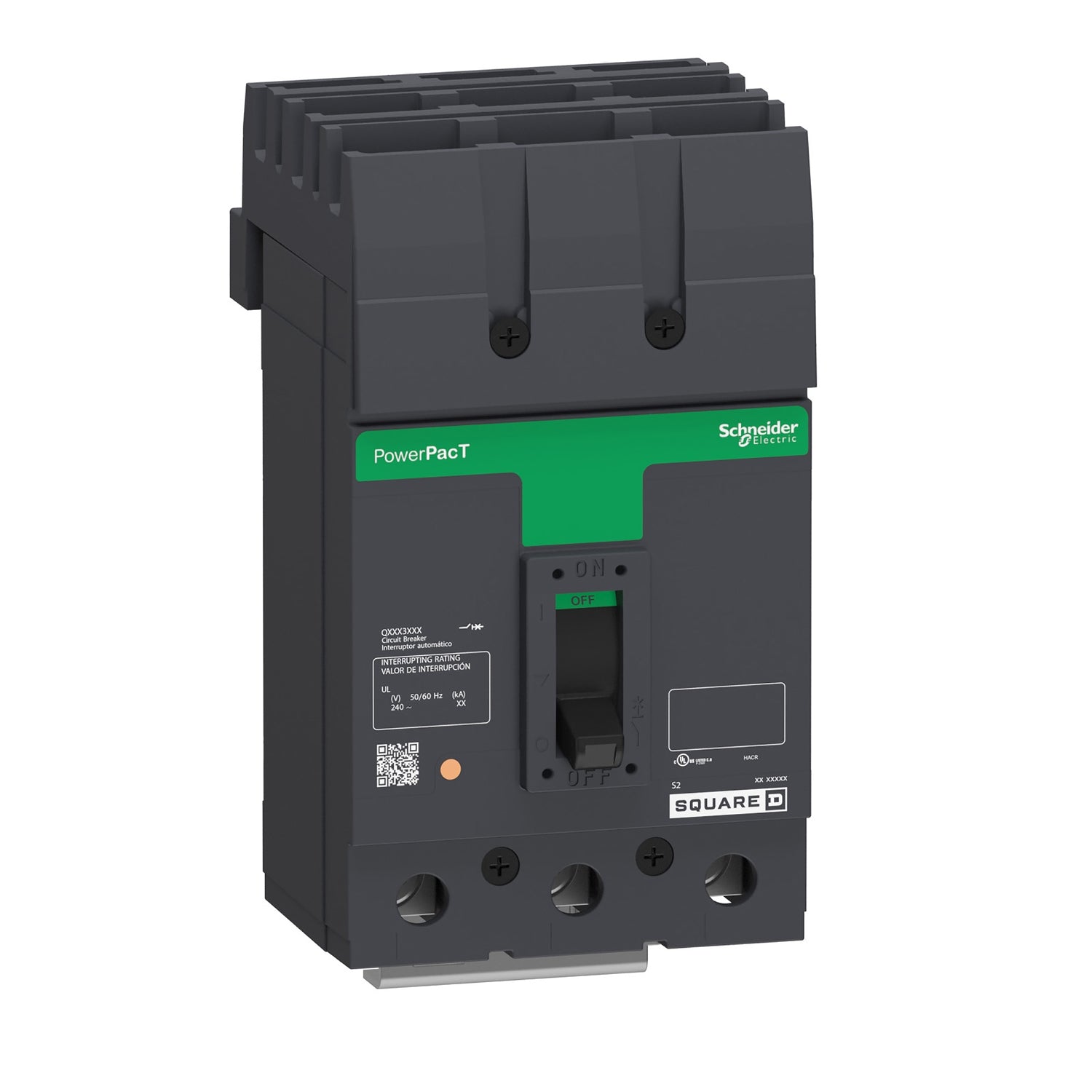

QJA32200 | Schneider Electric I-Line QJA 3-Pole 200A Current-Limiting Molded Case Circuit Breaker
- Regular price
- $1,985.00
- Sale price
- $1,985.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QJA32200
Description
The Schneider Electric QJA32200 is a three-pole molded case circuit breaker designed for high-fault-current three-phase distribution systems operating at 240 volts. It provides current-limiting thermal magnetic protection with long-time and instantaneous trip functions in I-Line panelboard applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | QJA32200 |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | QJA |
| Rated Voltage | 240 V |
| Rated Current | 200 A |
| Number of Poles | 3 |
| Phase | Three-phase |
| Frame Type | Q Frame |
| Interrupt Rating | 100 kA at 240 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Connection Type | I-Line Style Plug-In |
| Trip Unit | Basic Non-Interchangeable 1.0 |
| Current Limiting | Yes |
| Terminal Configuration | Load Side Lug Terminals |
Information About QJA32200
The QJA32200 is part of Schneider Electric’s I-Line circuit breaker family, developed for applications requiring very high interrupting capacity and current-limiting performance. It uses a Q-frame molded case construction that supports heavy-duty electrical distribution while maintaining a compact footprint. The breaker integrates a fixed thermal magnetic trip unit that delivers consistent long-time overload protection and instantaneous short-circuit response. This model is commonly installed in I-Line panelboards and switchboards where high available fault current and fast fault energy limitation are critical.
Key Features
- Three-pole molded case design: Ensures coordinated protection and simultaneous disconnection across all phases in three-phase systems.
- 200 amp continuous current rating: Supports feeder and high-load branch circuit applications.
- Current-limiting performance: Reduces let-through energy during short-circuit events to protect downstream equipment.
- Thermal magnetic LI protection: Provides reliable long-time overload protection and instantaneous fault interruption.
- Very high interrupting capacity: Rated at 100 kA at 240 V for applications with extreme available fault current.
- I-Line style plug-in connection: Enables fast, secure installation and simplified maintenance in I-Line panelboards.
- Q Frame construction: Designed for durability and stable performance in demanding commercial and industrial environments.
The QJA32200 delivers the reliability and precision required for protecting high-capacity three-phase electrical distribution systems in commercial and industrial I-Line installations.
