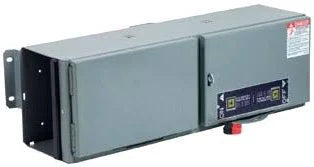

QMB367MW | Square D QMB Series 800A 3-pole 600V fusible panelboard switch
- Regular price
- $12,999.00
- Sale price
- $12,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QMB367MW
Description
The Square D QMB367MW is a fusible panelboard switch designed for high-current power distribution applications. Rated at 800 amps and 600 VAC, it supports three-phase operation and accepts Class R fuses for circuit protection. The QMB367MW is used in QMB E1 and E2 series panelboards and switchgear systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Electrical Products |
| Part Number | QMB367MW |
| Subcategory | Safety Switch |
| Product Type | Fuse-switch disconnector |
| Series | QMB Series E1–E2 |
| Number of Poles | 3 Pole |
| Rated Operational Voltage | 600 VAC |
| Line Rated Current | 800 A |
| Breaking Capacity | 200 kA @ 480 V |
| Fuse Type | Class R |
| Main Configuration | Single style main |
| Mounting Type | Panel mount |
| Standards | NEMA KS1 |
| Enclosure Rating | NEMA 1 (indoor) |
| Phase | Three-phase |
| Height | 15.00 in (381 mm) |
Information About QMB367MW
The QMB367MW is a fuse-switch disconnector from the Square D QMB Series E1–E2 product family. It is constructed for panel-mounted installation and serves as a main or feeder disconnect within panelboards and distribution equipment. The switch is designed to operate with Class R fuses, providing controlled isolation and overcurrent protection. It is typically installed in indoor electrical distribution systems where high interrupt capacity and reliable manual disconnect functionality are required.
Key Features:
- Fusible disconnect design: Combines switching and fuse-based overcurrent protection.
- High current capacity: Rated for 800 A continuous operation.
- Three-pole configuration: Supports three-phase electrical systems.
- Class R fuse compatibility: Allows use of high-performance current-limiting fuses.
- Panel-mounted construction: Designed for integration into QMB panelboards.
- High interrupt capability: Supports high fault current environments.
The QMB367MW delivers the reliability and precision required for high-capacity power distribution and safe circuit isolation in commercial and industrial electrical systems.
