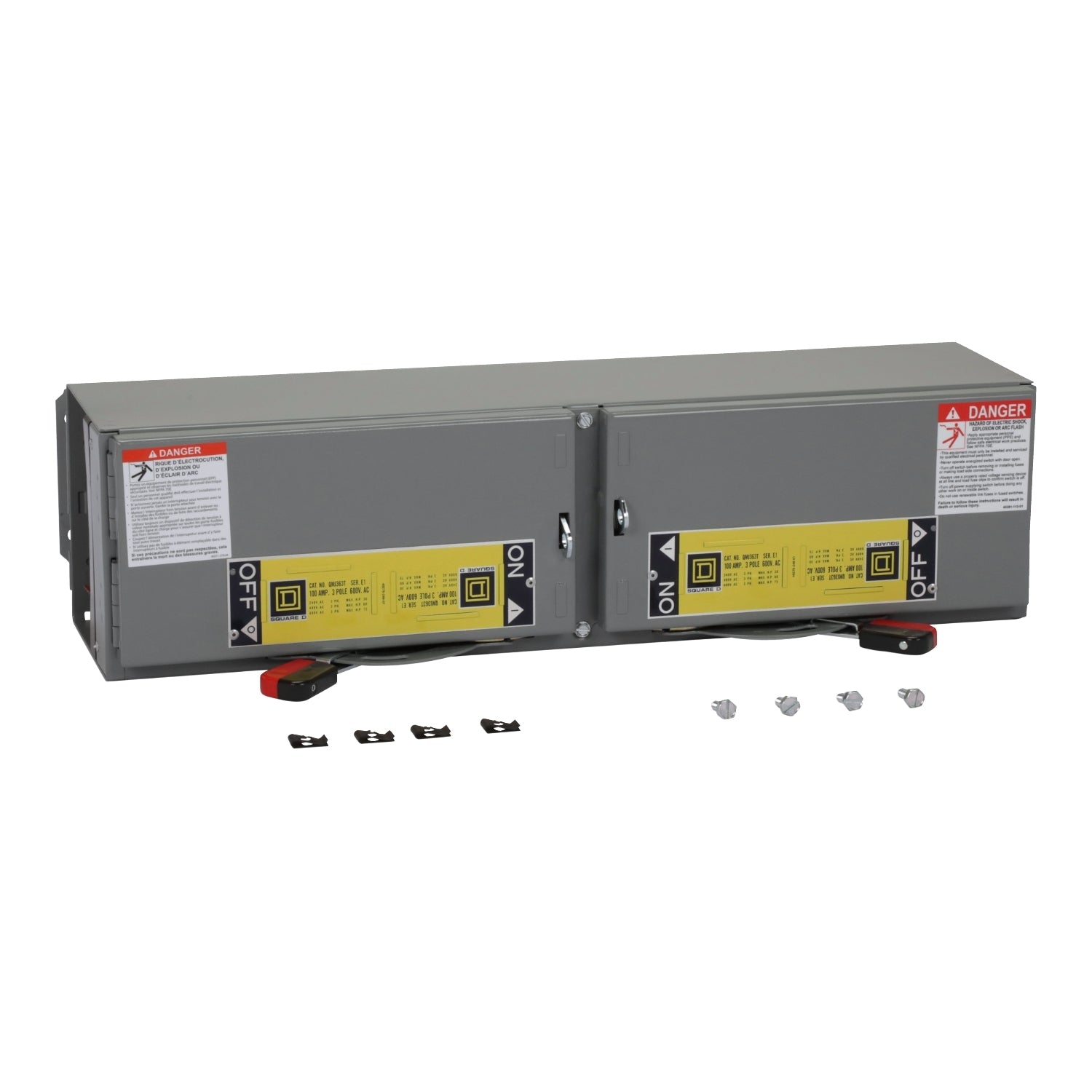

QMJ363T | Schneider Electric Fusible Switch
- Regular price
- $3,599.00
- Sale price
- $3,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QMJ363T
Description
The QMJ363T is a fusible switch from the QMJ series, designed for use with a current range from 100A to 60A. It operates at a voltage of 600VAC and features a 3-pole configuration, making it suitable for three-phase systems. This switch is rated for 15 horsepower and has a compact design with a 6-inch form factor, facilitating easy installation and integration into various electrical setups.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | QMJ363T |
| Category | Panel Accessories |
| Subcategory | Disconnect Switch |
| Family | QMB Series E1-E2 |
| Type | QMB |
| Voltage | 600 |
| Amperage | 100 |
| Configuration | Dual/Twin |
| Switch Style | Fusible |
| Suit Fuse | J |
| Phase | 3 |
| Poles | 3 |
| AIC Rating | 200kA@480V |
| Nema Rating | 1 |
Information About QMJ363T
The QMJ363T by Schneider Electric is a fusible switch from the QMB Series, specifically within the E1-E2 range. This switch is designed for high-voltage applications, supporting up to 600 volts. It has a current rating of 100 amperes, making it suitable for moderate power distribution needs. The QMJ363T features a dual/twin configuration, accommodating two switches in one unit, which enhances space efficiency and flexibility in design.
This switch employs a fusible style, meaning it uses fuses to provide overcurrent protection, ensuring safety and reliability in electrical systems. It is compatible with the Suit Fuse J type, which is essential for its operation. The device is designed for three-phase power systems and includes three poles, which is standard for three-phase applications.
With an AIC (Ampere Interrupting Capacity) rating of 200 kA at 480V, the QMJ363T can handle significant fault currents, providing robust protection in high-energy environments. Additionally, it has a NEMA (National Electrical Manufacturers Association) rating of 1, indicating it is suitable for indoor use in non-hazardous locations. This rating ensures protection against light dust, dirt, and physical contact.
Overall, the QMJ363T fusible switch offers reliable and efficient performance for high-voltage, three-phase power distribution systems, making it a valuable component in industrial and commercial electrical installations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
