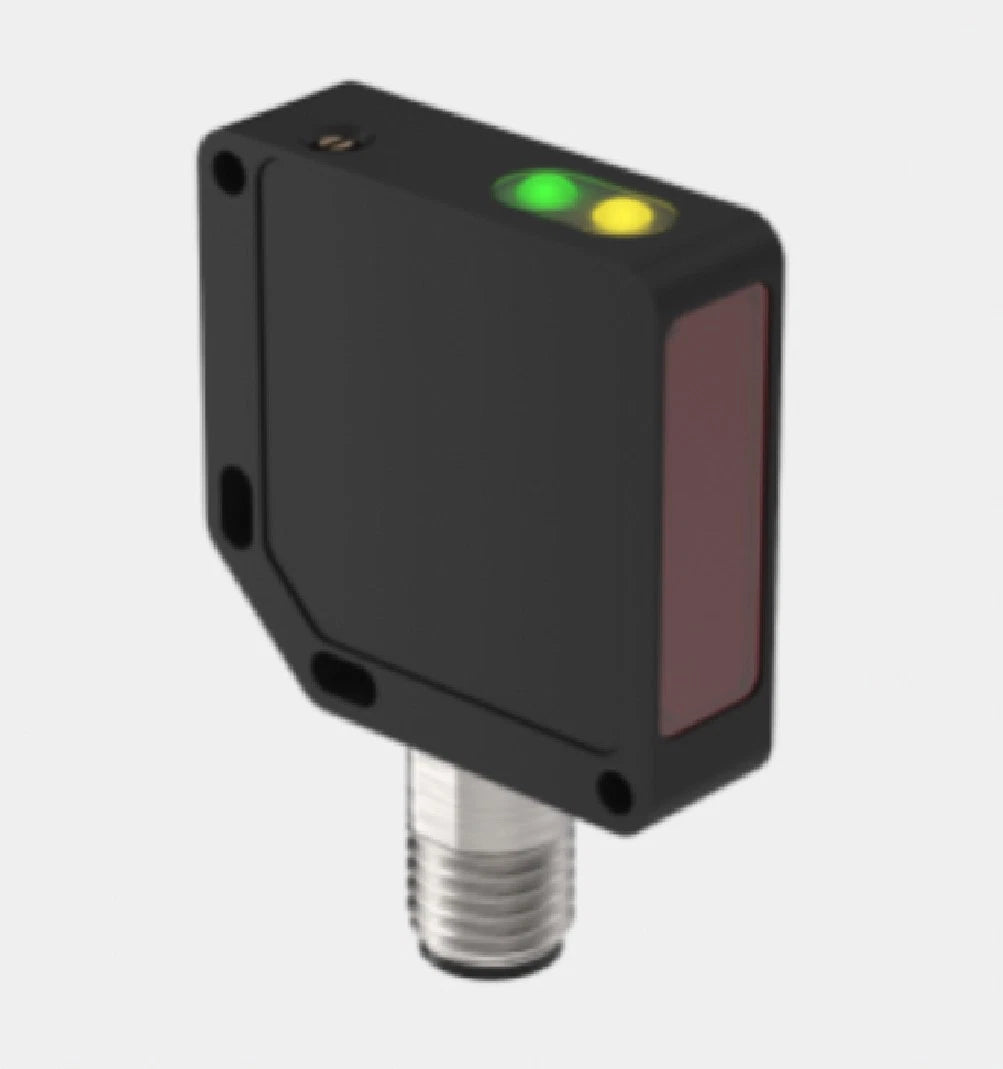

QMT42VN6AFV400Q | Banner Engineering Adjustable Field Photoelectric Sensor, 400 mm, NPN
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QMT42VN6AFV400Q
Description
The Banner Engineering QMT42VN6AFV400Q is an adjustable field photoelectric sensor designed for precise proximity detection with background suppression. It features a sensing cutoff adjustable from 125 mm to 400 mm and provides an NPN discrete output. The sensor operates on a 10–30 VDC supply and includes a 4-pin M12 quick-disconnect connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | QMT42VN6AFV400Q |
| Subcategory | Photoelectric |
| Series | QMT42 |
| Sensing Mode | Background Suppression (Adjustable Field) |
| Adjustable Cutoff Range | 125–400 mm |
| Maximum Sensing Distance | 400 mm |
| Light Source | Visible Red LED, 680 nm |
| Output Type | NPN |
| Output Rating | 100 mA max |
| Supply Voltage | 10–30 VDC |
| Supply Current | < 50 mA |
| Response Time | 1 ms |
| Repeatability | 250 µs |
| Connection Type | 4-pin M12 Integral QD |
| Housing Material | Zinc Alloy Die-Cast |
| Lens Material | Acrylic |
| Environmental Rating | IP67 |
| NEMA Rating | NEMA 6 |
| Operating Temperature | -20°C to +55°C |
| Turn-On Delay | 100 ms |
| Weight | 5.31 oz |
Information About QMT42VN6AFV400Q
The QMT42VN6AFV400Q is part of the Banner Engineering QMT42 Series adjustable field sensors, which use electronic background suppression technology to ignore objects beyond a defined sensing cutoff. The cutoff distance can be adjusted from 125 mm to 400 mm using a multi-turn potentiometer. It uses a visible red 680 nm LED light source and offers SPDT complementary solid-state switching in NPN configuration. The zinc die-cast housing with epoxy-encapsulated circuitry provides IP67 (NEMA 6) environmental protection for industrial environments.
Key Features:
-
Adjustable field sensing: Cutoff distance electronically adjustable from 125 to 400 mm.
-
Background suppression mode: Ignores reflective objects beyond the defined sensing field.
-
Visible red LED source: 680 nm wavelength for defined sensing alignment.
-
NPN output configuration: Solid-state switching for industrial control systems.
-
Fast response time: 1 ms switching speed for dynamic applications.
-
IP67 sealed housing: Die-cast zinc body with epoxy encapsulation.
-
M12 quick-disconnect connection: 4-pin Euro-style connector for simplified wiring.
The QMT42VN6AFV400Q delivers the reliability and precision required for adjustable-field industrial photoelectric sensing applications.
