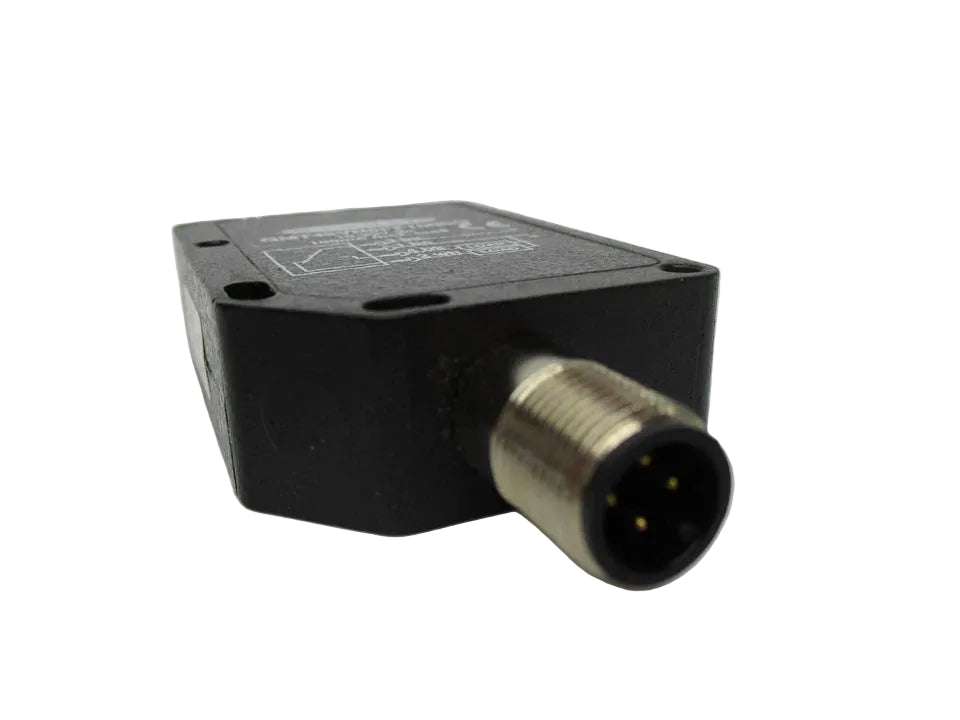

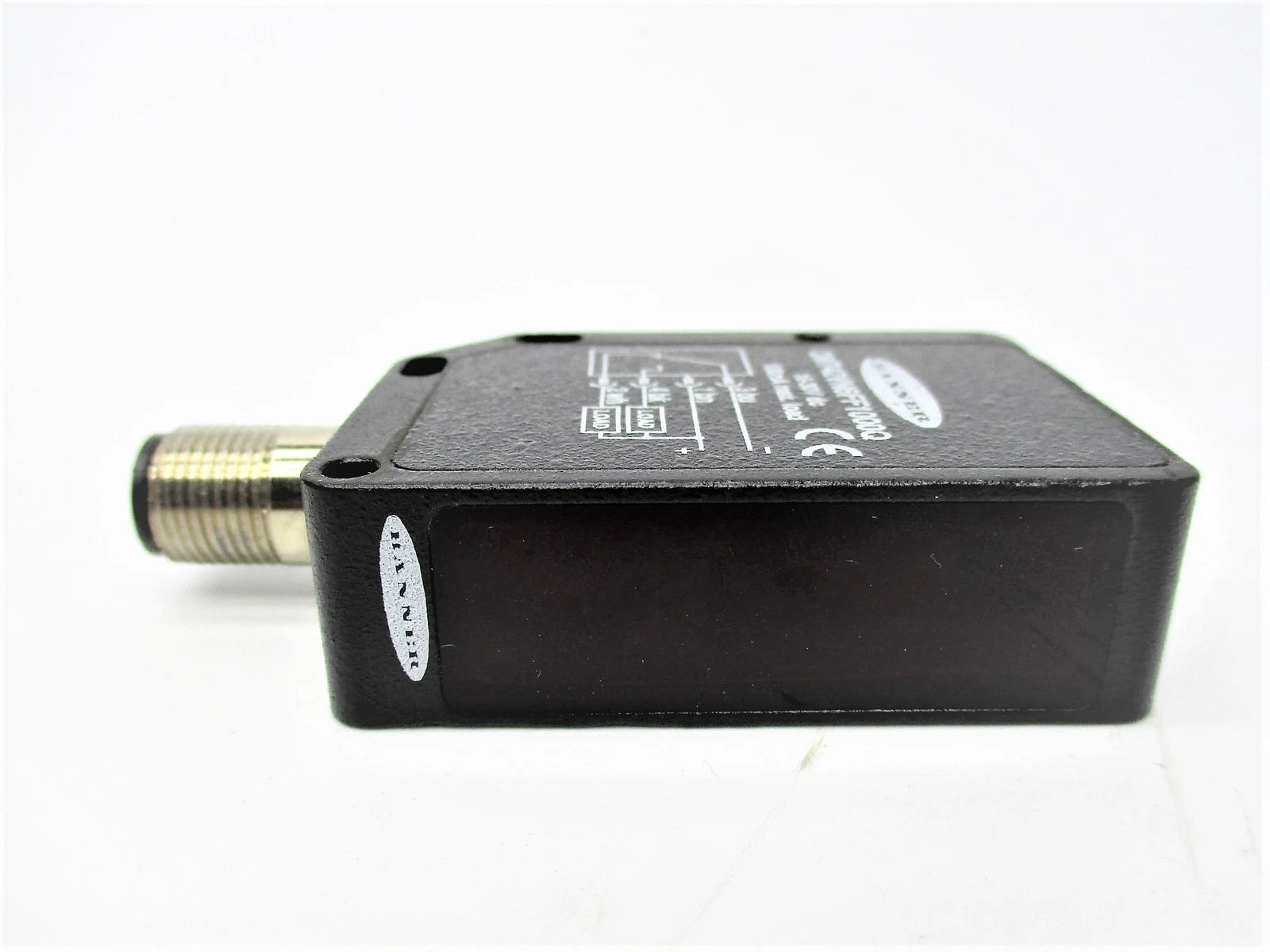

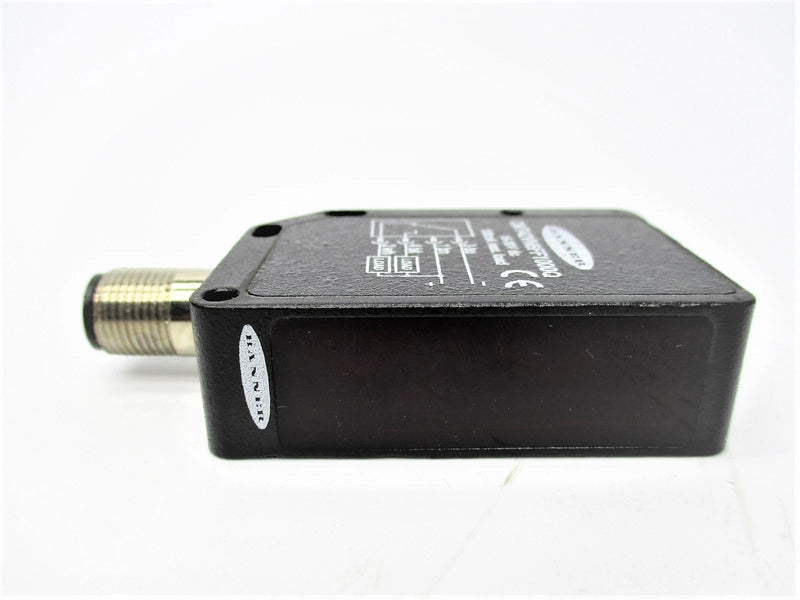

QMT42VN6FF1000Q | Banner Engineering Fixed-Field Photoelectric Sensor 1000 mm NPN IP67
- Regular price
- $362.00
- Sale price
- $362.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QMT42VN6FF1000Q
Description
The Banner Engineering QMT42VN6FF1000Q is a fixed-field photoelectric sensor designed for reliable object detection at a defined cutoff distance of 1000 mm. It uses background suppression technology to detect targets within range while ignoring reflective backgrounds. This sensor is well suited for industrial automation applications requiring stable sensing in harsh environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | QMT42VN6FF1000Q |
| Subcategory | Photoelectric Sensors |
| Sensing Method | Fixed-field reflective |
| Sensing Cutoff Distance | 1000 mm |
| Light Source | Infrared (880 nm) |
| Output Type | NPN (complementary) |
| Supply Voltage | 10–30 VDC |
| Response Time | 1 ms |
| Connection Type | 4-pin M12 quick-disconnect |
| Ingress Protection | IP67 |
| Operating Temperature | -20°C to +55°C |
| Housing Material | Die-cast zinc alloy |
| Weight | Approx. 0.2 kg |
Information About QMT42VN6FF1000Q
The QMT42VN6FF1000Q is a compact photoelectric sensor from Banner Engineering’s QMT42 fixed-field series. It features infrared sensing technology and a rugged zinc die-cast housing designed for industrial use. The sensor operates on a 10–30 VDC supply and provides an NPN discrete output via a 4-pin M12 quick-disconnect connector. Its fixed-field design ensures consistent detection performance even in applications with highly reflective or moving background objects.
Key Features:
-
Fixed-field sensing technology: Detects objects within a defined cutoff distance while ignoring backgrounds
-
Sensing range: Fixed cutoff at 1000 mm for consistent detection performance
-
Output configuration: NPN discrete output suitable for industrial control systems
-
Electrical protection: Reverse polarity and transient voltage protection
-
Rugged construction: Die-cast zinc housing rated IP67 for harsh environments
-
Visual indicators: Dual LEDs provide power, output, and overload status feedback
-
Quick-disconnect interface: 4-pin M12 connector simplifies installation and replacement
The QMT42VN6FF1000Q delivers the reliability and precision required for industrial object detection and automation systems.
